Values are subject to change without notice. Additional environmental information is available in the RI Site Preparation Guidelines document.
Size of RI8591A Cassini SPYDER Infrastructure:

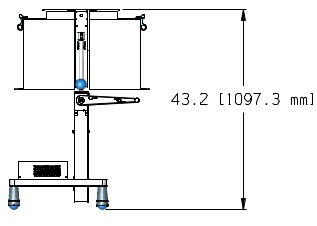

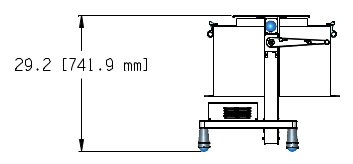

- Height Min/Max: 741.9/1097.3 mm (29.2/43.2 in.)

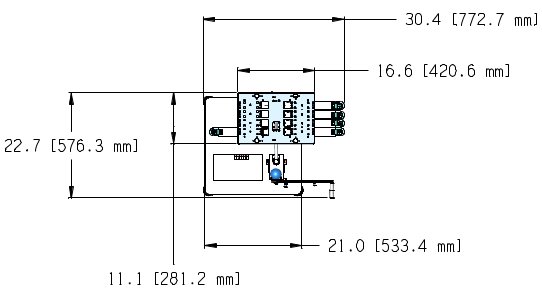

- Depth: 576.3 mm (22.7 in.)
- Width: 772.7 mm (30.4 in.) Includes TIMs
- System Weight: 79 Kg ( 174 lbs.) (8 TIMs)
- Typical/MAX Shipping Weight: 32/45 Kg (70/100 lbs.)

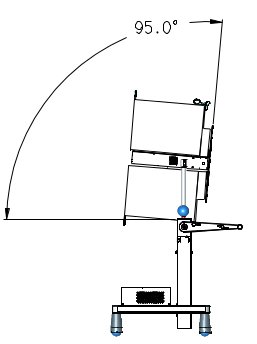

Docking Limits
Note: A Fixture adds 195.6 mm (7.7 in.) in height, including clearance for docking.
