DIB RF Launch, 40 GHz, MMPX SMT w/ Saddle Clamp
40 GHz or High Power DIB launch with mount support
Part Number: RIK0156A
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.

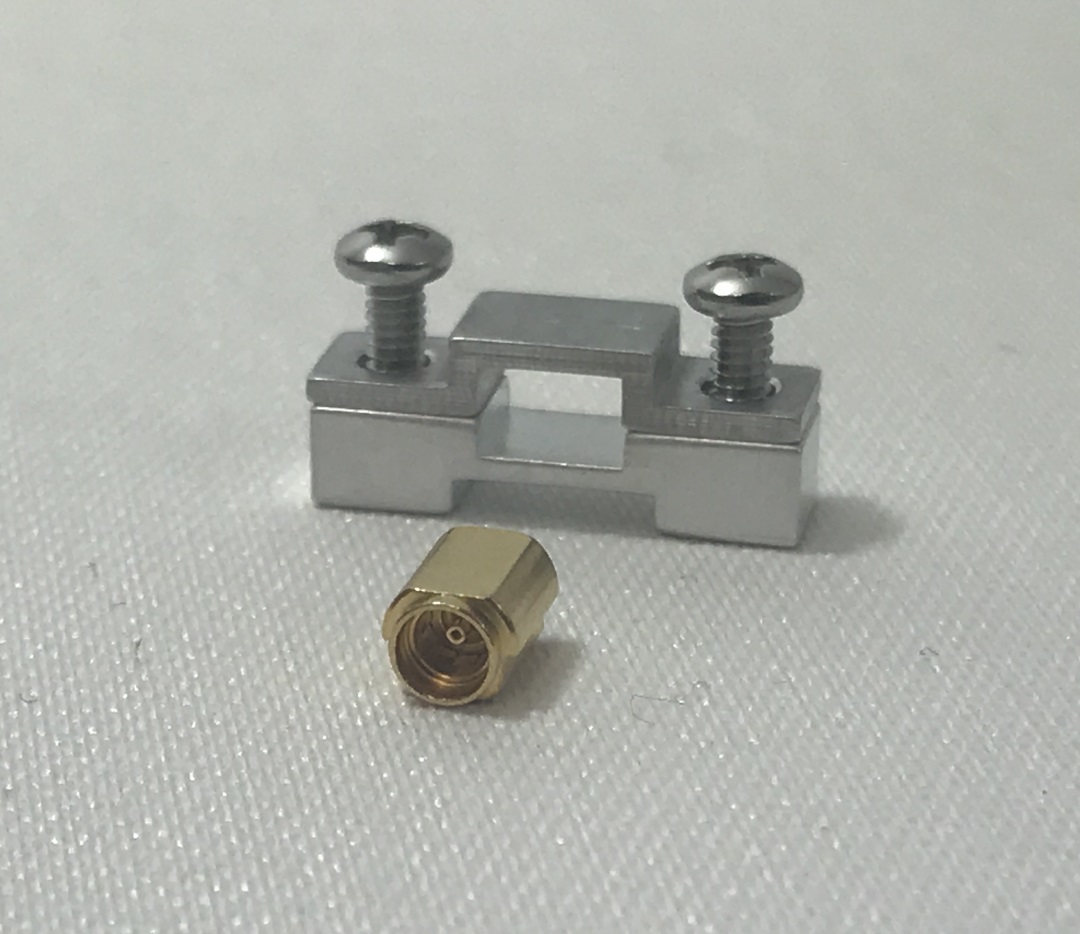

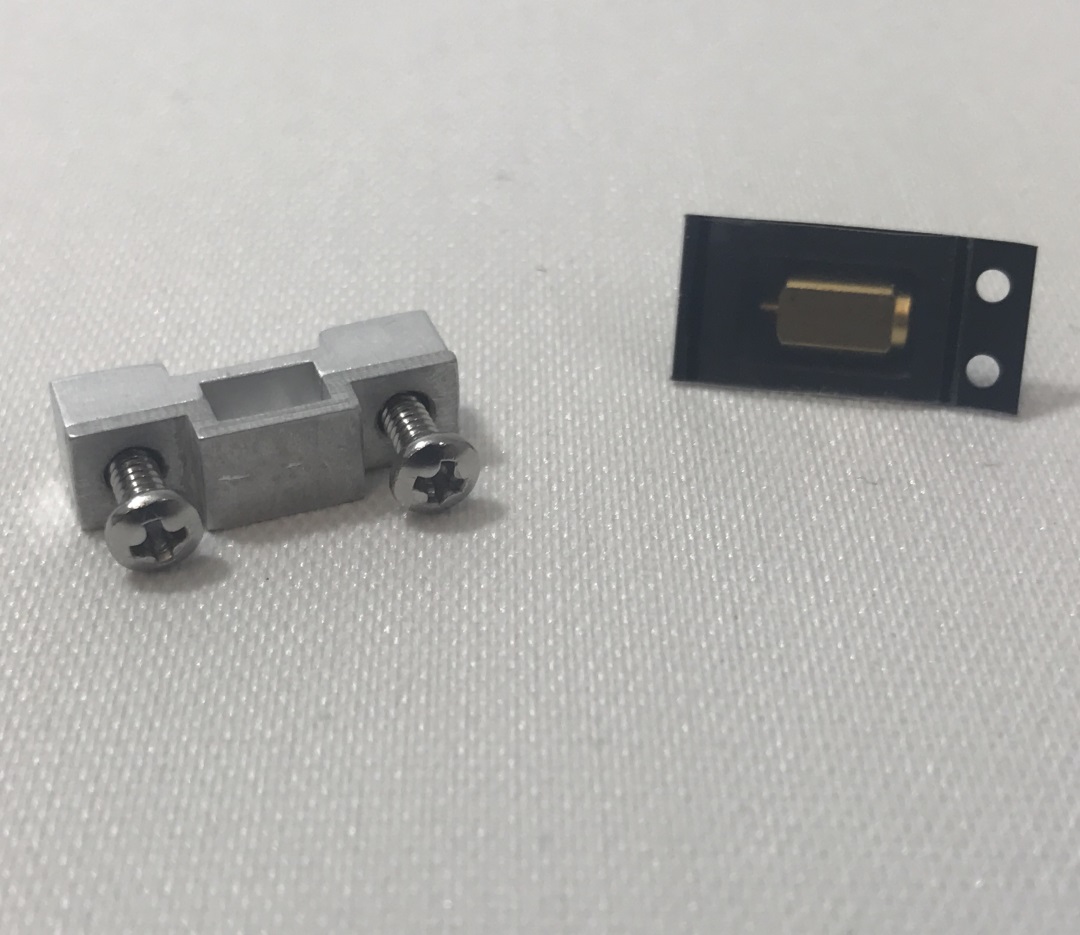

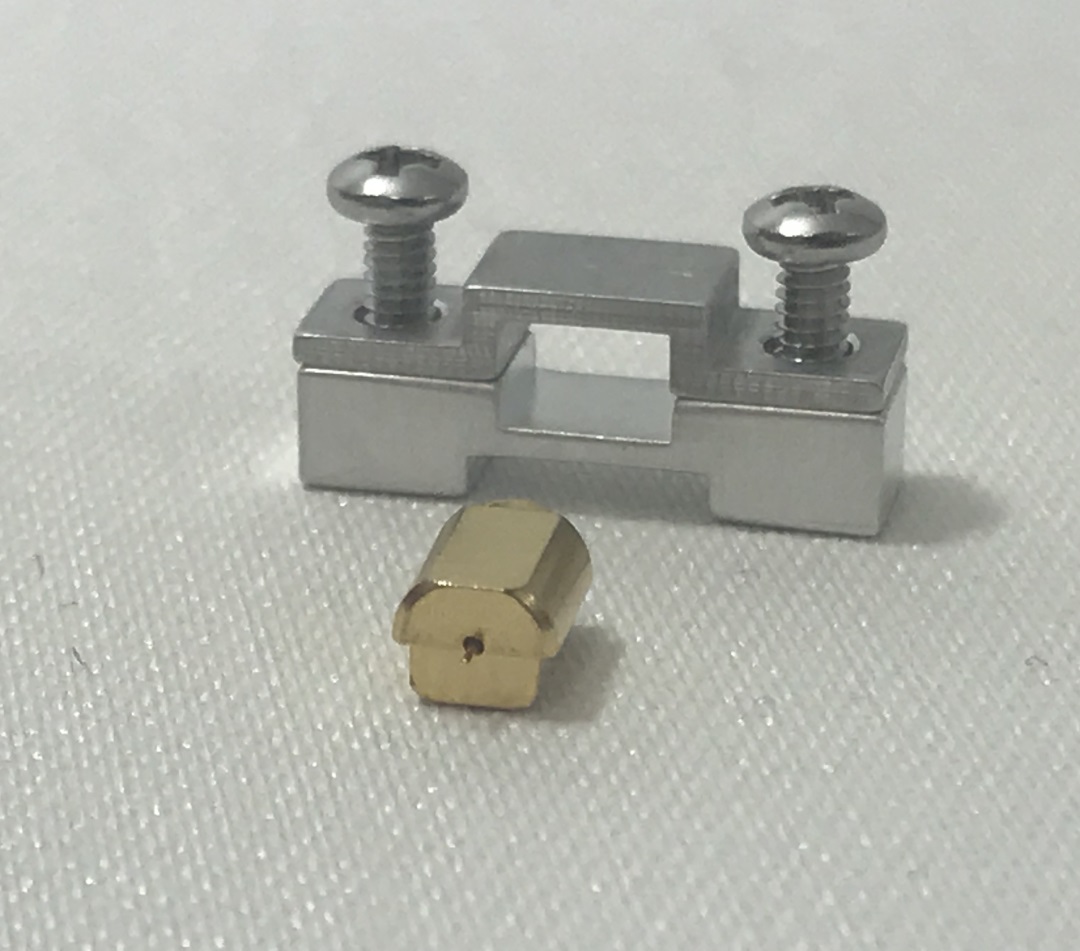

Use for each 40 GHz or High RF Power launch to the Device Interface Board (DIB). Includes mechanical support "saddle" used to hold the connector in line with the DIB.
Requires RIK0257A MMXP Extraction tool for disconnecting cable.
Related Documents:
 | Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout |
| Matrix Top Plate RF Interfaces |
92_MMPX-S50-0-1 PCB Layout92_MMPX-S50-0-1 PCB Layout | Questionnaire for PCB Layout Simulations to Huber+Suhner |

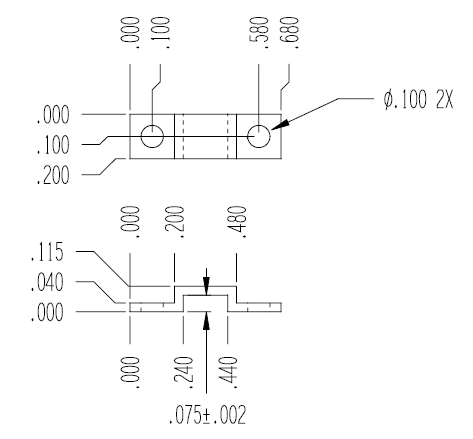

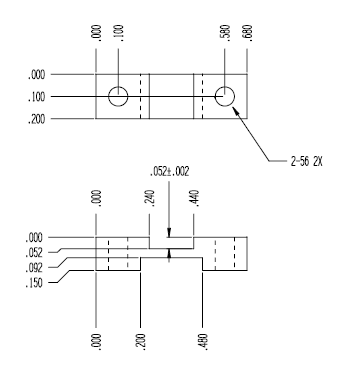

Clamp Drawings:

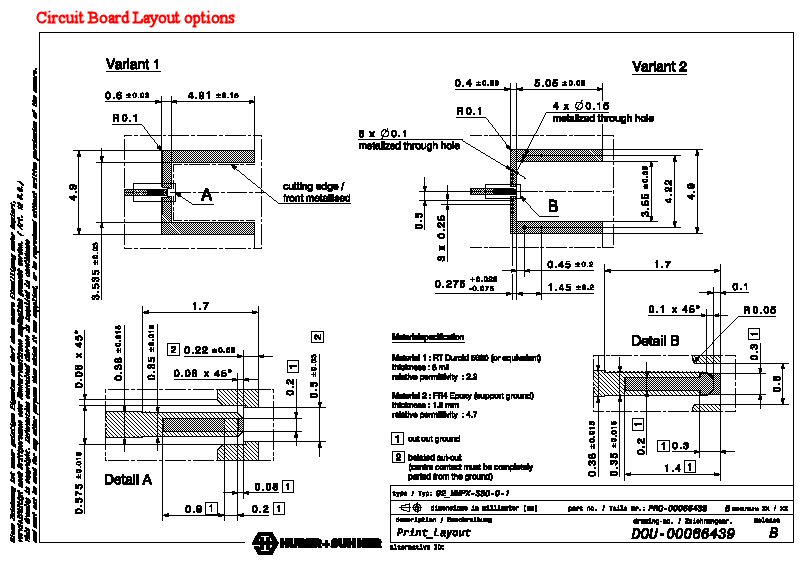

Surface mount MMPX layout requirements:
MMPX_SurfaceMount_Layout.jpg Drawings used to machine the TOP and BOTTOM supports. (includes detailed measurements needed for DIB layout)
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | C | EKVEYB1A | 1 | MMPX EDGE MOUNT PCB JACK 65GHZ | PcbCnnct | |
| 2 | A | M6JGVE1A | 2 | SCREW, PAN PHIL, 2-56 X 1/4", SS | Hrdwr | |

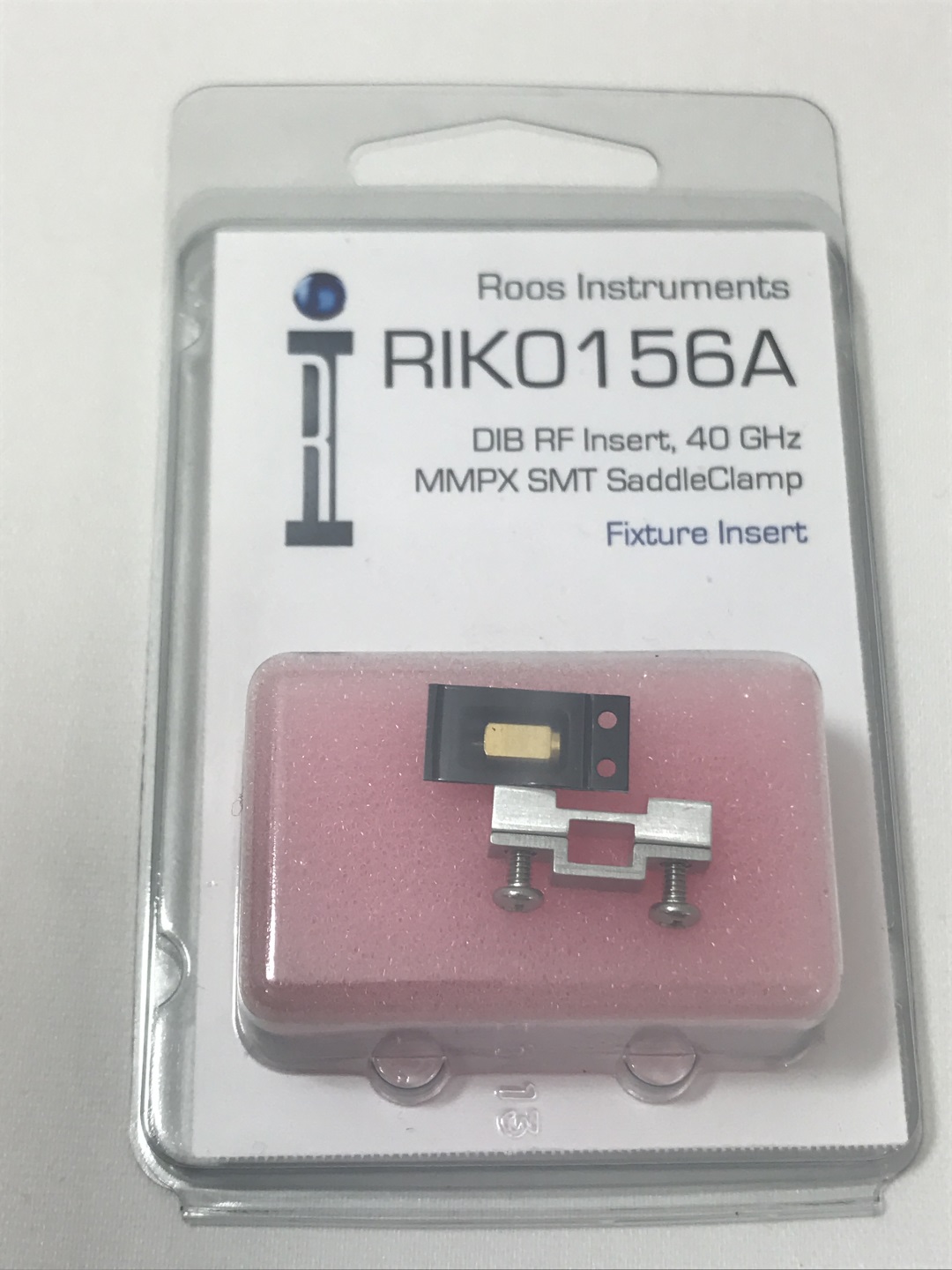

| 3 | B | MRSEF51A | 1 | Clam Shell Packaging Inside Cavity 1"X1.62"X 0.688DP | Sppls | |
| 4 | D | MRURAJ1A | 1 | Packaging Foam 3/4" Anti-Static for Clamshell Packaging, GR 5GCW7 | Sppls | |
| 5 | D | W1MFEUVA | 1 | SUPPORT MMPX TOP | MchFb | |
| 6 | D | W1MFEUWA | 1 | SUPPORT MMPX BOTTOM | MchFb |
