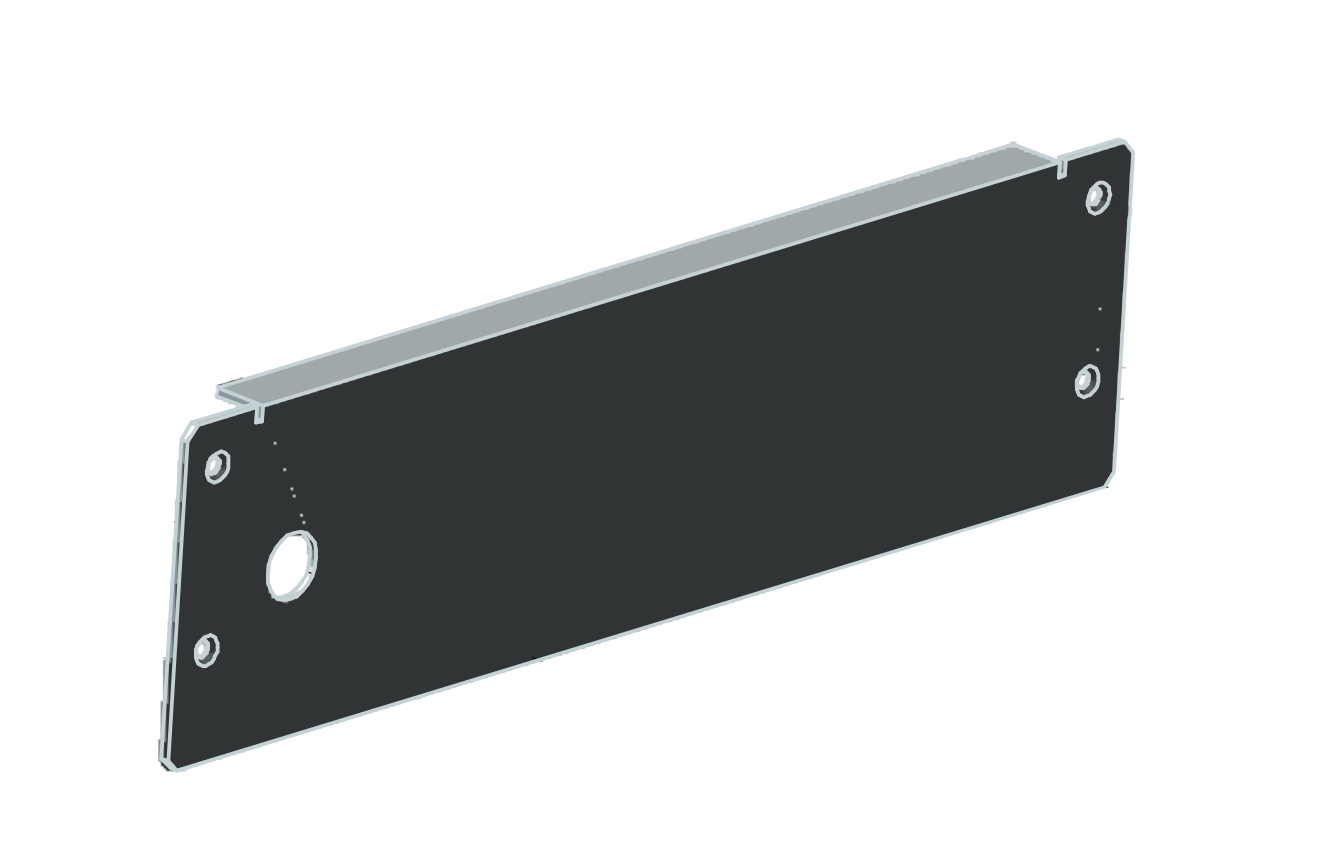

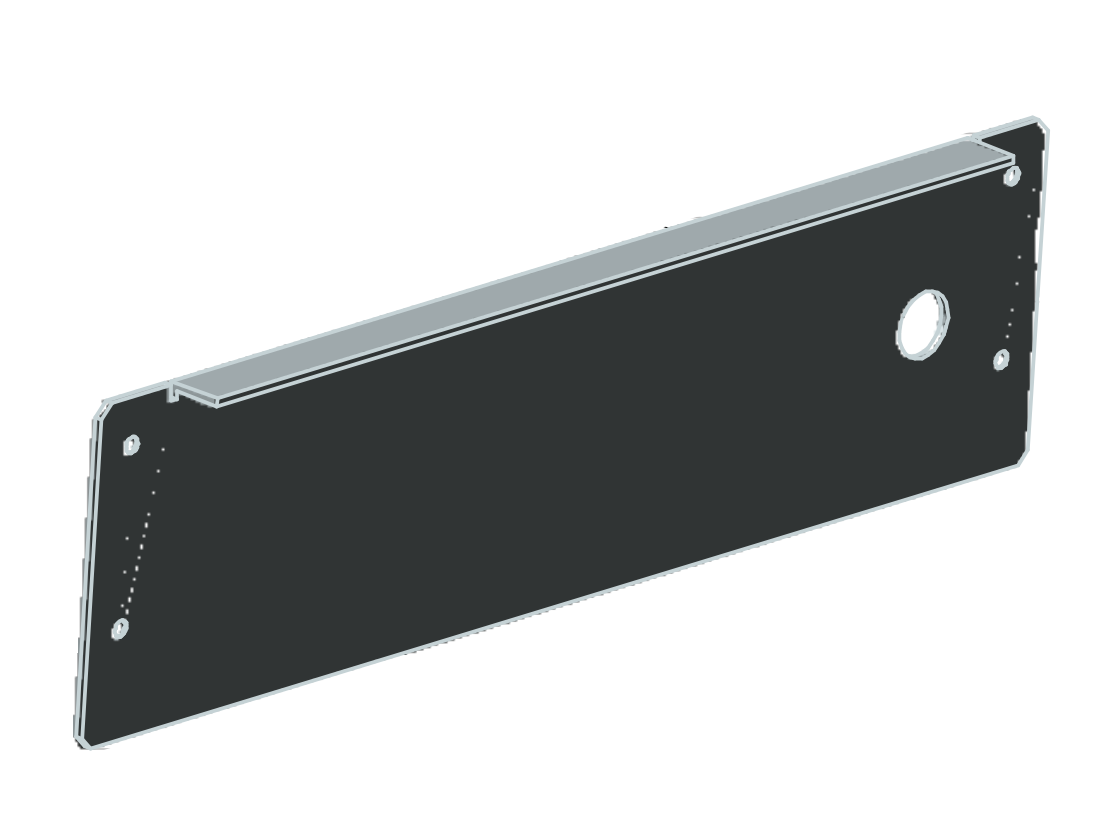

Open DIB Dock, Wall w/ Air Fitting, Top Hat DIB

Hot/Cold Air Testing for Open DIB Dock, Top Hat DIB Fixtures

Part Number: RIK0359A

In Stock:

Estimated Restocking Time: 4-6 weeks

$154

Allows handler supplied hot/cold air to enter/exit the Top Hat DIB Layer.

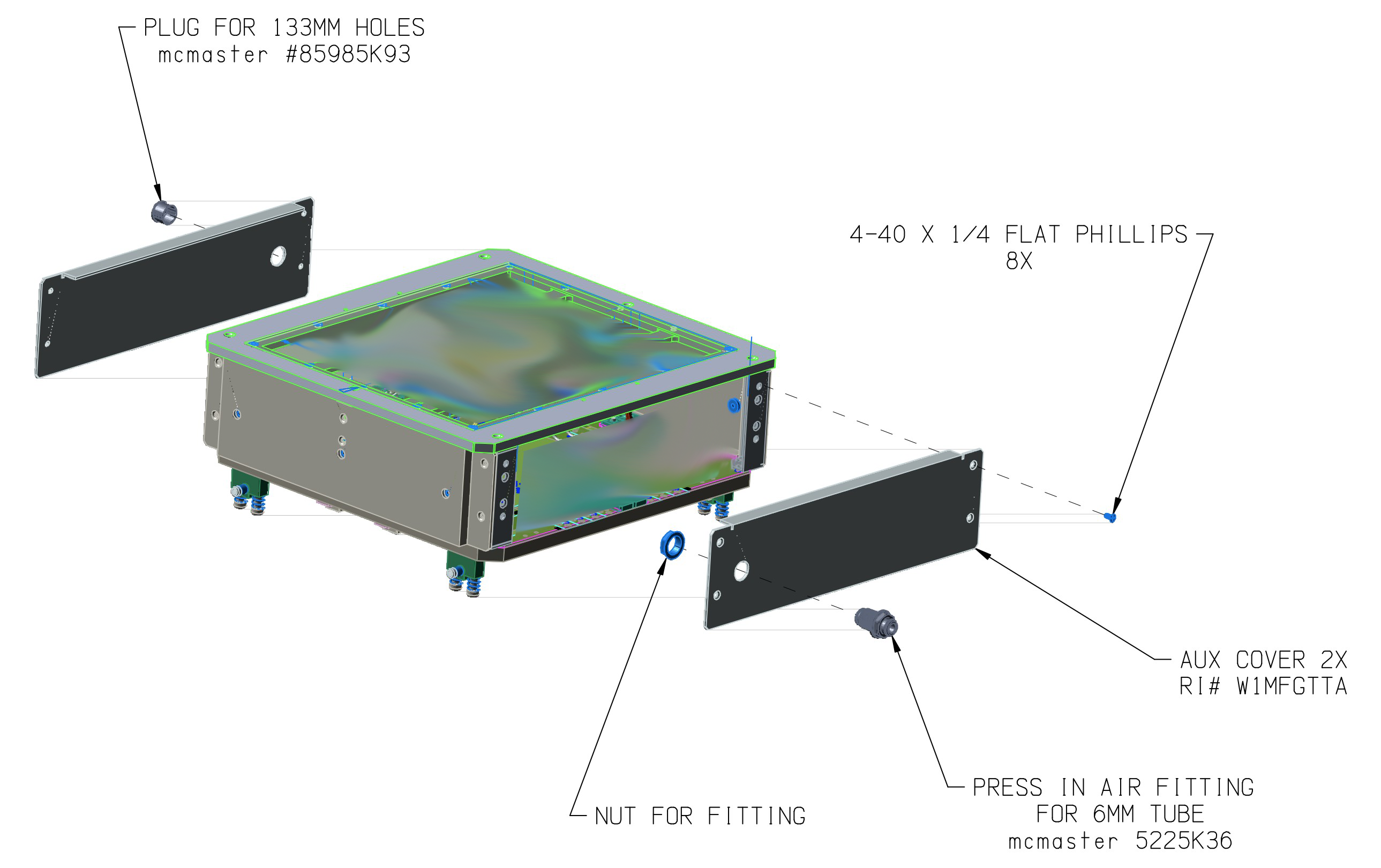

Includes mounting hardware (8 screws) and press in Air Fitting, nut for fitting, and optional plug. The hole can also be used for SMA bulkhead for convenient access to signal in the Top Hat.

Mounts to Product CatalogRIK0331A Open DIB Dock, Leg, Top Hat DIB

Can be used instead of Product CatalogRIK0332A Open DIB Dock, Wall, Top Hat DIB
