Block, Cal, Digital TIM (RI8535A)
Cal RI8535A DPins#
Part Number: RIK0393A
In Stock: 0
Estimated Restocking Time: 4-6 weeks
IMPORTANT: Most of the plans require the cal board to be installed, but some require the board not installed. If the plan does not specifically prompt the operator to REMOVE the board, assume the cal board should be installed. If the board is mounted to the Diag/Cal plate, then unlatch the Fixture before proceeding. Remember to latch the Fixture before moving on to the next Cal/Validate plan.
Used to Calibrate the RI8545A Digital TIM. This block supports calibrating DPins1, Dpins2, DPins3 and DPins4 instruments.
Diagnostics does NOT REQUIRE this board to be installed and it is safe to have it installed.

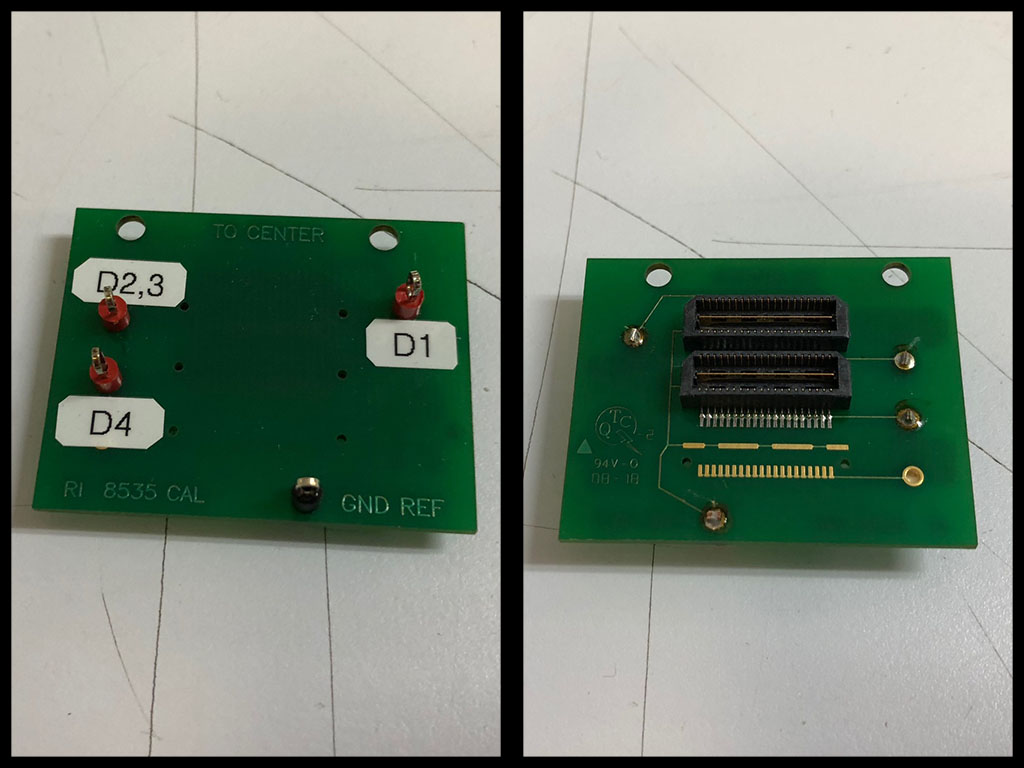

The TIM is cal'd with a Y000FAA1 cal board. The board has all the pins in a row shorted together and brought out to a test point. Because of the spacing, Dpins2 and Dpins3 also had to be shorted together. So the test point labeled 'D1' is Dpins1-1 to 1-20. The test point labeled 'D2,3' is Dpins 2-1 to 2-20 and Dpins 3-1 to 3-20. The test point labeled 'D4' is, of course, DPins4-1 to 4-20.
This block supports TIMs configured with 20, 40 or 80 Pins.
Related Documents:
Service Bulletin - RI8535B Universal Digital TIM, Calibration and Diagnostics Improvements https://roos.com/docs/RBEH-B4GUSM
