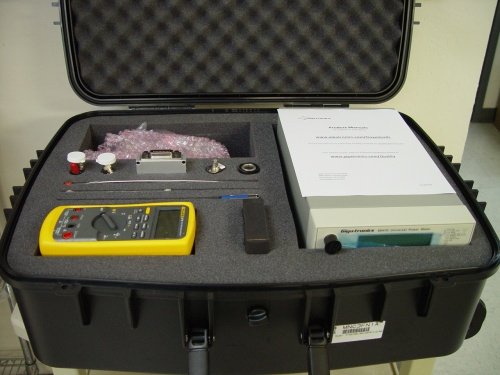

The Calibration Kit (Cal Kit) is used while calibrating an RI test system to frequencies of 18 GHz or less. It includes a Power Meter and Sensor, Digital volt meter, S Parameter Standards, Noise standard, Cables, RF Adapters, RF Attenuators. The diagnostic interface kit is sold separately.

IMPORTANT: Cal Kit is supplemented by required items in the Diagnostic Kit which is custom to a specific Cassini configuration.

This Cal kit can be replaced to support TIMs to 40 GHz, or extended to support up to 50 GHz, 50-75 GHz, 70-87 GHz or shipped as a 12 GHz Cal Kit without a LNA*.

The instruments in the Calibration kit need to be calibrated bi-annually to NIST standards. RI offers RIK0082A Cal Kit Service for 18 GHz Cal kits.

Roos Instruments recommended calibration of the Cal Kits is required every 2 years. However, the Power Meter, Power Sensor and DMM can be (optionally) done with a 1 year calibration cycle.

RI usually only issues a NIST traceable calibration certificate only when a preventive maintenance and calibration (PMC) is performed. A calibration is performed when a major physical instrument is repaired or replaced, but a certificate is not issued.

	RIK	Description
	149A	Calibration Standards Kit, Cassini 18 GHz
	150A	Calibration Standards Kit, Cassini 40 GHz
	151A	Cassini 16-Slot Diagnostic Kit

Each RI Cal Kit requires annual calibrations for most instruments. If available, you can use a calibration lab at your facility or one in your local area. If not, some of the components may have to be sent to the manufacturer for calibration. Below is a listing of the Cal Kit components, Vendor Addresses and Web Sites.

Cal Kit Vendors: Please refer to the website for a vendor representative in your area.

Power Meter + Sensor Spanawave Corporation 1640 Lead Hill Blvd, Suite 130 Roseville, CA 95661 USA http://www.spanawave.com

DMM Fluke Corporation 6920 Seaway Blvd. Everett, WA 98203 USA http://www.fluke.com

S Parameters Anritsu Company 490 Jarvis Dr. Morgan Hill, CA 95037 USA http://www.anritsu.com/

Noise Source NoiseCom E. 64 Midland Ave. Paramus, NJ 07652 USA http://www.NoiseCom.com/

MTFLVZ1A BOM

Description Part Number
Power Sensor 20GHz, SMA, Gigatronics M7CJ2B2A
Power Meter, Gigatronics 8541C M7CJ222A
Cable, Power Sensor-N(m) MNXEHK4A
Adapter, N(m)-SMA(f) G90H7K2A
Cal Standards 18GHz, SMA O/S/L, Anritsu C5224 M6LPY61A
Noise Source .1-18GHz, 20dB ENR M6LPZJ1A

Description Part Number
USB drive with Cal Kits Standards Cal data (.GZP) MNXEHS4A
Multimeter, Fluke 87v Series 5 (5 digit accuracy) MFN6ZK1B
Banana mini gripper leads, 24in 1 red 1 black (set) MMB7GT5A
Adapter, BNC(f) to Dual Banana Plug MMFPB91A
Cable, BNC(m)-BNC(m) 36in M5WNBC1A
Cable, AC Line Cord IEC C13(f)-C14(m), 6ft MFT08S1A
RI8502B RIFL-GPIB POD Isolated RI8502B0
Cable, GPIB(m)-GPIB(m), 0.5m GCBCRS2A
Cable, RIFL3-RIFL2, 84in (2m) GGFEGW2B
Adapter, SMA(m)-SMA(f), 20 GHz GM73Y02A
Noise Source Cal Adapter, FIX Block Y000BUA1
Adapter, BNC(f) to SMA(m) MMF72X1A
Cable, Conformable, SMA(m)-SMA(m) 11" M5PJG21A
Adapter, #12 PKZ-SMA(f) Custom, Cal/Diag MBH0VH1B
(*Optional) LNA, Isolated, 12-20 GHz MCTR861A (* not included with 12 GHz configurations)

---
