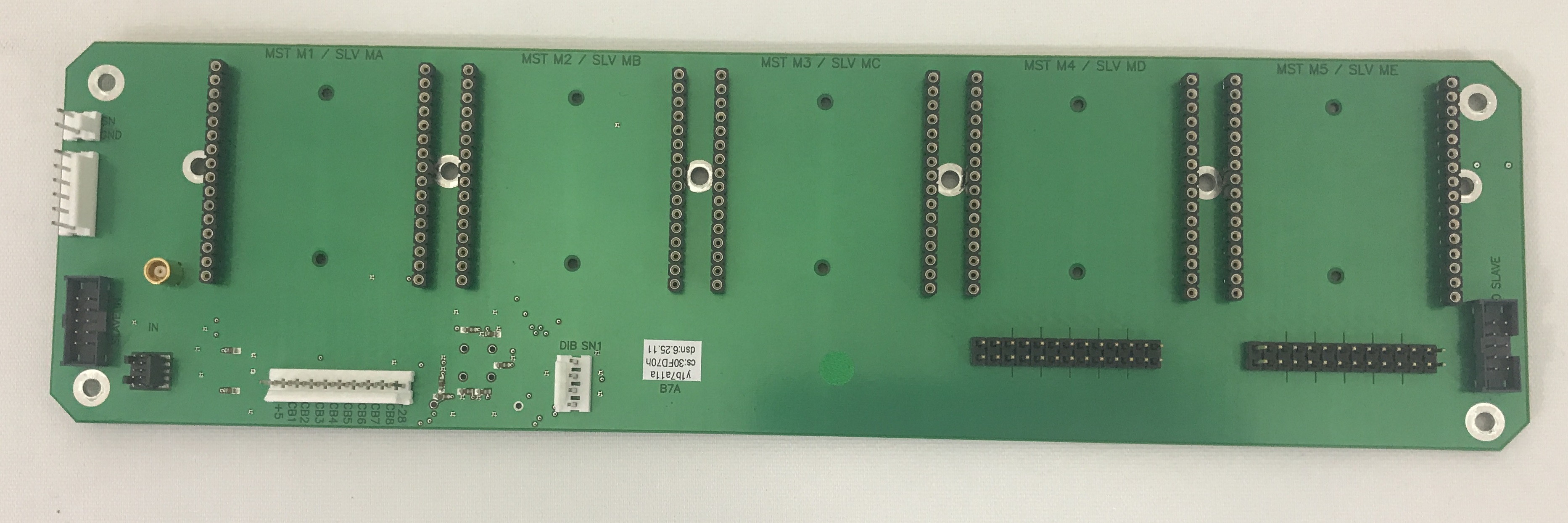

Matrix Carrier, RIFL (B7A), 5 Modules + FIX 16" Block
5 RIFL Modules, XL Top Plate (RIK0164A)
Part Number: RIK0175B
In Stock: 0
Estimated Restocking Time: 1-2 weeks

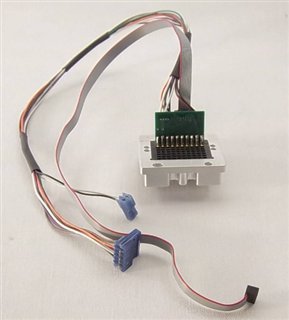

This kit includes Carrier and FIX Block with 18" Harness to mount to the bottom plate.
Active Carrier in use with (modified) Basic Matrix Top Plate where the square carrier does not fit. Requires modified "Tall" side plates. Should only be used with RIK0164A XL Top Plate (and appropriate sides).
ATTENTION: Standard Matrix Top plate can NOT be opened (clam shell) with side plates in place!
Modifications include 2 screw holes for mounting plate that Carrier is mounted too.
Can be extended to secondary 1x5 carrier RIK0236A.
Diagram with Pin descriptions. (note: to extend, connect Slave OUT to the Slave IN of the secondary RIK0236A.)
Configure in the Device Connection Editor

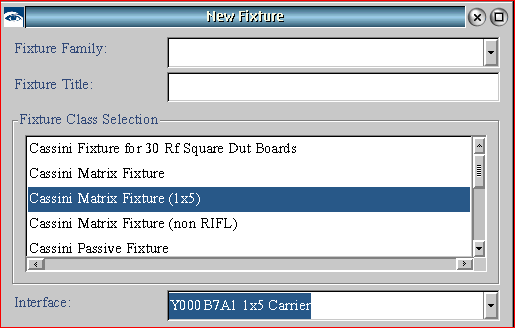

In the New Fixture dialog, choose Fixture Class Selection = "Cassini Matrix Fixture (1x5)" and choose Interface = "Y000B7A1"
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M6J2JS1A | 4 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 2 | MH3FNW1A | 2 | SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patch | Hrdwr | ||
| 3 | MMTMKR6B | 1 | Harness, 16" Fixture Power + RIFL for 1x13 6KB Carrier* | MscAssy | ||
| 4 | W1MFFAGB | 1 | BRACKET CARRIER FIX | MchFb | ||
| 5 | Y000B7A1 | 1 | Carrier Matrix 1x5 Module* | PcbAssy |
