Cassini supports controlling custom Prober via LAN.



Requires Patch: 345 $$$ Prober (first included with $$$ Dev 20.3.41B)

To Add Prober IP address To RiSystem:
    1.   Start the Cassini system software as before and logon as 'Engineer'

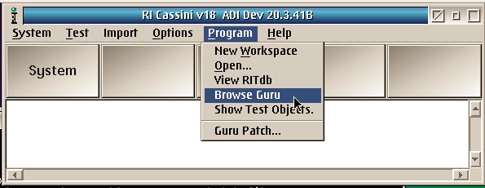

    2.   From the Cassini system message window, click on Program > Browse Guru
    menu.

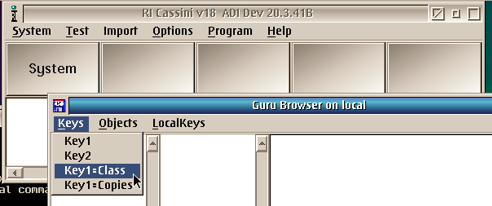

    3.   From Guru Browser window, choose Keys > Key1=Class menu.

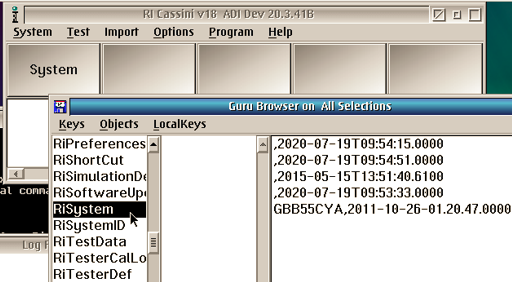

    4.   Select RiSystem on the left first panel.

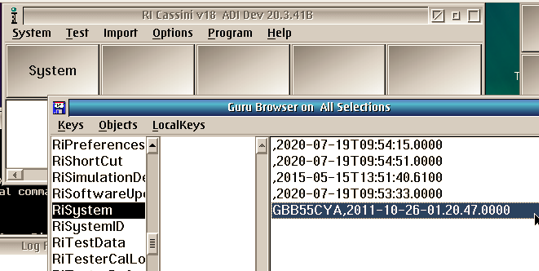

    5.   Select the latest entry of your System option, i.e. "GBB55CYA,2021-10-26T01:20:47.0000" that matches the GuruID / Tester Serial Number.

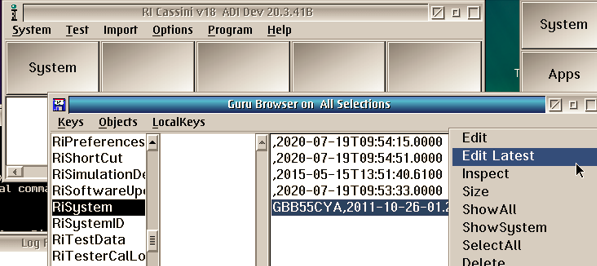

    6.   Choose Edit Latest from the right mouse button menu.

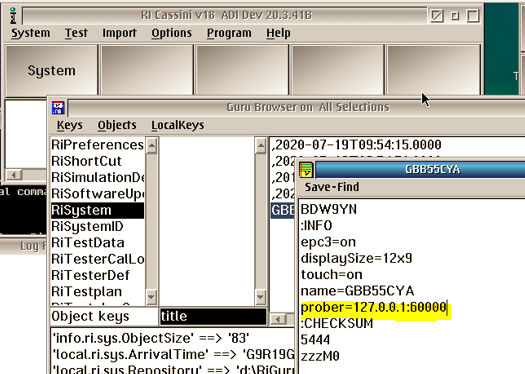

    7.   Add a line before "CHECKSUM:" paragraph with "prober=<IP address>"

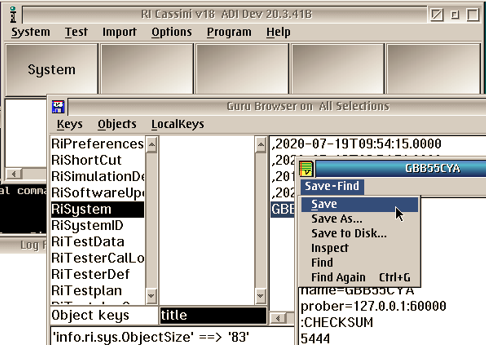

    8.   Chose Save-find > Save
    9.   Close all Cassini windows and re-start the Cassini app from Short Cuts button.
