LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 06/09/2017.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0135B
Expiration Reason: Added Shroud to prevent shorts
Aditional replacements may be found by searching for RIK0135 (change the REV letter) or Matrix DC Insert, 16 pin.

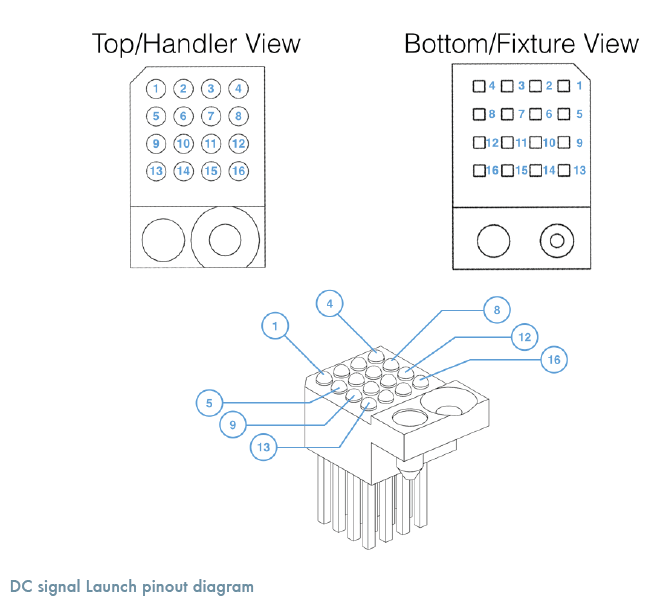

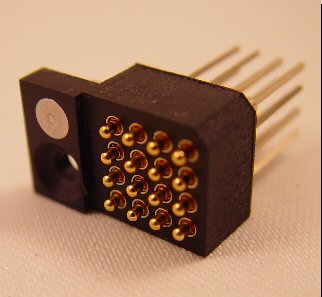

Matrix DC Insert, 16 pin
DC to DIB, 16 Pins
Part Number: RIK0135A
Estimated Restocking Time: 12+ weeks (limited)
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
Connects DC resources from Block to DIB.
A 12 Pin Insert is available as RIK0115A
 | Part # | Applications | Description | IN TYPE | M/F | QTY | OUT Type | M/F | QTY | Length (in.) | Max Freq. (GHz) | QOH | Price | SubCategory |
 | RIK0007A | Used to transfer DC power in fixture | DC Jumper Wires, 28AWG, 4"+8" (qty 20+20) | DC (Jumper) | F | 40 | DC (Jumper) | F | 40 | 8 | 0 | 0 | $446 | DC Wires (Jumper) |
| RIK0007B | DC Starter Kit for 8 Port Fixtures | DC Jumper Wires, 28AWG 4"+8"+12" (qty 20+20+20) | DC (Jumper) | F | 60 | DC (Jumper) | F | 60 | 12 | 0 | 12 | $453 | DC Wires (Jumper) |
| RIK0128A | DC Starter Kit for 16 Port Fixtures | DC Jumper Wires, 28AWG, 12"+18" (qty 30&30) | DC (Jumper) | F | 60 | DC (Jumper) | F | 60 | 18 | 0 | 1 | $453 | DC Wires (Jumper) |
| RIK0157A | DC Power (Extra Long) | DC Jumper Wire Set 28AWG 18" (40 pieces) | DC (Jumper) | F | 40 | DC (Jumper) | F | 40 | 18 | 0 | 5 | $368 | DC Wires (Jumper) |
| RIK0190A | DC power (Short), Daisy Chain | DC Jumper Wires, 28AWG, 4" (qty 10) | DC (Jumper) | F | 10 | DC (Jumper) | F | 10 | 4 | 0 | 4 | $129 | DC Wires (Jumper) |
| RIK0191A | DC power (Mid) | DC Jumper Wires, 28AWG, 8" (qty 10) | DC (Jumper) | F | 10 | DC (Jumper) | F | 10 | 8 | 0 | 5 | $129 | DC Wires (Jumper) |
| RIK0192A | DC power (Long), 20RF Top plates | DC Jumper Wires, 28AWG, 12" (qty 10) | DC (Jumper) | F | 10 | DC (Jumper) | F | 10 | 12 | 0 | 3 | $129 | DC Wires (Jumper) |
Related Documents:
User account required Create new accountSee Also DUT Interface Board (DIB) Design Guide for more overall design information and examples.
| Subject | Last Modified |
| Matrix Top Plate RF Interfaces | 03/25 |
| Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout | 02/11 |
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MTNYH51A | 1 | RIK0135A Insert Packaging Assembled* | MscAssy |
