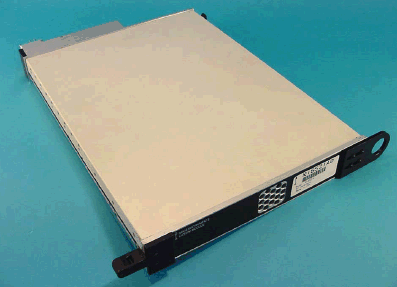

6 GHz Digitally Modulated Signal Generator TIM

Type:Test Head TIM\RF
Availability: 1-2 weeks
RITS


CASSINI system option

Key Specifications
  • Full Vector Signal Generation with complex modulation
  • High symbol rate EVM testing
  • Better than 100 dB of usable dynamic range
  • Microsecond Frequency Hopping in CW Mode

Dual Range Modulated Source

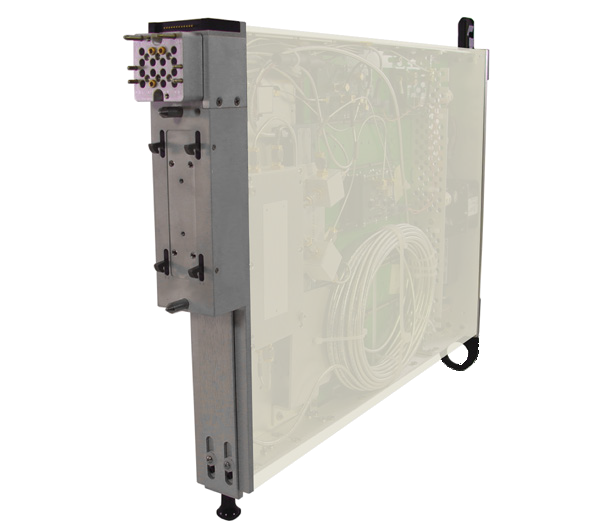

The RI8508B provides two bands of operation, with built in modulation sources for each band. The lower band covers center frequencies from 100kHz to 400MHz over 100 dBm of usable dynamic range. This band features a Quadrature Digital Upconverter (QDUC) architecture providing universal modulation coverage for communication device testing including WCDMA and EVM tests with up to 2.5M symbols/s QPSK capability. The upper band is handled by a combination of an RI exclusive CW Source covering 400MHz to 6GHz and I/Q Modulation provided by an onboard 800Msps IQ AWG with built in gain, phase and offset compensation.

The IQ source features 14 bit performance with sinx/x compensation. This is a perfect fit for testing broadband communication, wireless base station, internet telephony, and video modem devices. On board switching provides single port access to the complete 100kHz to 6GHz range.

TIM Level Performance Data

QDUC Specifications
Minimum RF Frequency 100kHz
Maximum RF Frequency 400MHz
Frequency Accuracy Same as system timebase*
Minimum Power -100dBm
Maximum Power TBD
Modulation Frequency Resolution 0.003% of setting
Modulation Frequency Accuracy Same as system time base*
Switching Time 100μS
Harmonics
Even -20dBc Typical
Odd -10dBc Typical
Modulation Waveforms
Sine (FM), Tone (SSB), User Defined

I/Q Modulated Source Specifications
Minimum RF Frequency 400MHz
Maximum RF Frequency 6GHz
Frequency Accuracy Same as system timebase*
Minimum Power -100dBm
Maximum Power CW +10dBm
Maximum Power Modulation TBD
Modulation Frequency Resolution 0.003% of setting
Modulation Frequency Accuracy Same as system time base*
Switching Time 100μS
Harmonics -20dBc Typical
* All time bases for system components are synchronized. Internal time base accuracy is ±1 ppm variation from 10 to 30 degrees C and ±5 ppm absolute accuracy.

Mechanical Specifications
Single TIM Unit
Power Consumption: <100 Watts
TIM Block Type: RF Block (16 Coax)
