LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/27/2017. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RI8564D

Expiration Reason: Moved the RF amp from before the switch to after, so the amp only drives the doubler. Changed the cal factors and process so linearity is now absolute. This results in better source accuracy.

Aditional replacements may be found by searching for RI8563C (change the REV letter) or Test Set - 4-40.5 GHz, 2 Ports 1 Path TIM.

Test Set - 4-40.5 GHz, 2 Ports 1 Path TIM

Part Number: RI8563C

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

40.5 GHz Extension for 20 GHz systems

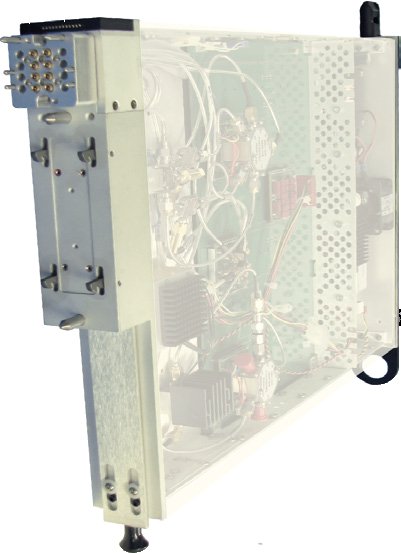

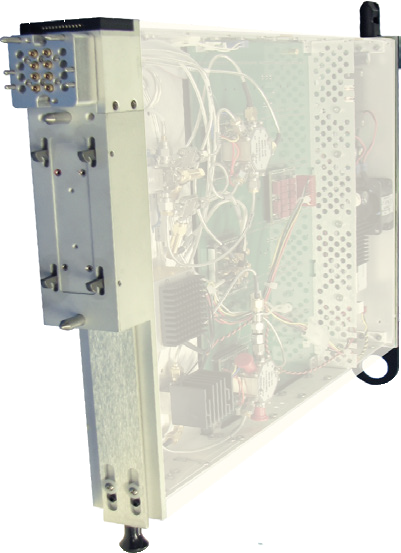

The RI8563A 5-40.5 GHz Test Instrument Module (TIM) is a single slot module that extends 20GHz general tester coverage to 40.5GHz on Cassini test systems. Each TIM provides one source/receive port and one receive only port. The 20-40.5GHz TIM requires two 20GHz sources (RF and LO) be configured in the same test system. Full access to 20GHz resources is maintained via pass through paths provided in the TIM. Calibration is available at the TIM and Fixture level.


RI8563C.pdfRI8563C.pdf
