A "Config Log" is a text file with a complete description of the hardware and software found in a currently running Cassini test system. This file is useful for generating a Calibration Certificate or whenever the TIM module serial numbers and model numbers are needed, typically when debugging an issue.



The file name is the GuruID followed by " Description.txt". Send this file to [email protected] along with the output of the Diag exec or prior to a RI run Calibration.

To create a Config Log:

1. Choose System > Tester from the main Cassini window.

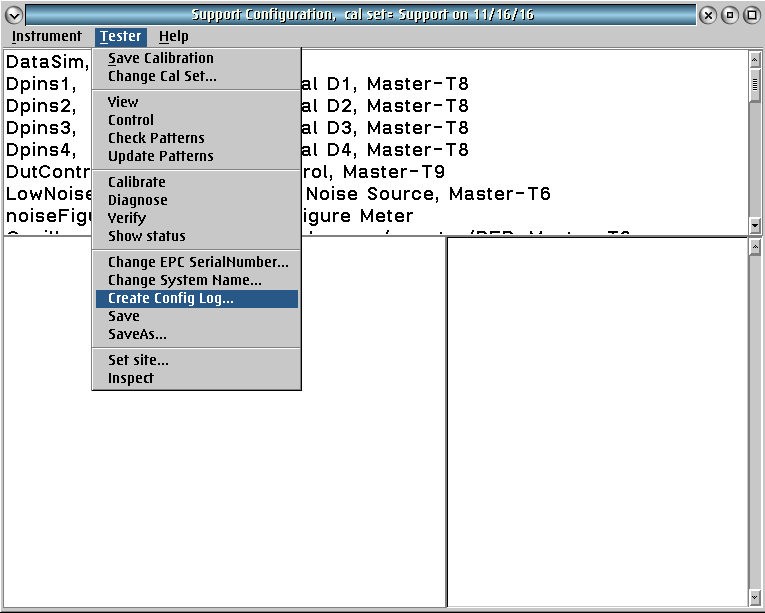

2. Choose Tester > Create Config Log...
3. Change the destination to "D:\" or a shared network folder in the Save File dialog and send that file to [email protected].



Example File:
GD3LVRYA Description.txtGD3LVRYA Description.txt

The file includes the date the configuration was generated, Equipment Pool master Serial Number, Tester Title, Serial Number and Cal Set, Instruments by Name, Local Guru Setup including current User Name, Patches and Patches that are locked by the ShortCut with Cid.

How to Read Instruments:
Since there are multiple instruments per TIM, the 8 character string after the nodeId= can be used to identify the serial number of the TIM. Highlighted in RED BOLD below. Notice the 3 instruments sharing the same "nodeId" for the TIM in T5. Virtual instruments all have a sn= attribute, but since they don't exist in hardware, they don't have a nodeId.


...
Instruments
StaticDigital,model=Ri74311A,sn=RTGZS80A,inst=1
baseInst=RI8546C4,nodeId=RITGZS60,node def date 2014-07-01-14.56.48.0000 cid:GCA9X5YACSA7MP00
rbf Y185463D 2014-05-28-20:18:28.0000
rbf Y185462D 2017-02-22-20:31:08.0000
location=T5
cal date 2017-10-27T12:03:17.0000 cid:GD3LVRYAEIQ4XI00
def date 2017-02-08T13:18:55.0000 cid:GD3LVLYAE5AZ7K00
Fixture,model=RiCassiniPassiveFixture,sn=RU9BF20A,interface=UndefinedObject
family= Customer_BottomPlate title= Customer_BottomPlate_2WAQ1000
cal date 2017-12-15T15:08:23.0000 cid:GD3LVRYAEL96YQ00
def date 2017-01-31T22:51:12.6300 cid:GD3LV9YAE4W7DD00
Fixture Connections
RfMeasure1,model=Ri8567B,sn=RTG2CJ0A,inst=1
baseInst=RI8567B7,nodeId=RTG2CJ0A,node def date 2014-09-22-15.58.10.0000 cid:GCA9XNYACWJZSY00
rbf Y185673C 2014-10-14-18:14:08.0000
rbf Y1A4B12B 2013-11-18-15:14:08.0000
rbf Y185672C 2014-09-22-17:37:18.0000
location=T12
cal date 2017-12-05T10:54:25.0000 cid:GD3LVRYAEKQ9R600
def date 2017-05-08T12:05:47.0000 cid:GD3LVRYAE9VMDO00
System,model=RiComputeInst2,sn=RU9BJG0A,type=virtual
def date 2017-05-31T17:10:03.0000 cid:GD3LVLYAEB2LSR00
DutControl,model=Ri7421B,sn=RTGZS70A,inst=3
baseInst=RI8546C4,nodeId=RITGZS60,node def date 2014-07-01-14.56.48.0000 cid:GCA9X5YACSA7MP00
rbf Y185463D 2014-05-28-20:18:28.0000
rbf Y185462D 2017-02-22-20:31:08.0000
location=T5
cal date 2017-12-07T08:49:29.0000 cid:GD3LVRYAEKTTAZ00
def date 2017-10-22T17:21:25.0000 cid:GD3LVLYAEIHABQ00
Tester,model=Ri8568A,sn=RTKPA90A,inst=1
baseInst=RI8568A0,nodeId=RITKPA80,node def date 2014-06-12-20.10.26.0000 cid:G9TQQ5YACRBFHF00
def date 2017-05-07T17:10:50.0000 cid:GCUR5AYAE9U5U200
PowerVI,model=Ri7431A,sn=RTGZS90A,inst=2
baseInst=RI8546C4,nodeId=RITGZS60,node def date 2014-07-01-14.56.48.0000 cid:GCA9X5YACSA7MP00
rbf Y185463D 2014-05-28-20:18:28.0000
rbf Y185462D 2017-02-22-20:31:08.0000
location=T5
cal date 2017-10-27T12:03:18.0000 cid:GD3LVRYAEIQ4XJ00
def date 2010-09-18-10.10.19.0000 cid:GACXUBYAAT5G9M00
PowerAmp,model=Ri8595B,sn=RU85VZ0A,inst=1
baseInst=RI8595B0,nodeId=RU85VZ0A,node def date 2017-09-14T18:07:29.0000 cid:GD3LVRYAEGIZ4H00
rbf Y16LB13B 2014-09-23-18:34:00.0000
rbf Y16LB12B 2014-09-23-18:36:58.0000
location=T11
cal date 2017-12-04T14:09:46.0000 cid:GD3LVRYAEKOO4O00
def date 2017-09-22T19:35:29.0000 cid:CG75WAXAEGXWJ600
noiseFigure,model=Ri7801C,sn=RU9BJJ0A,type=virtual
def date 2011-04-21-13.46.26.0000 cid:GACXU4YAB4933B00
RfSource1,model=Ri8508C,sn=RU2P3J0A,inst=1
baseInst=RI8508C4,nodeId=RIU2P3G0,node def date 2015-08-12T19:13:26.0000 cid:GCA9YCYADD88UF00
rbf Y185084B 2014-06-06-19:10:16.0000
rbf Y183A12B 2013-08-07-20:34:12.0000
rbf Y185082C 2014-06-06-19:05:42.0000
rbf Y1AFB11A 2011-09-06-22:32:28.0000
Wear Factors
ampBypass used 160 available 20000000
imSwitch used 0 available 20000000
output used 5676 available 20000000
src1Attn used 0 available 20000000
location=T15
cal date 2017-09-26T21:37:27.0000 cid:GD3LVRYAEH5GUG00
def date 2015-04-07T12:44:58.0000 cid:GCUR4YYAD6OK6Z00
DataSim,model=RiDataSim,sn=RU9BJL0A,type=virtual
def date 2009-06-14-17.18.51.0000 cid:G78T5XCAA5HL8G00
FetPulser2,model=Ri8589A,sn=RU64UZ0A,inst=1
baseInst=RI8589A5,nodeId=RU64UZ0A,node def date 2017-01-13T20:37:56.0000 cid:GD3LVLYAE3ZE7800
rbf Y185892D 2017-01-18-15:56:28.0000
location=T9
cal date 2017-12-14T21:13:19.0000 cid:GD3LVRYAEL7T6X00
def date 2017-02-17T19:21:36.0000 cid:GD3LVLYAE5S40100
FetPulser,model=Ri8589A,sn=RU4S380A,inst=1
baseInst=RI8589A5,nodeId=RU4S380A,node def date 2017-01-13T20:37:56.0000 cid:GD3LVLYAE3ZE7800
rbf Y185892D 2017-01-18-15:56:28.0000
location=T4
cal date 2017-12-06T11:10:39.0000 cid:GD3LVRYAEKS56800
def date 2017-02-17T19:21:36.0000 cid:GD3LVLYAE5S40100
QamSource1,model=Ri74212A,sn=RU2P3H0A,inst=2
baseInst=RI8508C4,nodeId=RIU2P3G0,node def date 2015-08-12T19:13:26.0000 cid:GCA9YCYADD88UF00
rbf Y185084B 2014-06-06-19:10:16.0000
rbf Y183A12B 2013-08-07-20:34:12.0000
rbf Y185082C 2014-06-06-19:05:42.0000
rbf Y1AFB11A 2011-09-06-22:32:28.0000
location=T15
cal date 2017-09-25T18:28:34.0000 cid:GD3LVRYAEH3DFN00
def date 2012-03-29-15.47.24.0000 cid:GB83YWYABLWDM100
vna,model=Ri7802D,sn=RU9BJN0A,type=virtual
def date 2013-03-01-15.22.25.0000 cid:GBB56LYAC38I0D00
...
