Values are subject to change without notice. Additional environmental information is available in the RI Site Preparation Operating Environment Guidelines document.

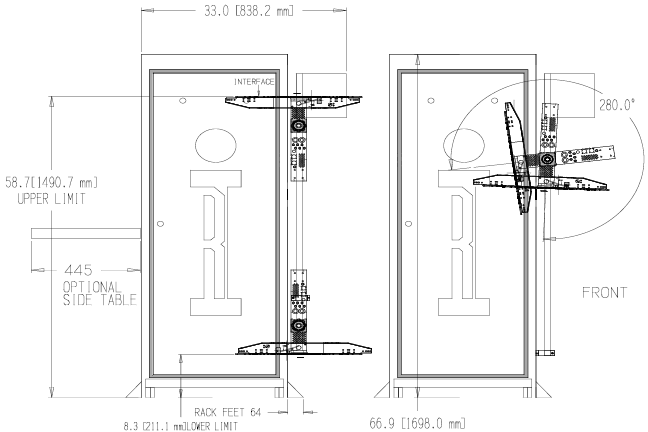

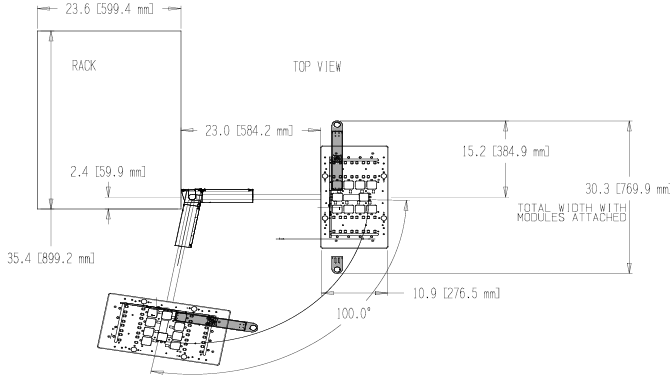

Size of RI8557A Large Infrastructure:
    • Height: 1698 mm (66.9 in.)
    • Depth: 900 mm (35.4 in.)
    • Width: 838 mm (33.0 in.)
    • Max Shipping Weight: 300 Kg (660 pounds)

Optional Cart must be adjacent to system rack (limited by length of RIFL cable)
