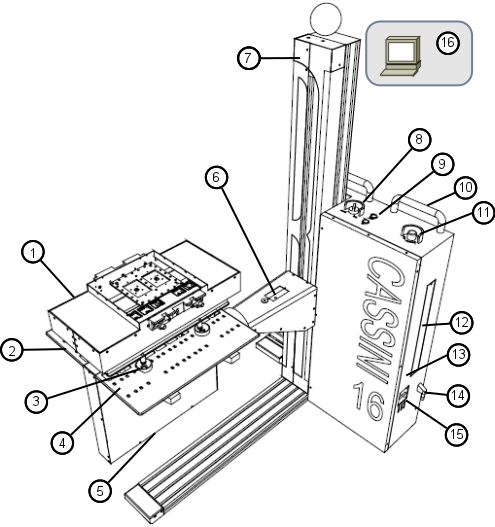

The following diagrams show the location of Cassini 16 features.

Cassini 16 Front




  1. Fixture (16-slot) (Compatible with 8-slot Fixtures)
  2. Test Head
  3. Fixture Alignment Holes
  4. Test Instruments Module (TIM) Slots (qty 16)
  5. Counterweight (Adjustable)
  6. Test Head Alignment Lock and Indicator
  7. Tower (Holds Manipulator Arm & Test Head)
  8. Fixture Latch/Unlatch Switch
9. Test Head Height Up/Down Buttons
10. Cassini System Movement Handles
11. Emergency Off (EMO) for 48V
12. DC Power Supply Service Access Panel
13. Handler Grounding Wire (Alligator Clip)
14. Air Supply (Pressurized) Connection
15. DC Power 48V Distribution Switches
16. System Monitor/Keyboard/Touch Pad
(Touch screen attached to tower- Optional)

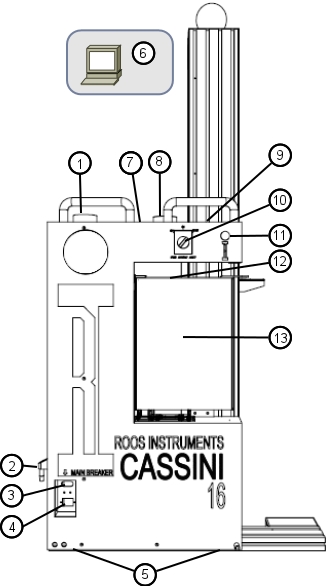

Cassini 16 Back




  1. Emergency Off (EMO)
  2. Air Supply (Pressurized) Connection
  3. Main Breaker (20 Amp)
  4. AC Power Cord Connection (220-230V @ 50 Hz)
  5. Feet for Locking Movement & Stability (qty 2)
  6. System Monitor/Keyboard/Touch Pad
    (Touch screen attached to tower- Optional)
  7. Test Head Arm Height (Up/Down)
  8. Fixture Latch/Unlatch
9. System Serial Number
10. System Off/On/Start Switch
11. System Power "ON" Light (blue)
12. Monitor/Keyboard/Mouse/USB/Network
13. System Controller TIM

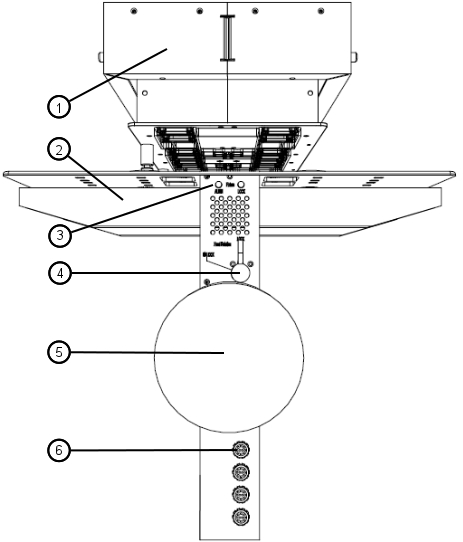

Back of Test Head
  1. Fixture
  2. Test Head
  3. Fixture Align & Lock Lights (Red = Bad or Green = Good)
  4. Test Head Rotation Lock (0,90,180), ok leave unlocked when docking at any other angle.
  5. Test Head Arm
  6. RIFL Hub (Qty 4 round "RIFL 3" ports)
  7. (Not Pictured) Test Head Weights (for Fixtures exceeding 20 lbs.)
