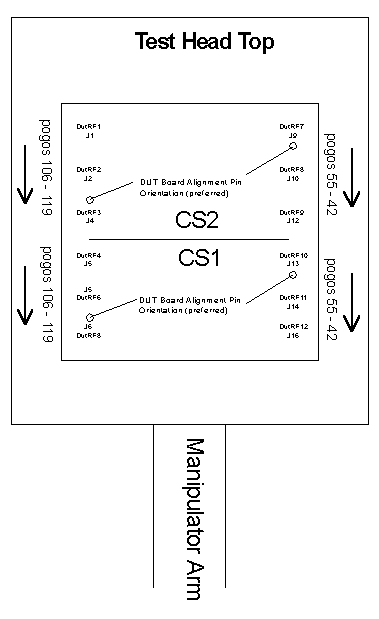

This document describes the fixture carrier board pogo orientation in relation to the test head for the dual-site fixture. It can be used to orient Pin one (Pin 1) of the part to the Dut board nomenclature.







Dual Site Fixture Carrier RF Bottom View

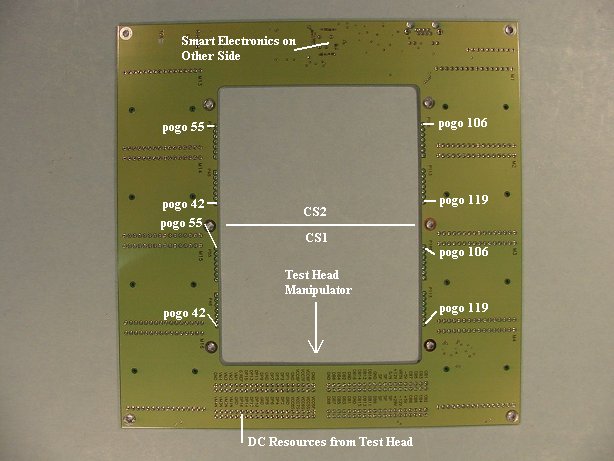

Dual Site Fixture Carrier DC Bottom View
