RIK0219A


Fixture Module, VI Filter

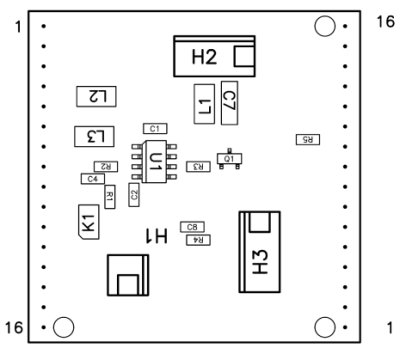

Y000BWA VI Filter Pin Out

Pin#
Function
Note
Connector Type
P1:6
+15V
16 Header Pin
P2:10
3.3V
16 Header Pin
P1:12
DS1
Cap Control
0 Fast
1 Slow
16 Header Pin
H1:1
GND
2 Pin Header
H1:2
V Control
Connect to Low Current DP
2 Pin Header
H2:1
GND
4 Pin Header
H2:2
GND
4 Pin Header
H2:3
VI BULK IN
Set to +1V over Max Out
4 Pin Header
H2:4
VI BULK IN
Set to +1V over Max Out
4 Pin Header
H3:1
GND VI RTN
4 Pin Header
H3:2
Vout RTN Sense
4 Pin Header
H3:3
Vout Sense
4 Pin Header
H3:4
Vout
4 Pin Header
