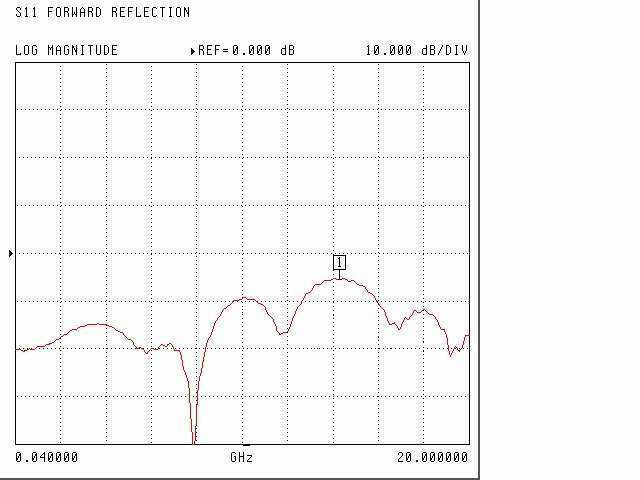

Purpose: To describe the RIK0203A (BZA) fixturing option and to provide information on its performance.



The RIK0203A includes one DUAL SP4T wide band (5MHz to 20GHz) RF module. It is intended to be used with the all RI active series carriers. It is especially easy to use since DC wiring is not required when used in conjunction with the smart carrier. It also helps to reduce fixture complexity where a high level of RF switching is required.

Pin Out:

Pin#
Function
DS1
DS2
DS3
DS4
Connector Type
P2:12
+5V
Header Pin
P2:11
-5V
Header Pin
P1:12
DS1
Header Pin
P1:13
DS2
Header Pin
P1:14
DS3
Header Pin
P1:15
DS4
Header Pin
P1:16
Grnd
Header Pin
J1
SW1 Common
SSMP Male
J2
SW1 NO
1
1
X
X
SSMP Male
J3
SW1 NO
1
0
X
X
SSMP Male
J4
SW1 NO
0
1
X
X
SSMP Male
J5
SW1 NO
0
0
X
X
SSMP Male
J6
SW2 Common
SSMP Male
J7
SW2 NC
X
X
1
1
SSMP Male
J8
SW2 NO
X
X
1
0
SSMP Male
J9
SW2 NO
X
X
0
1
SSMP Male
J10
SW2 NO
X
X
0
0
SSMP Male
