When testing small selections of parts, it is often a requirement that each part's testdata be identified with a unique name or number. Using the "manual" mode of the RI 7100A System Software "test executive" supports this gracefully.

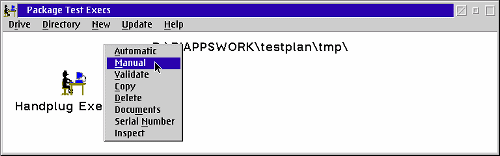

When starting the test executive, use the right mouse button to select the "manual" mode, as shown in the image below.

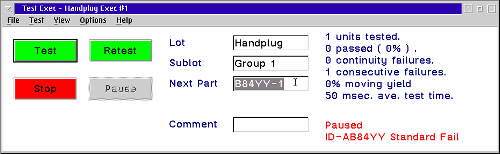

Before running the executive, edit the part number field of the Test Executive (below) and press "Test".

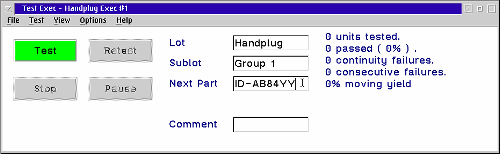

The manual mode Test Executive will append "-1" to the end of the last name. If name is not correct for the next part, just highlight the part number and type in a new value (below).

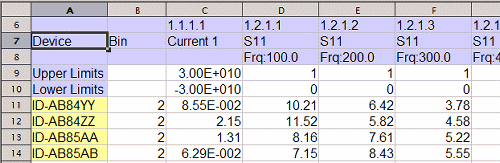

Log files produced by the test executive keep the correct part identifier with the measured results, as shown below.
