RI offers a quick docking solution for many Handler types. If using RI Docking plate, a Fixture must have Docking Ears that connect to a Docking Plate that is mounted to the Handler via an Adapter Plate.



Fixture Docking Ears
  • Standard - RIK0068A
  • Intest Compatible - RIK0165A (RI Docking Plate is NOT needed, but ears are compatible with all RI Docking Plates)

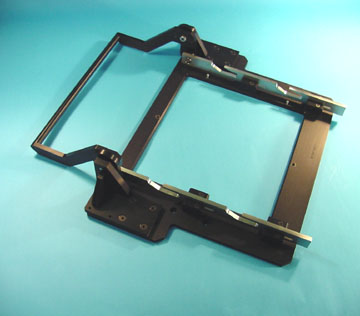

Docking Plates
  • Standard (for 7100 12 RF fixtures) - RIK0069A
  • Large (20RF and Cassini fixtures) - RIK0070A

Common Adapter Plates (W1MF...)
  • BCME - Floating Conn
  • BEWA - National
  • BEXB - Multi-test
  • BFBC - Sowa
  • BGTC - Float Coax
  • BVKA - MCT
  • BWBA - Seiko Epson (type A)
  • CSXA - Seiko Epson (type B)
  • CTUB - Seiko Epson (type C)
  • CUHA - Avantest 2000AX
  • Your Handler: ______________
