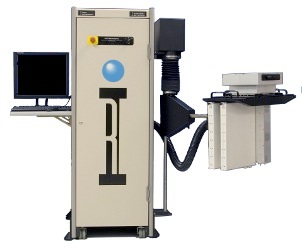

Cassini Infrastructure (RI8556A)

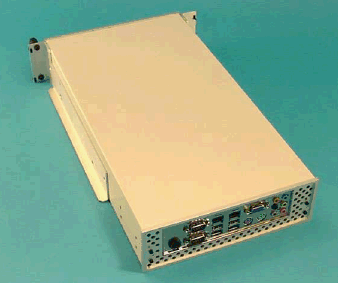

Includes Rack, Testhead, Manipulator, System Controller, Power Supplies

Cassini Small Cassini 16

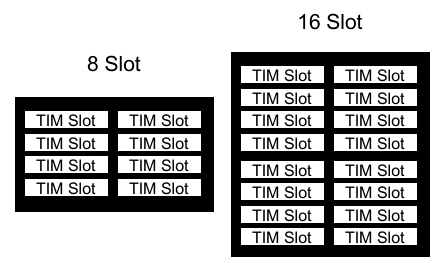

Test Head Configurations

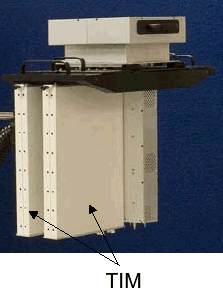

Typical Testset TIM (Tester Instrument Module)

4 ports
External CW Synthesi
External DMSG
External Receiver
20 GHz RF Testset
Same Hardware as RI7100A RF

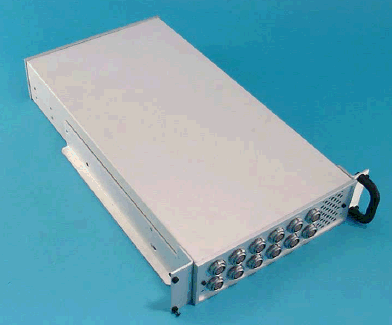

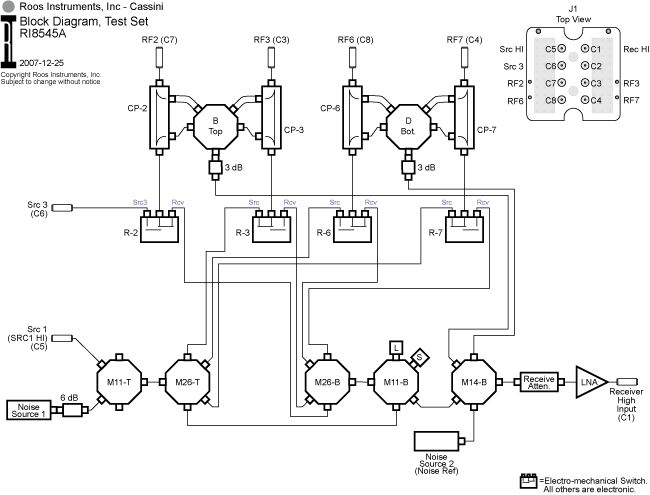

Testset TIM (RI8545A)

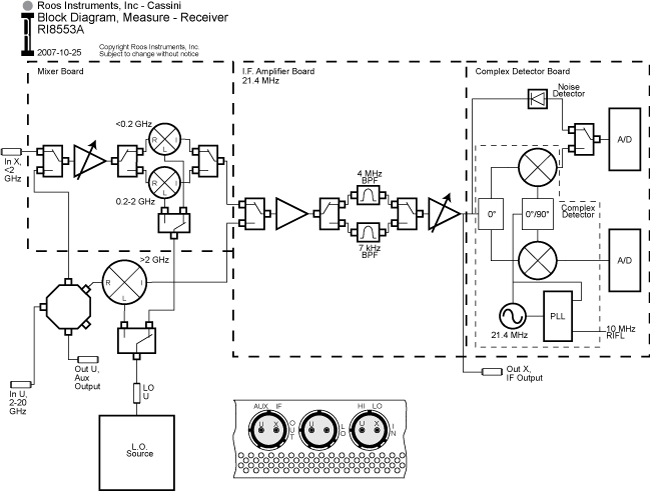

Receiver (RI8553A)

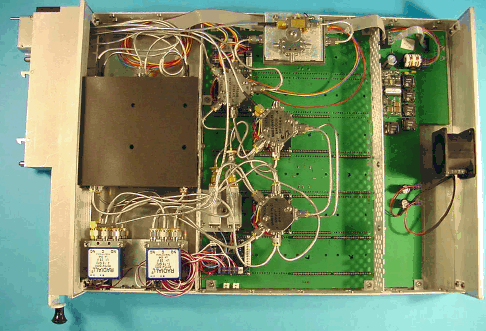

Receiver (RI8553A)

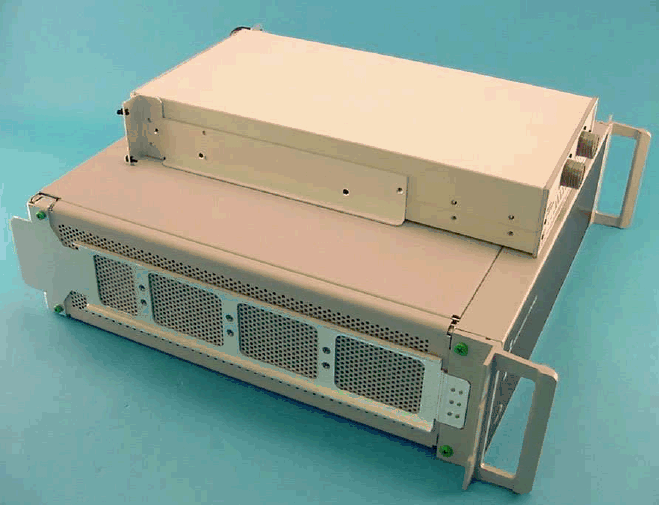

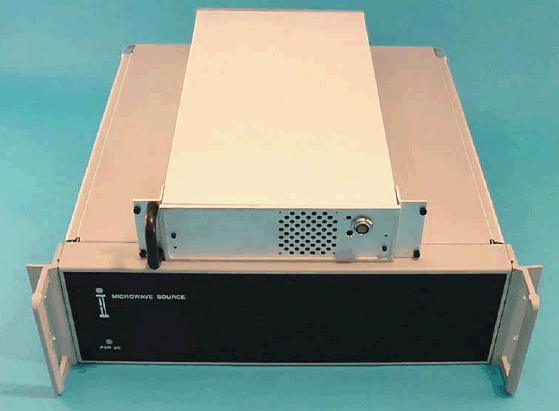

Source and Amp Attenuator Picture (RI8555A)

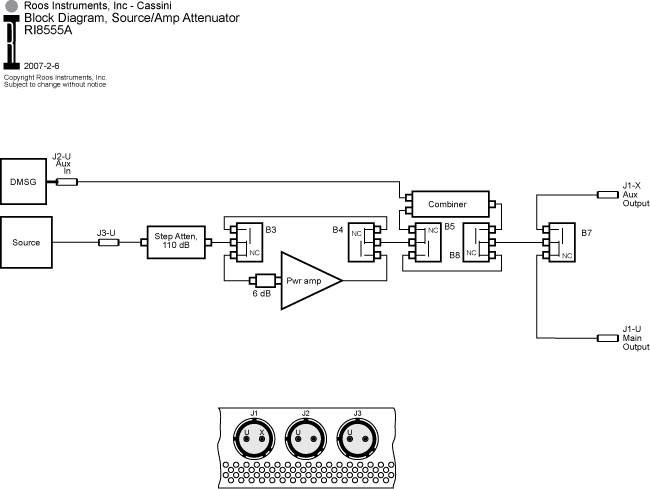

Source and Amp Attenuator Block Diagram (RI8555A)
