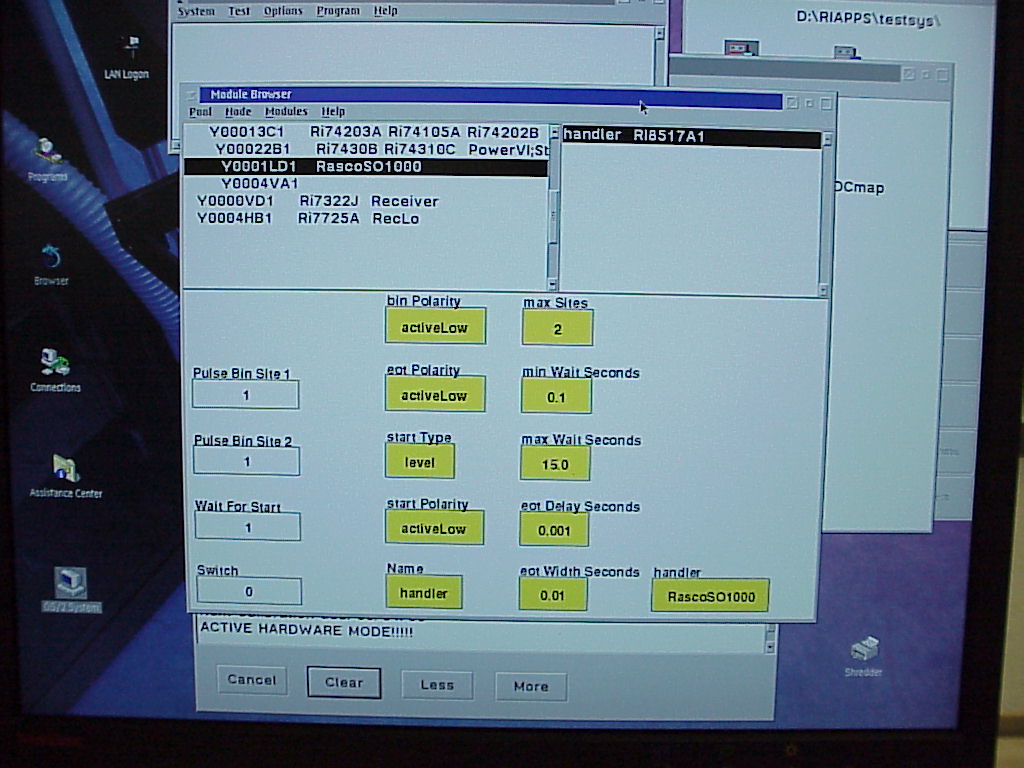

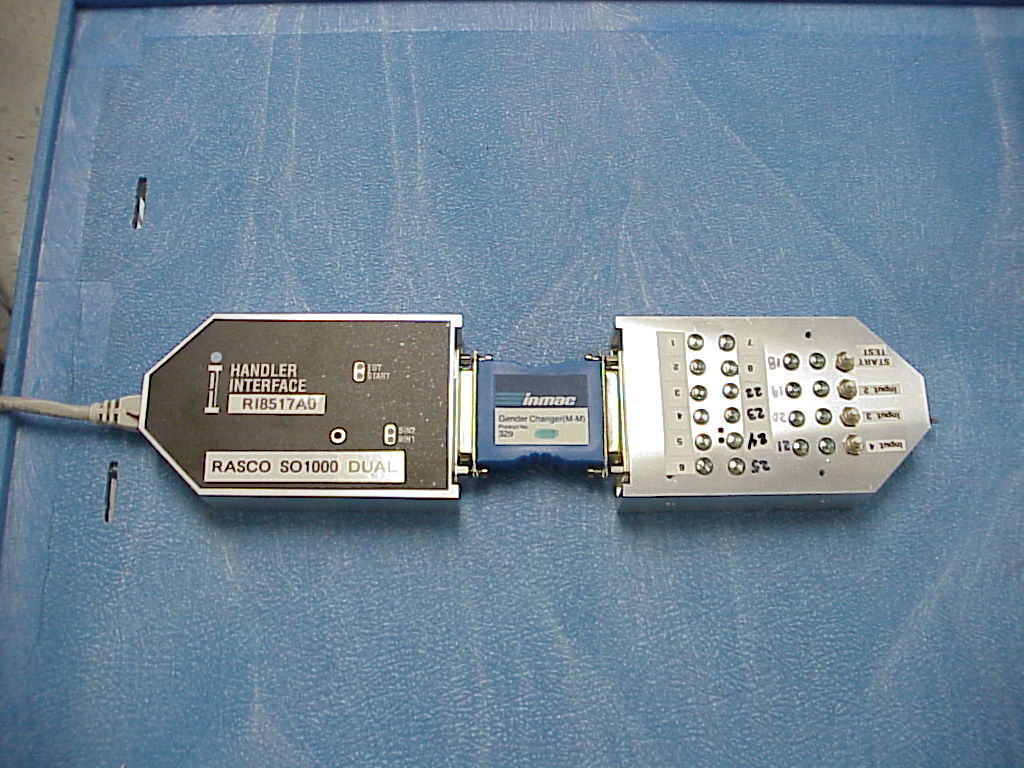

Handler Pod Configuration Settings for Rasco SO1000
Parameter Name
Single -Site Value (1, 2)
Dual Site Value RI8517A(3)
Bin Polarity
Active Low
Active Low
EOT Polarity
Active Low
Active Low
Start Type
Level
Level
Start Polarity
Active Low
Active Low
Name
Handler
Handler
Max Sites
1
2
Min Wait Seconds
0.1
0.1
Max Wait Seconds
15.0
15.0
EOT Dealy Seconds
0.001
0.001
EOT Width Seconds
0.01
0.01
Handler
RascoSO1000
RascoSO1000

Notes:
  1. Configuration is for Mode = Asynchronous 1-16 with EOT
  2. RI8503A0 and RI8517A models.
  3. RI8517A only
  4. Handler Pod Pin Assignments Database 'Product Docs', View 'All Documents', Document 'Handler Control Pod Pinouts'
  5. 25 Pin Dsub Connector to Wire Color Code: Database 'Product Docs', View 'All Documents', Document 'Handler Cable 25 Pin D-SUB Color Code'

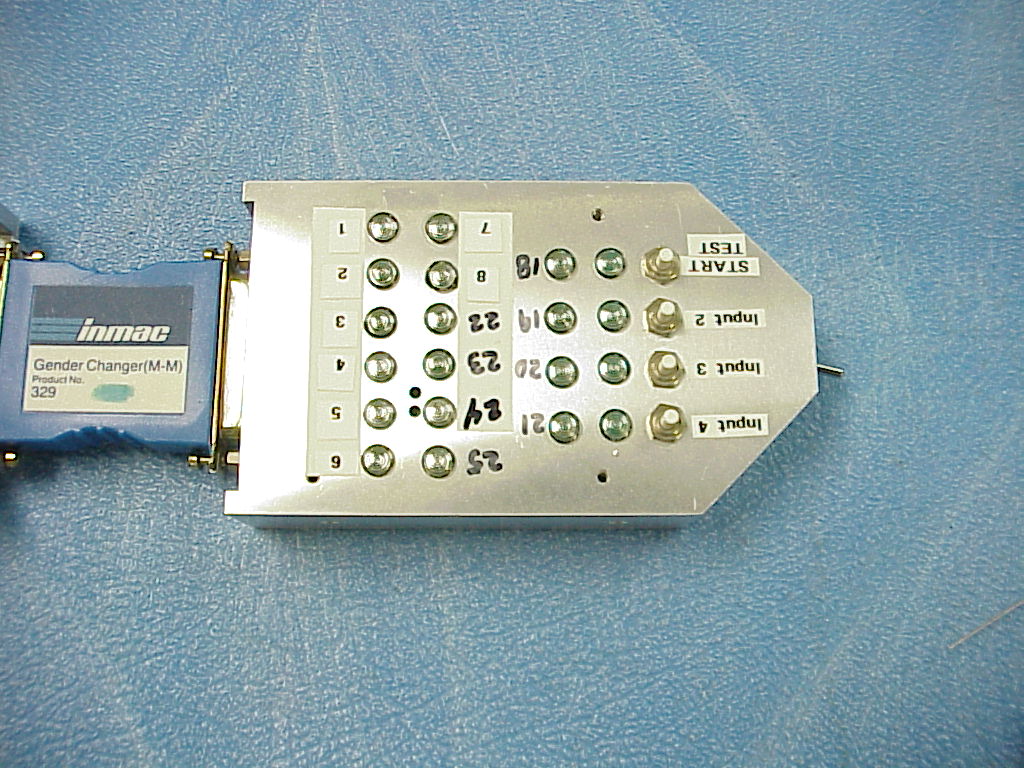

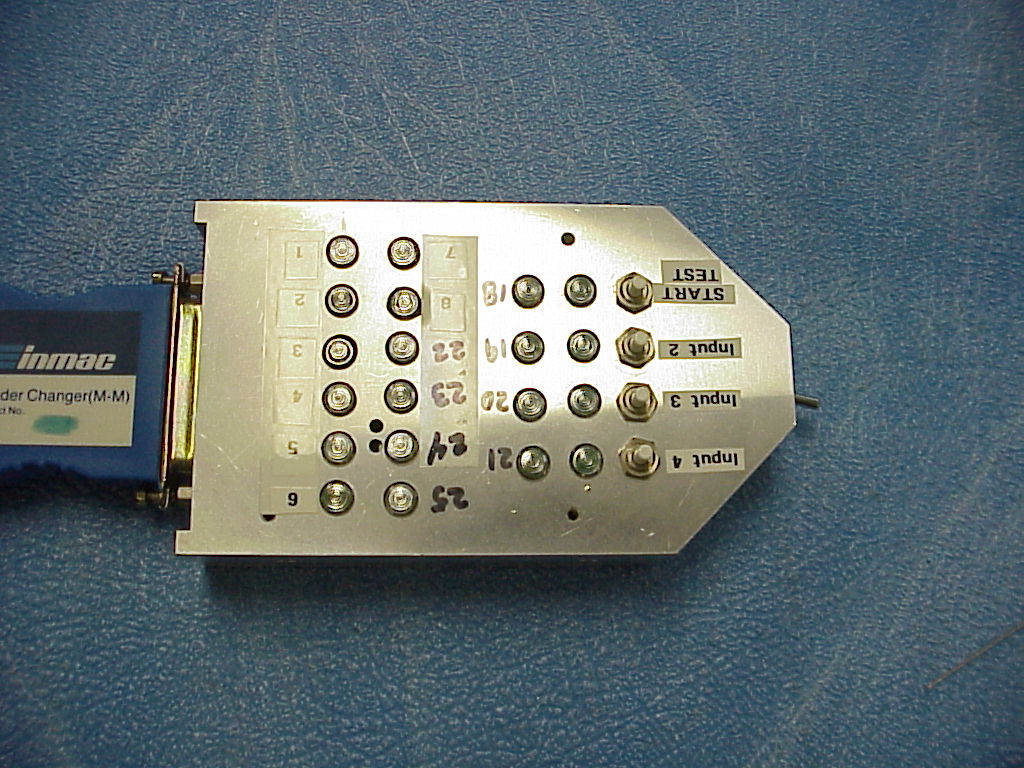

Single Site Interface:
ROOS parallel interface to Rasco SO1000 using handler interface CS1..4
Cable: Connector on handler side of cable is a D-Sub 25 pin male @1EA.
Length 12'

RI8503A0 and RI8517A to Rasco SO1000 Pin coordinatation
Mode = Asynchronous 1-16 with EOT
Handler Pod
Rasco SO1000
25 DSUB to Pod
25 DSUB #1 to Handler
RI8503A0 / RI8517A
to Rasco SO1000
Pin#
Pin#
Function
Cable Wire Color
1
14
Bin1/Category 1
Brown
2
2
Bin2/Category 2
Red
3
15
Bin3/Category 3
Orange
4
3
Bin4/Category 4
Coral
5
16
Bin5/Category 5
Yellow
6
4
Bin6/Category 6
Green
7
17
Bin7/Category 7
Aqua
8
5
Bin8/Category 8
Blue
9
NC
10
9
Start Test/SOT
Grey
11
Attach to +V pod pin# 13
White
12
12
Gnd/Tester Ground
Black
13
+5V/NC
Brown/White
14
+5V/NC
15
NC
16
NC
17
NC
18
NC
19
NC
20
NC
21
NC
22
18
Bin9
Blue/White
23
6
Bin10
Purple/White
24
19
Bin11
Gray/Black
25
10
EOT/EOT
Black/White
Clear (2)
Ground
Clear
Notes:
1. Plug in the male 25 pin dsub to CS1 for operation on site 1.
2. Clear Wire should be attached to pin 12 of connector.
3. 10K pull-up resistors need to be installed at pins 10 and 15 to pin 13(+5V).


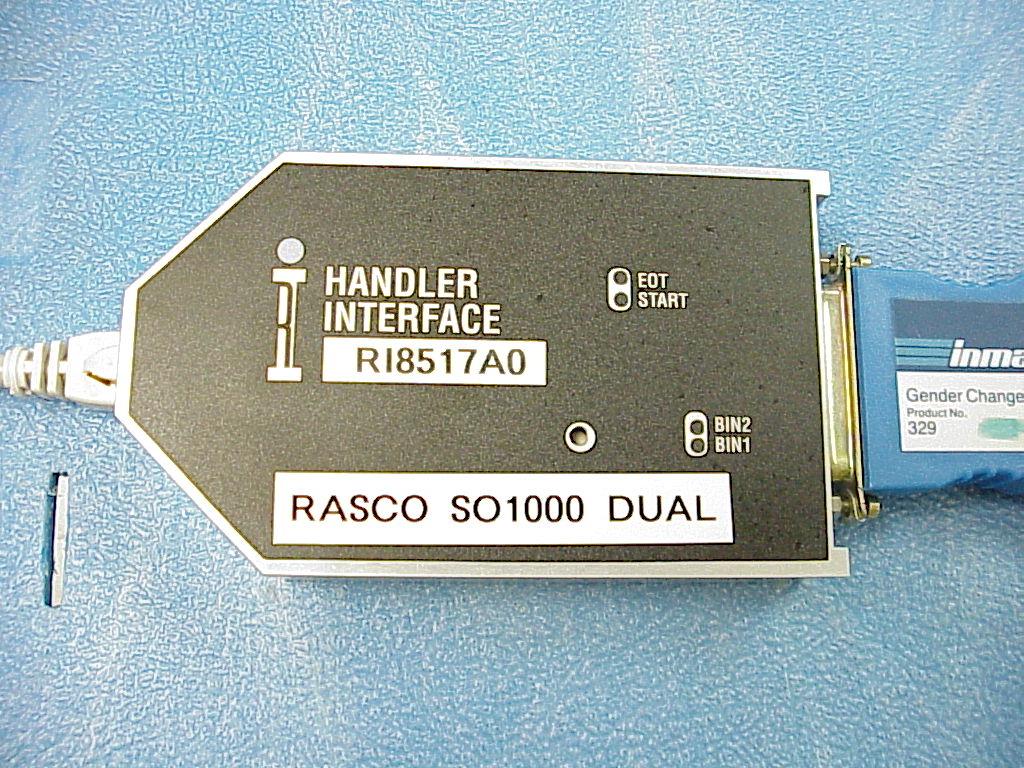

Dual Site Interface:
ROOS parallel interface to Rasco SO1000 using handler interface CS1..4
Cable: Connector on handler side of cable is a D-Sub 25 pin male @2EA
Length 12'

RI8503A0 and RI8517A to Rasco SO1000 Pin coordinatation
Mode = Asynchronous 1-16 with EOT
Handler Pod
Rasco SO1000
25 DSUB to Pod
25 DSUB #1 to Handler
25 DSUB #2 to Handler
RI8503A0 / RI8517A
to RascoSO1000
Pin#
Pin#
Pin#
Function
Cable Wire Color
1
14
14
Bin1/Category 1 Site1
Brown
2
2
2
Bin2/Category 2 Site1
Red
3
15
15
Bin3/Category 3 Site1
Orange
4
3
3
Bin4/Category 4 Site1
Coral
5
16
16
Bin5/Category 5 Site1
Yellow
6
4
4
Bin6/Category 6 Site1
Green
7
17
17
Bin7/Category 7 Site1
Aqua
8
10
EOT Site1
Blue
9
NC
10
9
Start Test/SOT Site1
Grey
11
12
12
12
Gnd/Tester Ground
Black
13
+5V/NC
Brown/White
14
+5V/NC
15
9
Start Test/SOT Site2
Red/Black
16
NC
17
NC
18
16
Bin5/Category 5 Site2
Coral/Black
19
4
Bin6/Category 6 Site2
Yellow/Black
20
17
Bin7/Category 7 Site2
Green/White
21
10
EOT Site2
Green/Black
22
14
Bin1/Category 1 Site2
Blue/White
23
2
Bin2/Category 2 Site2
Purple/White
24
15
Bin3/Category 3 Site2
Gray/Black
25
3
Bin4/Category 4 Site2
Black/White
Clear (2)
Ground
Clear
Notes:
1. Plug in the male 25 pin dsub to CS1 for operation on site 1.
2. Plug in the male 25 pin dsub to CS2 for operation on site 2.
3. Clear Wire should be attached to pin 12 of connector.
4. 10K pull-up resistors need to be installed at pins 10 and 15 to pin 13(+5V).
