RI Title
RI logo

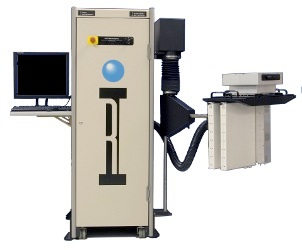

Cassini Infrastructure (RI8556A)

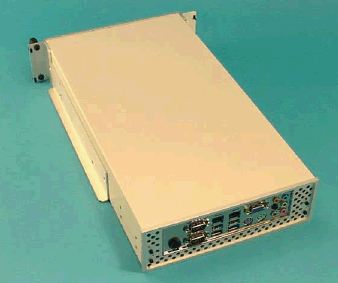

Includes Rack, Testhead, Manipulator, System Controller, Power Supplies

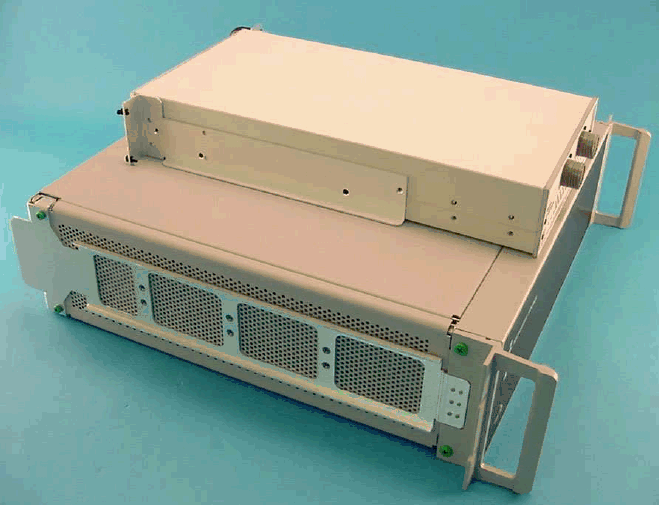

Cassini Small Cassini 16

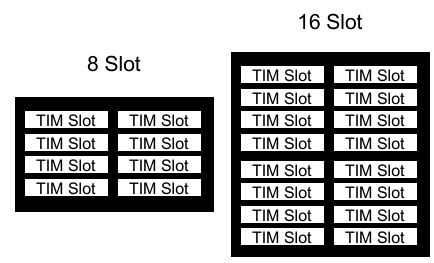

Test Head Configurations

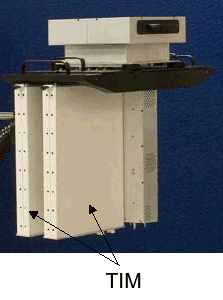

Typical Testset TIM (Tester Instrument Module)

4 ports

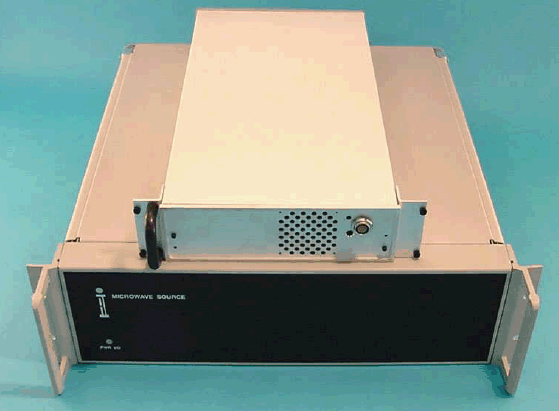

External CW Synthesi
External DMSG
External Receiver
20 GHz RF Testset
Same Hardware as RI7100A RF

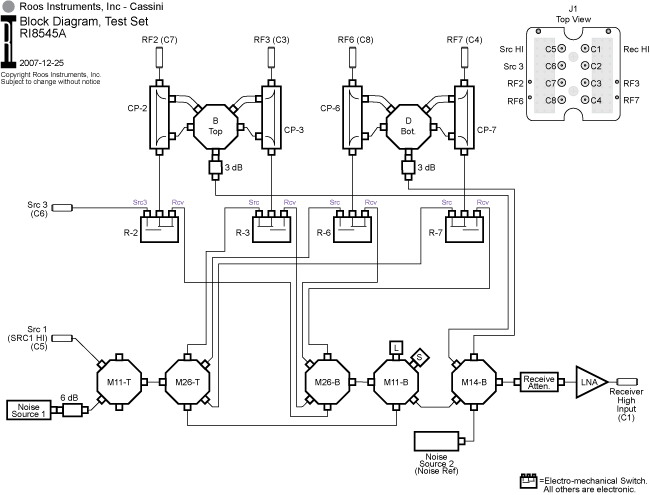

Testset TIM (RI8545A)

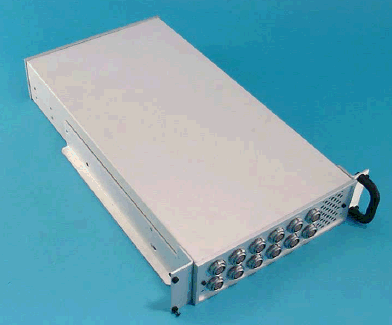

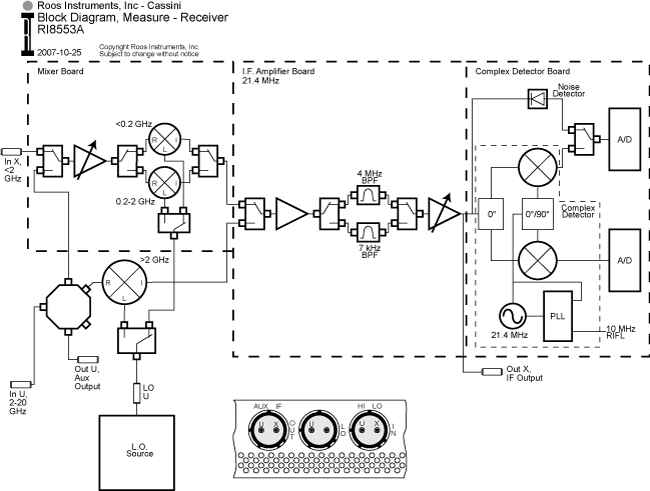

Receiver (RI8553A)


Receiver (RI8553A)

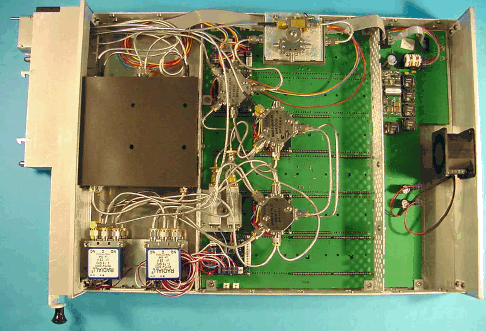

Source and Amp Attenuator Picture (RI8555A)

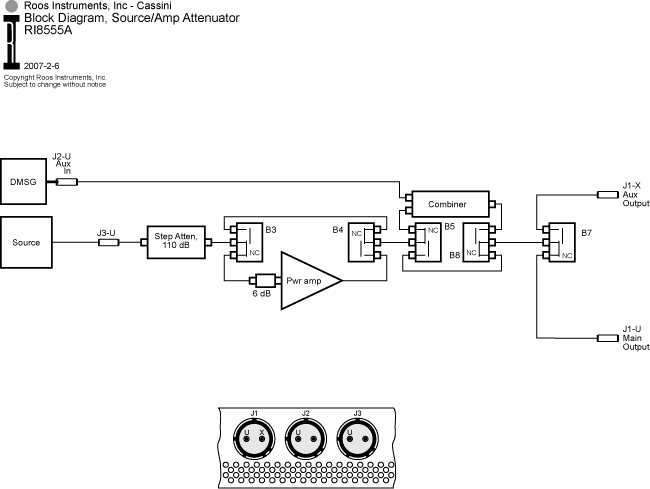

Source and Amp Attenuator Block Diagram (RI8555A)
