Rethink DUT Interface Design

Next Section

'Simple' Device Interface Board (SimpleDIB™)

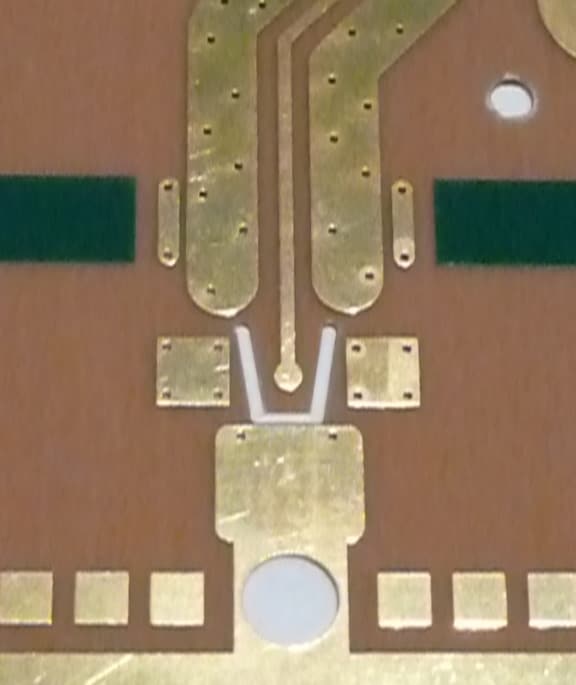

RI DIB board design
  • Only 12mm dual-layer PCB designed in hours, that costs less & fails less.
  • Launch RF & DC resources near the DUT pins.
  • Quick Lock™ DIB Support withstands high test volume and swaps in seconds.
  • 20 GHz Blind-mate interfaces
  • 40 GHz cable launches
  • Waveguide horns for contactless test beyond 80 GHz

Device is closer to the instruments, shorter RF paths reduce noise and path loss. Roos Instruments' years of RF DIB board design experience can be leverged to develop your own solutions to all of your device testing needs.

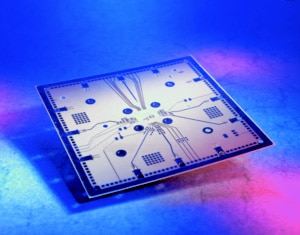

RI DUT Board design
