The presentation is identical to the printed materials for this chapter.

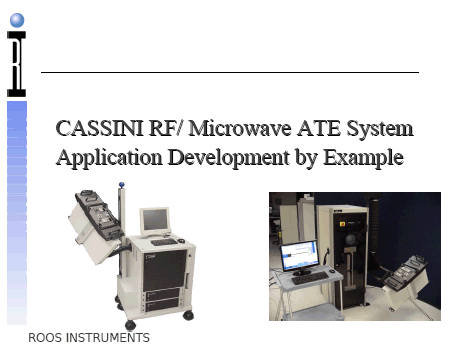

Cassini Basic Training Slides - CH 6 Application Development by ExampleLNA Tests
- DC Currents & Beta
- S11, S21, S12 & S22
- Noise Figure
- P1dB
- Intermodulation Distortion
- Harmonics
- More...
PA Tests
- DC Current & PAE
- S11, S21, S12 & S22
- Noise Figure
- P1dB
- Intermodulation Distortion
- Harmonics
- ACPR @ Specified Output Power
- PAR
- EVM
