RIK0219A
Fixture Module, VI Filter

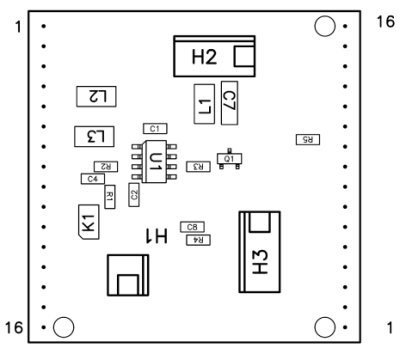

Y000BWA VI Filter Pin Out
Pin# | Function | Note | Connector Type |
P1:6 | +15V |  | 16 Header Pin |
P2:10 | 3.3V | | 16 Header Pin |
P1:12 | DS1 Cap Control | 0 Fast 1 Slow | 16 Header Pin |
H1:1 | GND | | 2 Pin Header |
H1:2 | V Control | Connect to Low Current DP | 2 Pin Header |
H2:1 | GND | | 4 Pin Header |
H2:2 | GND | | 4 Pin Header |
H2:3 | VI BULK IN | Set to +1V over Max Out | 4 Pin Header |
H2:4 | VI BULK IN | Set to +1V over Max Out | 4 Pin Header |
H3:1 | GND VI RTN | | 4 Pin Header |
H3:2 | Vout RTN Sense | | 4 Pin Header |
H3:3 | Vout Sense | | 4 Pin Header |
H3:4 | Vout | | 4 Pin Header |
