Cassini Infrastructure (RI8556A)


Includes Rack, Testhead, Manipulator, System Controller, Power Supplies

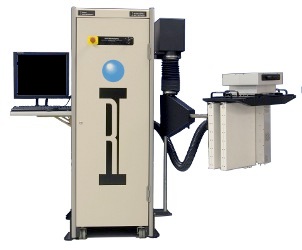

Cassini 16 Cassini Small

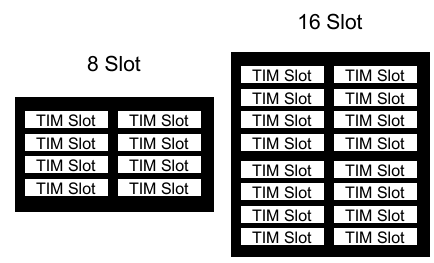

Test Head Configurations

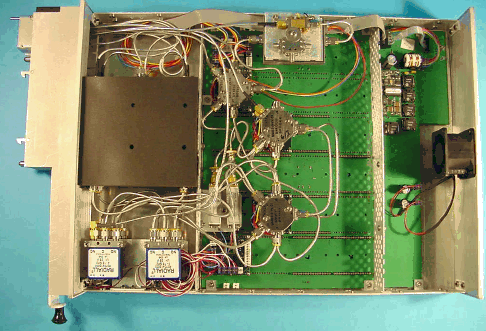

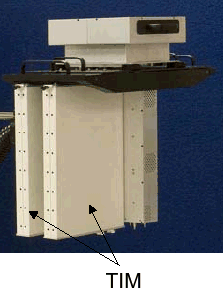

Typical Testset TIM (Tester Instrument Module)

4 ports
External CW Synthesi
External DMSG
External Receiver
20 GHz RF Testset
Same Hardware as RI7100A RF

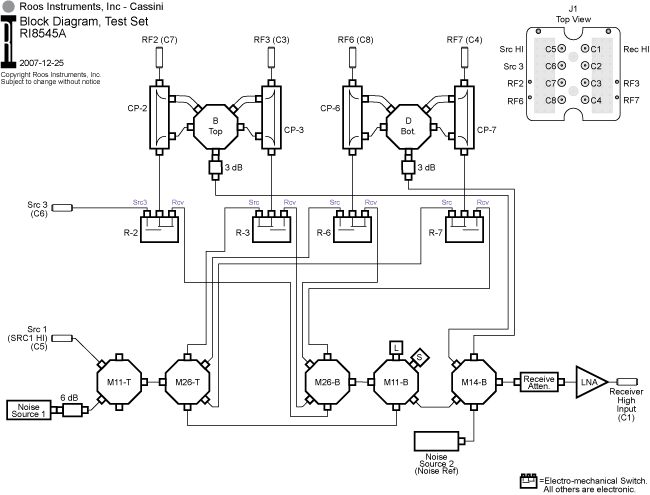

Testset TIM (RI8545A)

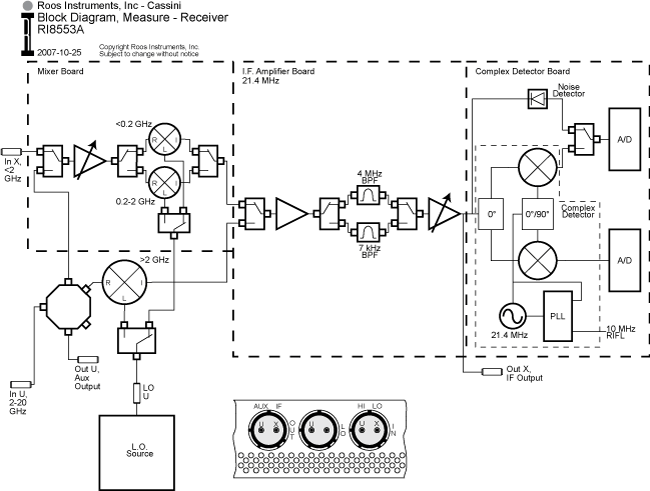

Receiver (RI8553A)


Receiver (RI8553A)



Source and Amp Attenuator Picture (RI8555A)

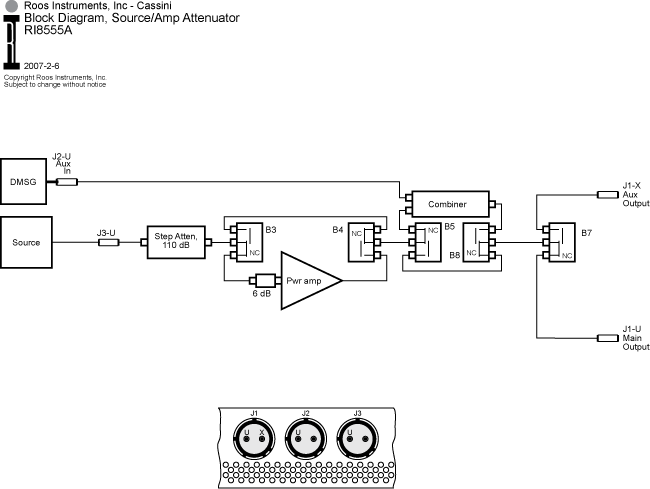

Source and Amp Attenuator Block Diagram (RI8555A)
