This document lists the pinouts for the 25 pin D-Sub female connector on the RI8517A handler pods. The Ri8517A pod is an open collector drive device. Because of the nature of OC drive, it is typical to have pull up resistors on the lines at the terminating end equipment. There are situations where the terminating equipment may not have a pullup voltage present needed for the pullup resistors. In that situation, the Ri8517A pod provides a resettable polyfuse protected +5V source. This voltage is provided on PINS 11, 13 and 14. All Ri8517A pods manufactured from July 2000 forward have this internally jumpered and enabled.

If the terminating equipment has pull up resistors tied to an appropriate (+5V) pull up voltage, a connection to PINS 11, 13 and 14 is not needed.


RI8517A
Pin #
Single SiteDual SiteDSUB Color
MFSHLX1A
Handler Pin
1
Bin 1Bin 1, Site 1BLK/RED
2
Bin 2Bin 2, Site 1RED/BLK
3
Bin 3Bin 3, Site 1BLK/WHT
4
Bin 4Bin 4, Site 1WHT/BLK
5
Bin 5Bin 5, Site 1BLK/GRN
6
Bin 6Bin 6, Site 1GRN/BLK
7
Bin 7Bin 7, Site 1BLK/BLU
8
Bin 8EOT Site 1 BLU/BLK
9
NCNCBLK/YEL
10
SOT (*1)SOT Site 1 (*1)YEL/BLK
11
+5V+5VBLK/BRN
12
Gnd/Tester GndGnd/Tester GndBRN/BLK
13
+5V Handler+5V HandlerBLK/ORG
14
+5V+5VORG/BLK
15
Do Not Use (*2)SOT Site 2 (*1)RED/WHT
16
NCNCWHT/RED
17
NCNCRED/GRN
18
Do Not Use (*2)Bin 5, Site 2GRN/RED
19
Do Not Use (*2)Bin 6, Site 2RED/BLU
20
Do Not Use (*2)Bin 7, Site 2BLU/RED
21
Do Not Use (*2)EOT Site 2RED/YEL
22
Bin 9Bin 1, Site 2YEL/RED
23
Bin 10Bin 2, Site 2RED/BRN
24
Bin 11Bin 3, Site 2BRN/RED
25
EOTBin 4, Site 2RED/ORG
*Notes: (all values are output except PIN 13, +5V Handler provides clamp voltage)
  1. A 10K ohm resistor should be installed between each SOT (Start Of Test) pin and pin 13 (+5V for pull up) or pin 12 (ground for pull down).
  2. This pin is not used for single site, but is internally connected. Do not connect it to anything.
  3. The +5V is not protected against outside voltage. Voltages less than +5V should not damage the module but voltages over +5V will cause damage.

For RI8503 PODs manufactured prior to 2000, pinout is also listed below (click on triangle to see)
Pin #
RI8503A OBSOLETE
Single Site
1
Bin 1
2
Bin 2
3
Bin 3
4
Bin 4
5
Bin 5
6
Bin 6
7
Bin 7
8
Bin 8
9
NC
10
SOT (2)
11
Clamp Voltage (1)
12
Gnd/Tester Gnd
13
+5V/NC
14
+5V/NC
15
NC
16
NC
17
NC
18
NC
19
NC
20
NC
21
NC
22
Bin 9
23
Bin 10
24
Bin 11
25
EOT

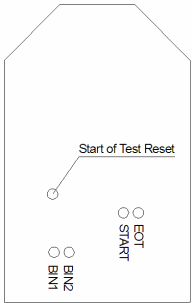

Handler Pod Diagram

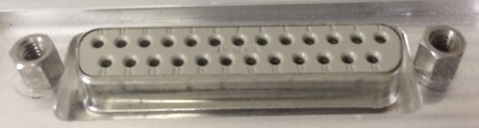

Female Pin 1 Red (top right) to pin 13 (top left), Pin 14 (bottom right) to Pin 25 (bottom left).

Cable requires Male DB-25 connector on this end, contact Handler/Prober manufacturer for other end.
SubjectWeb Address (URL)
Product Docs
Handler POD Custom Cable 25 Pin D-SUB Color Code (Part MFSHLX1A)http://roos.com/docs/DFES-4ZPQUF?Open


Internal wiring schematic.

Rev 8517A Pods
Y0001LC1 Diagram Letter.pdf

Rev 8517B Pods
Y000CVA1 Opto Isolated POD.pdfY000CVA1 Opto Isolated POD.pdf
