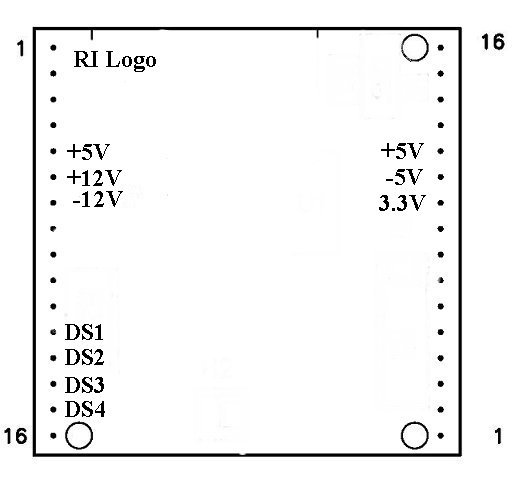

Purpose: To describe in one document the current and voltages needed to drive each of the available fixture modules. Test conditions are set for maximum current drain.




Module
RIK#
Module
Description
Fab#
Test Conditions
I Drain
5V Typ
I Drain
-5V Typ
I Drain
12V Typ
I Drain
-12V Typ
I Drain
3.3V Typ
RIK0006A
or B
Dual SPDT Switch
Y0002UB1
Both switches in NO position
0.9mA
RIK0013B
Smart Carrier
Y0002AC1
Idle -No modules installed
140mA
0mA
RIK0014B
Smart Carrier
12RF
Y0004VA1
Idle -No modules installed
130mA
0mA
RIK0015A
Diff I/O
Y0002OB1
-11 dBm at input
80 mA
50 mA
RIK0017A
High Speed Dig
Y000LB3
Y0004NB1
Idle
51ma
0ma
RIK0026B
SPDT
Switch
Y00036C1
Both switches in NO position
0.9mA
0mA
RIK0054B
3GHz Divider/
SPDT
Y0005HB0
Divider Fully Enable to 256 divide ratio.Switch set to NO
32mA
2.5mA
RIK0055A
SPDT/High Pass Filter
Y0005NA1
Both switches to Low
2mA
0mA
RIK0056A
SP4T
Switch
Y0004TB1
Both switches in full NO position
9mA
0mA
RIK0058A
SPDT Switch
Y0004CC1
Both switches in NO position
2mA
0mA
RIK0059A
Step Atten & LNA
Y0004MA1
Needs Data
Needs Data
Needs Data
Needs Data
RIK0077A
HBW Diff I/O
Y00062A1
-11 dBm at input
70 mA
70 mA
RIK0084A
Smart Carrier 20/30RF
Y00065A1
Idle -No modules installed
170 ma
0mA
RIK0088A
1X32, 2X16
DC Mux
No Connections
20 ma
6 ma
3 ma
RIK0092A
4 Step Attenuator
0dB Step
1 ma
6 ma
RIK0127A
HS Digital Scan
Y0008NA1
Scan Mode
120 ma
0 ma
