The RIK0017A is a high speed digital I/O module which allows for DUT programming and reading digital words from a DUT. Each module has two complete digital channels ( clock, strobe, data, read, and enable/reset ). It is fixture based and designed to provide device specific high speed serial bus source and measure. Its speed is 80 MHz on up to 10 pins depending on mode.



Notes On Usage:
If specific strobe to clock edge synchronization is required please consider the RIK0127A HS Digital Scan Module.

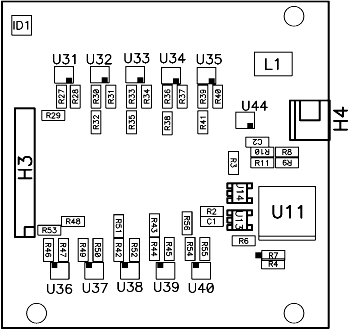

Module Top View:

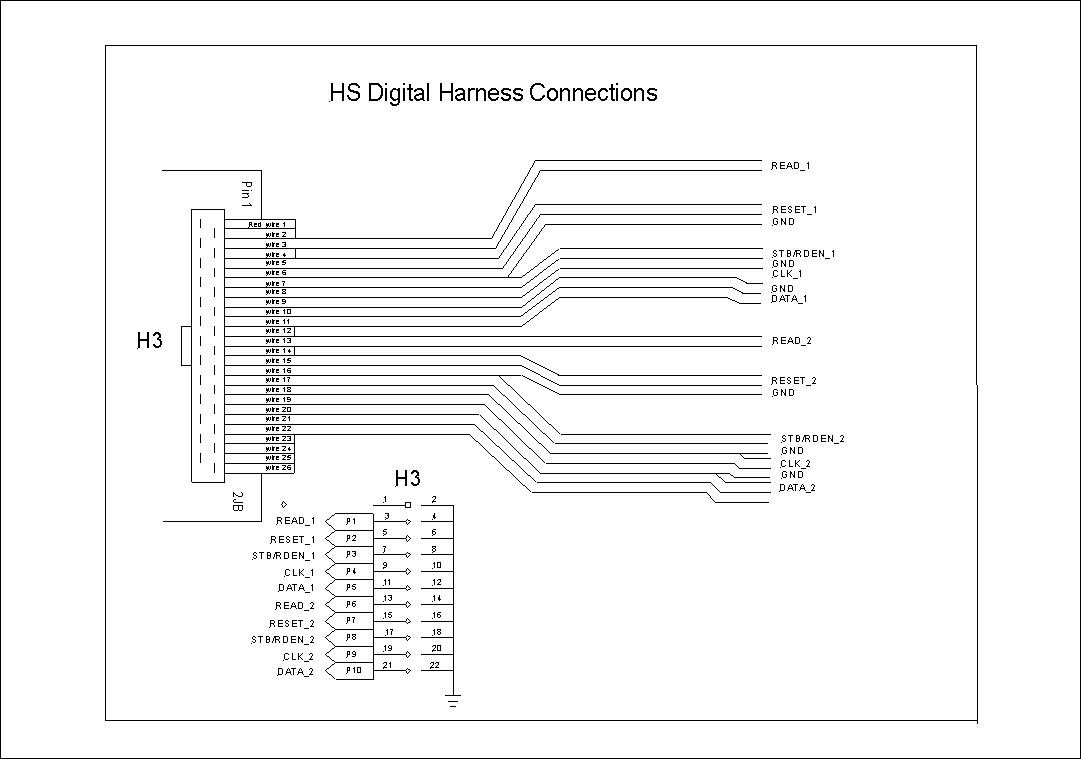

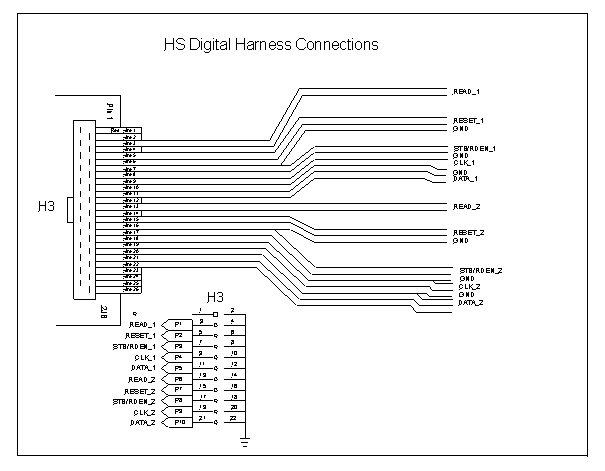

Harness Connections:



Fixture HSDigHarnessRevD.jpgFIXTDIGITALHARNESSREVD.JPG

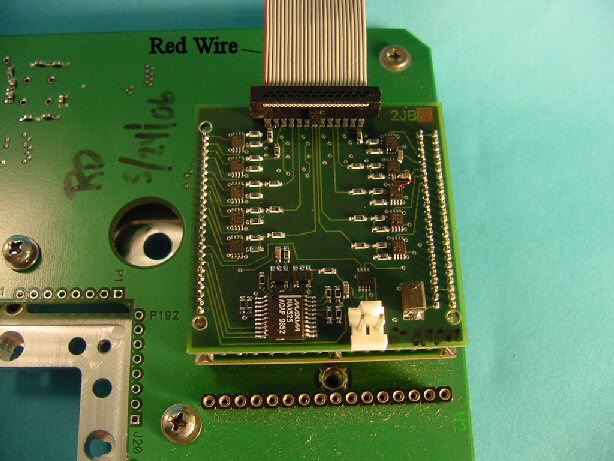

Harness Connected to Module:




Configuring the Carrier:

RIK0017A_HSDigConfiguration.odp RIK0017A_HSDigConfiguration.pdf
