Screen Capture Example:

change cal data.avi

To change the active version of the calibration for any Cassini instrument, Fixture or Device Interface.

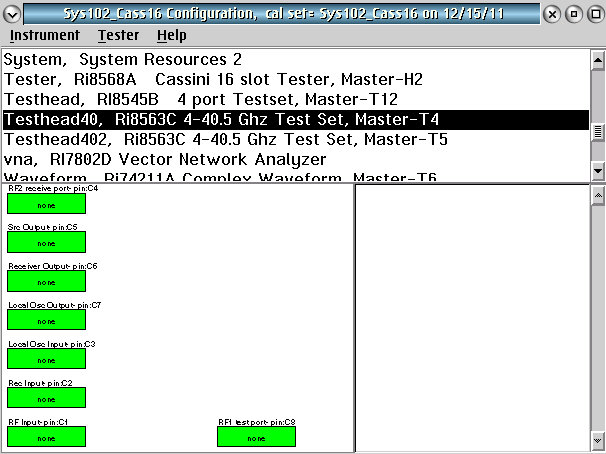

1.) Open the Tester Configuration Window (Syster>Tester). Select the desired instrument.

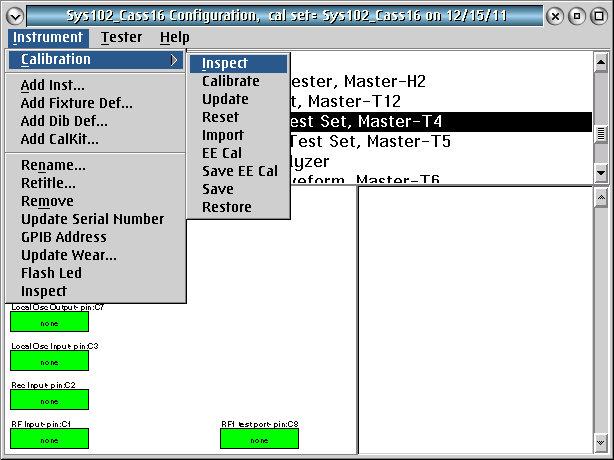

2.) Choose Instrument>Calibration>Restore

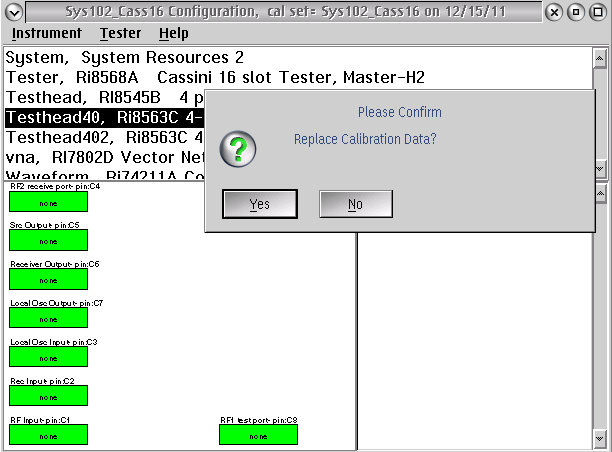

3.) When given the replace option selct yes.

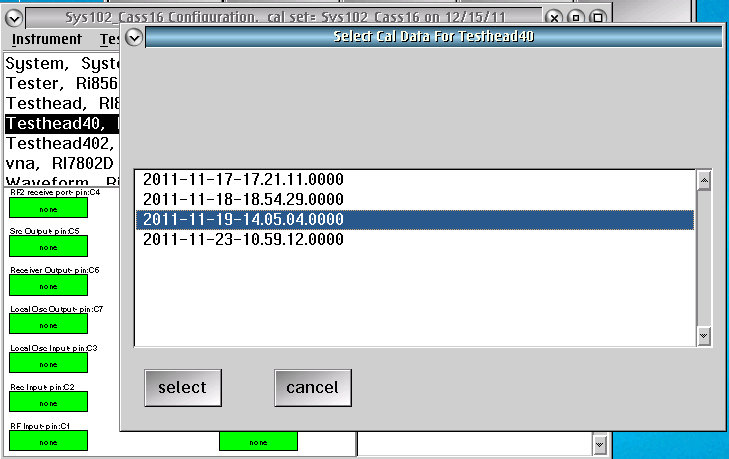

4.) Select the appropriate version of the cal.


Then Save the Calibration> Instrument>Calibration>Save
