The RIK0059A is a dual function Module. It incorporates a 0 - 30 dB step attenuator and 3GHz LNA.

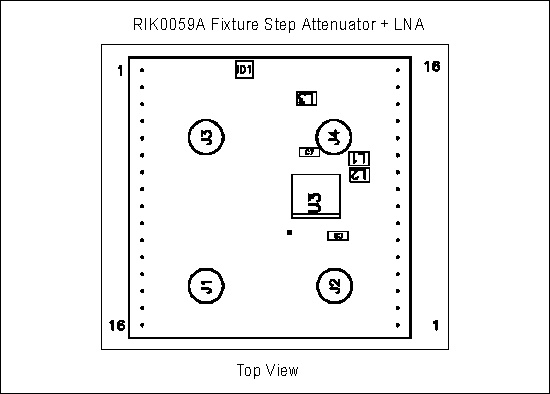

Pin Out
Pin# | Function | Notes: |
J1 | Attenuator Input or Output | Attenuator is Symetric |
J2 | Attenuator Input or Output | Attenuator is Symetric |
J3 | LNA Input | ![]() |
J4 | LNA Output | ![]() |
Fixture requirements:
1. Smart Carrier (RIK0014A or B).
2. Press in connector strips ( 16 pin ) installed at desired module locations ( M1 - M8 ).
3. Bench Top DC Voltage Requirements: +5V / -5V / +3.3V ( 3.3V only required if running LNA)
Coding Requirements:
![]() Fixture Carrier Position# | ![]() Switch Code Prefix |
![]() M1 | ![]() S1 |
![]() M2 | ![]() S2 |
![]() M3 | ![]() S3 |
![]() M4 | ![]() S4 |
![]() M5 | ![]() S5 |
![]() M6 | ![]() S6 |
![]() M7 | ![]() S7 |
![]() M8 | ![]() S8 |
RF Attenuator Control Programming:
1. When writing to a Smart Carrier Cbit the format is of S#XXXX
S = S, # = Module number being written to, X = 1, X, or 0.
0 = closed (0V) and 1 = open (3.8V)
Bit position = S# DS1 DS2 DS3 DS4
Attenuator Truth Table
Attenuator Setting (dB) | Switch Code |
2 (min) | S#1001 |
4 | S#0001 |
6 | S#1101 |
8 | S#0101 |
10 | S#1000 |
12 | S#0000 |
14 | S#1100 |
16 | S#0100 |
18 | S#1011 |
20 | S#0011 |
22 | S#1111 |
24 | S#0111 |
26 | S#1010 |
28 | S#0010 |
30 | S#1110 |
32 | S#0110 |
Attenuator Electrical Specs
Parameter | Typical | Units |
Min Insertion Loss | 3dB | dB |
Minimum Freq 3dB | 60 | MHz |
Maximum Freq 1dB | 2.5 | GHz |
Max insertion Loss | 30 in2dB steps | dB |
Return Loss | 12dB | dB |
Input Power 1dB | 24 | dBm |
IIP3 | 44 | dBm |
tRISE, tFALL (10%/90% RF) | 140 | ns |

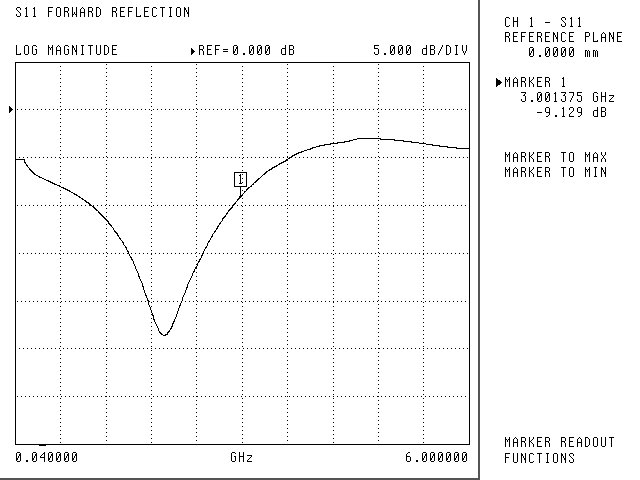

LNA Electrical Specs
|
|
|
