General:


The smart carrier board is the heart of most RI fixtures and has many advantages over its passive counterpart.
For example the smart carrier board provides four control lines for each of its module locations (eight for the 12RF and 10 for the 20RF styles). The passive carrier board does not. Also the smart carrier board provides for clock, strobe, read, and write on two of its ten module positions (M1 and M5). This provides for the control of fixture modules and functions that require more than simple static digital control.

Switch Field Command Types:

1. Basic Static Digital - Examples include SPDT and SP4T switches, Enable/Disable funtions on modules,
divider ratio selections, and programmable attenuator settings.
      When writing to a Smart Carrier module control line the format is of S#10X1
      S = S, # = Module number being written to (M1-MA), X = 1, X, or 0.
      Bit position = S# DS1 DS2 DS3 DS4

      Ex. The string S6XX01 would drive DS3 low ( 0.0V ) and DS4 high (3.8V) on the fixture module placed at the physical location of M6 on the smart carrier.
2. There are eight usable Cbit drivers found on the 40 pin headers of the smart carrier board.

When writing to a standard Cbit ( found on the fixture carrier board ) the format is of CXY
C = C, X = control bit used, Y = 1 or 0.

1 = Open
0 = Closed

      Ex. C20 Sets the standard Cbit#2 low. To combine this with a Smart Carrier control string, add it to the front of the overall string. The string C20S6XX01 sets standard Cbit#2 low, sets DS3 low, and sets DS4 high on the fixture module found at M6.
3. "A" Type Commands - Examples include 1X32, 1X16, 8X24 muxes. These modules typically need a serial string for control due to the number of possible conditions.

When writing to a module requiring an "A" type command the format is A#SW=N+alpha
A=A for action, # = Module number being written to (M1-MA), N+alpha = a number plus letter
(Ex. 16a) which refers to a specific configuration of the module.

4. "M" Type Commands: Please see specific module specifications (Cbit Expander module).


Module Placement Selection Criteria:
Socket
Functionality
Select
Socket
Command Types
Examples
Also Supported
Modules requiring a high speed clock (400KHz) or register writesM1,M5"S" type, and "M" type

S3 used as clock in high speed clock applications.
High Speed Digital
Fixture Mux
All other Fixture Modules
Modules requiring static data sets to set config. Includes register writes.M1-M8"S" type, and "M" type Switches and Attenuators
Fixture Mux
All other Fixture Modules not requiring a high speed clock input.
Subset of normal socket functionality. Does not include register write commands ("M" type).M9&M10
super smart carrier only (Y00065A)
"S" type only.Switches and Attenuators
Excludes all modules needing "M" type control.
Fixture Mux and Cbit Expander modules will not work here.


Note: This document is designed to provide a truth table and pin out reference only. For detailed performance specifications for these modules, please refer to the specific document for the module.


Kit Part Number: RIK0039A
Fab#: Y0004KB1
Description: 40V Buffer

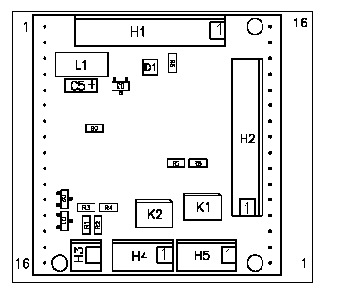

RIK0039A 40V Buffer Pin Out
Description
Connection
Type
Notes
Out2
H2-1
Header Pin
/ENAOUTPUT Enabled Vout = Vin X 4
Out1
H2-2
Header Pin
/ENAOUTPUT Enabled Vout = Vin X 4
Vin2
H3-3
Header Pin
Vin1
H3-4
Header Pin
/ENOUTPUT
H3-1
Header Pin
Enables Output (Low)
/ENA PWR
H3-2
Header Pin
Enables Power (Low)
MON I2
H1-2
Header Pin
Monitor I2 Load Current = (Vmeas @ MonI2) / 1000
MON V2
H1-3
Header Pin
Monitor V2 Vmon2 = 392K/1.392M X Out2
MON I1
H1-4
Header Pin
Monitor I1 Load Current = (Vmeas @ MonI1) / 1000
MON V1
H1-5
Header Pin
Monitor V1 Vmon1 = 392K/1.392M X Out1
GND
H1-1/6
Header Pin
      40V Buffer Truth Table
40V Buffer
Switch Code
Disable Power
S#11XX
Enable Power
S#00XX




Kit Part Number: RIK0053A
Fab#: Y0001QA3

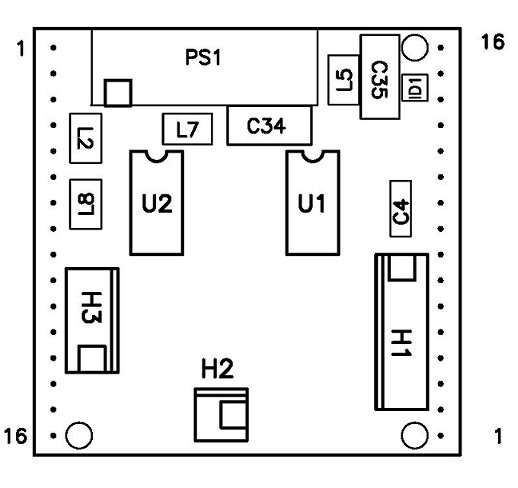

Description: Fixture Cbits Controller




Pin Out:

Header #
Pin#
Function
1
1
Cbit 8
1
2
Drive voltage
1
3
Cbit 7
1
4
Drive voltage
1
5
Cbit 6
1
6
Drive voltage
1
7
Cbit 5
1
8
Drive voltage
1
9
Drive Voltage Input
1
10
Gnd Connect
2
1
Cbit 1
2
2
Drive voltage
2
3
Cbit 2
2
4
Drive voltage
2
5
Cbit 3
2
6
Drive voltage
2
7
Cbit 4
2
8
Drive voltage
2
9
Drive Voltage Input
2
10
Gnd Connect
Note:
Pins 2,4,6,8, and 9 on headers 1&2 are common.

Fixture requirements:
1. Smart Carrier (RIK0014A).
2. Press in connector strips ( 16 pin ) installed at desired module locations ( M1 - M16 on 2AC1), (M1-M8 on 4AV1), (M1-MA on 65A1).
3. Bench Top DC Voltage Requirements: +5V / +12V
4. When writing to a Smart Carrier Cbit Module the format is of M#AXXXXXXX.
M = M, # = Module number being written to, A = A, X = 1, X, or 0.

Ex.: M4AXXXXXX1X Writes to Smart Module #4 and sets bit#2 low.

Opto Cbits Programming:
1. When writing to a Smart Carrier Opto Cbit the format is of:
S#1XX1
S = S, # = Module number being written to, X = 1, X, or 0.
0 = closed (0V) and 1 = open (3.8V)

Bit position = S# DS1 DS2 DS3 DS4



Kit Part Number: RIK0054A
Fab#: Y0005HA0

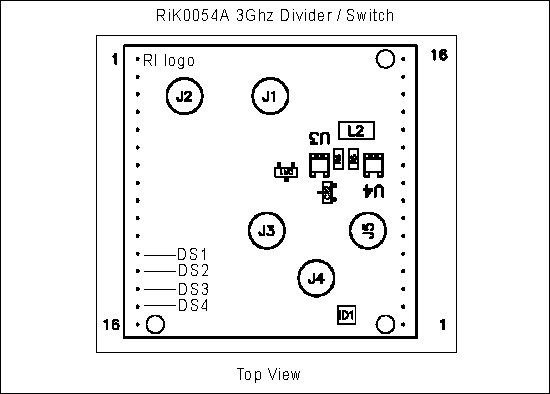

Description: 3GHz Divider / SPDT RF Switch

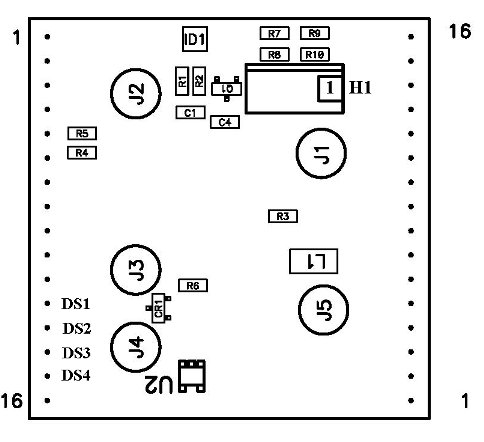

Y0005HA1 3GHz Divider / SPDT Switch Pin Out
PIN#
FunctionNotes:
J1
Divider InputMax Power in = 10dBm, fin(lower typical) = 40Mhz @ 6dBm in.
J2
Divider OutputSquare wave, divider ratio is statically set by 0 ohm resitors to ground or +5V (DS2 and 3 ).

Divider Truth Table
Enabled
Disabled
fin/256
fin/128
fin/64
DS1
0
1
0
0
0
DS2
X
X
0
0
+5
DS3
X
X
0
+5
+5

Control Type Table
Cbit
Smart Carrier
Hard Wire
0 to 5V Res
DS1
Yes
Yes
N/A
Yes
DS2
Yes
No
Yes
Yes
DS3
Yes
No
Yes
Yes
DS4
Yes
Yes
N/A
Yes
J3
Switch output NOS#XXX0 1K resistor to 5V required if using standard cbit.
J4
Switch inputMax input +24dBm, input 1dB comp typical = 21dBm
J5
Switch output NCS#XXX1 1K resistor to 5V required if using satandard cbit.

Kit Part Number: RIK0054B
Fab#: Y0005HB0
Description: 3GHz Divider / SPDT RF Switch
