Purpose: To describe the RIK0055A High Pass Filter with SPDT and its use.



The RIK0055A is a dual function Module. It incorporates a switched 1.5 Ghz and 3 GHz High pass filter with an independantly controlled 3GHz SPDT non-reflective switch.

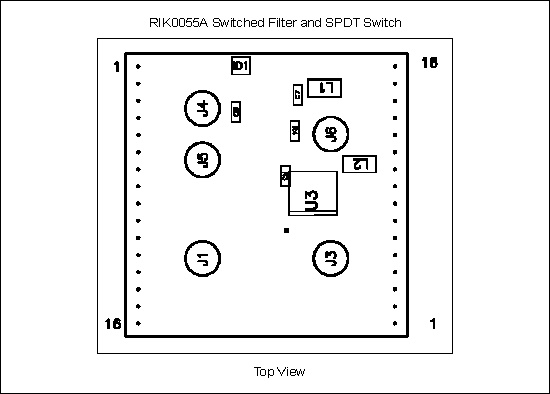

Pin Out:

Pin #
Function
Notes
J1
Filter Input 1.5GHz HPDS2 = LOW
J1
Filter Input 3GHz HPDS2 = HIGH
J3
Filter Section Output
J4
Switch NC PositionDS1 = HIGH
J5
Switch NO PositionDS1 = LOW
J6
Switch Common

Bench Top DC Voltage Requirements: +5V / -5V

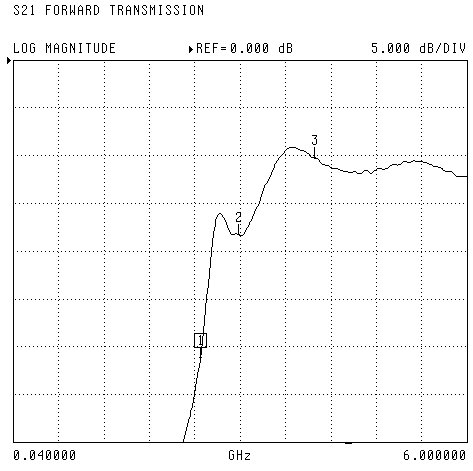

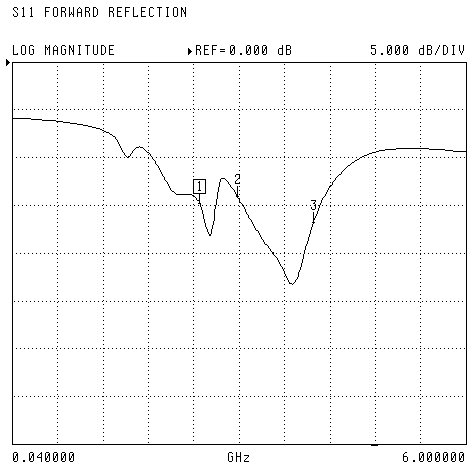

1.5Ghz HPF Response



Marker 1 = 1.5GHz
Marker 2 = 2GHz
Marker 3 = 3GHz





Marker 1 = 1.5GHz
Marker 2 = 2GHz
Marker 3 = 3GHz

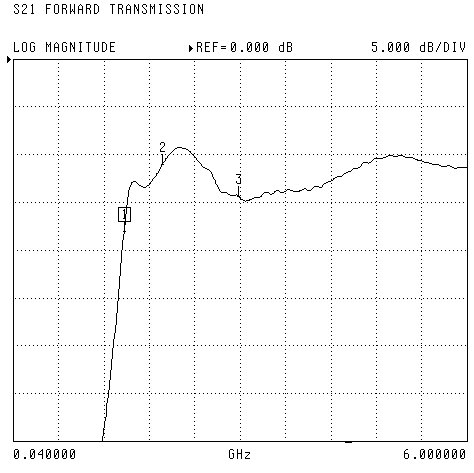

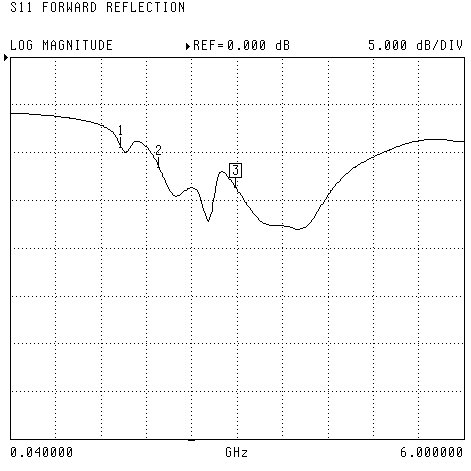

3.0 Ghz HPF Response



Marker 1 = 2.5GHz
Marker 2 = 3GHz
Marker 3 = 4GHz




Marker 1 = 2.5GHz
Marker 2 = 3GHz
Marker 3 = 4GHz
