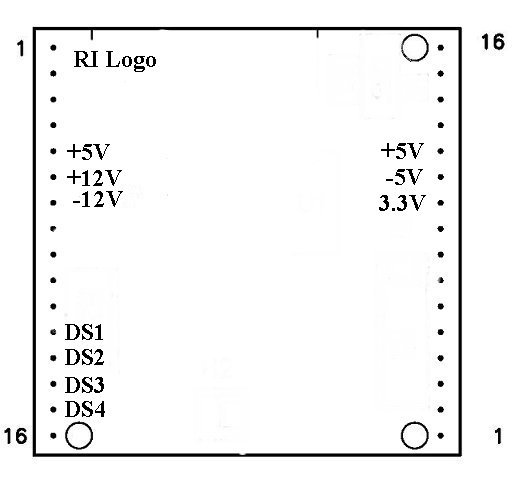

Purpose: To describe in one document the current and voltages needed to drive each of the available fixture modules. Test conditions are set for maximum current drain.
| Module RIK# | Module Description Fab# | Test Conditions | I Drain 5V Typ | I Drain -5V Typ | I Drain 12V Typ | I Drain -12V Typ | I Drain 3.3V Typ |
RIK0006A or B | Dual SPDT Switch Y0002UB1 | Both switches in NO position | 0.9mA |  | | | |
RIK0013B | Smart Carrier Y0002AC1 | Idle -No modules installed | 140mA | 0mA | | | |
RIK0014B | Smart Carrier 12RF Y0004VA1 | Idle -No modules installed | 130mA | 0mA | | | |
RIK0015A | Diff I/O Y0002OB1 | -11 dBm at input | | | 80 mA | 50 mA | |
RIK0017A | High Speed Dig Y000LB3 Y0004NB1 | Idle | 51ma | 0ma | | | |
RIK0026B | SPDT Switch Y00036C1 | Both switches in NO position | 0.9mA | 0mA | | | |
RIK0054B | 3GHz Divider/ SPDT Y0005HB0 | Divider Fully Enable to 256 divide ratio.Switch set to NO | 32mA | 2.5mA | | | |
RIK0055A | SPDT/High Pass Filter Y0005NA1 | Both switches to Low | 2mA | 0mA | | | |
RIK0056A | SP4T Switch Y0004TB1 | Both switches in full NO position | 9mA | 0mA | | | |
RIK0058A | SPDT Switch Y0004CC1 | Both switches in NO position | 2mA | 0mA | | | |
RIK0059A | Step Atten & LNA Y0004MA1 | Needs Data | Needs Data | Needs Data | | | Needs Data |
RIK0077A | HBW Diff I/O Y00062A1 | -11 dBm at input | 70 mA | 70 mA | | | |
| RIK0084A | Smart Carrier 20/30RF Y00065A1 | Idle -No modules installed | 170 ma | 0mA | | | |
RIK0088A | 1X32, 2X16 DC Mux | No Connections | 20 ma | | 6 ma | 3 ma | |
RIK0092A | 4 Step Attenuator | 0dB Step | 1 ma | 6 ma | | | |
| RIK0127A | HS Digital Scan Y0008NA1 | Scan Mode | 120 ma | 0 ma | | | |
| | | | | | | |
