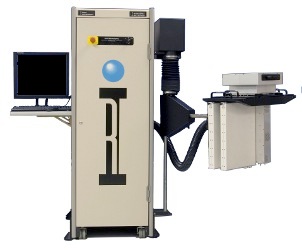

Cassini Infrastructure (RI8556A)
Includes Rack, Testhead, Manipulator, System Controller, Power Supplies

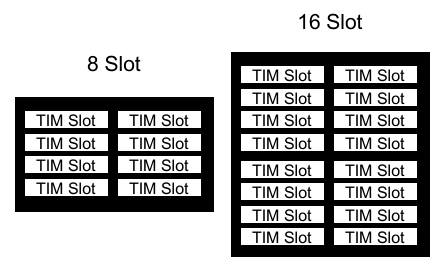

Test Head Configurations

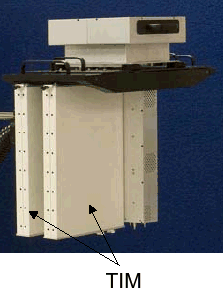

Typical Testset TIM (Tester Instrument Module)
4 ports

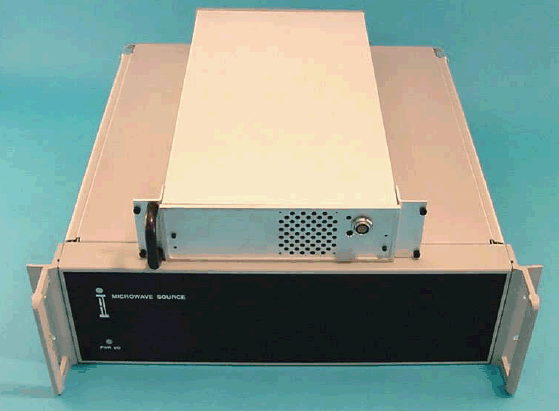

External CW Synthesi
External DMSG
External Receiver
20 GHz RF Testset
Same Hardware as RI7100A RF

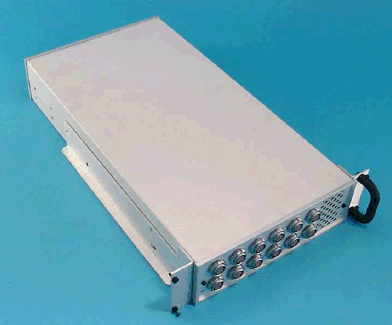

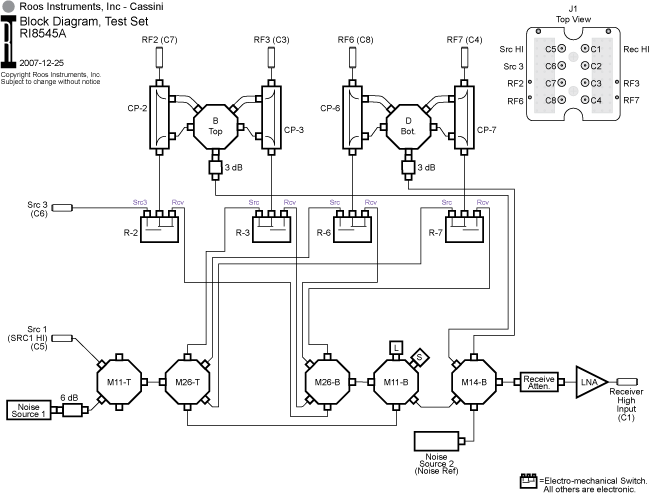

Testset TIM (RI8545A)

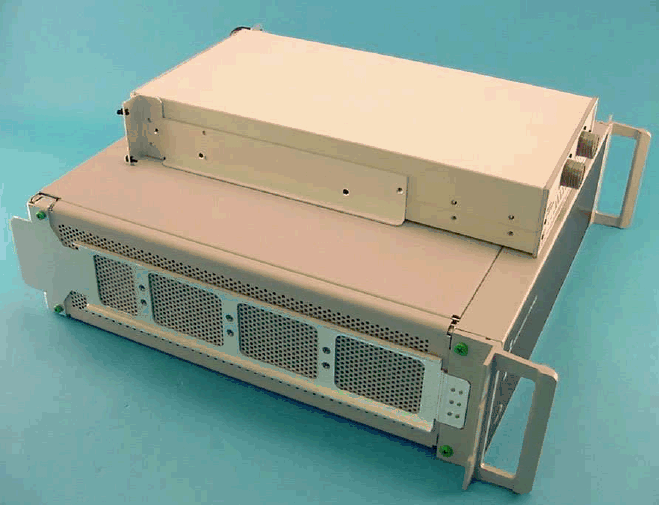

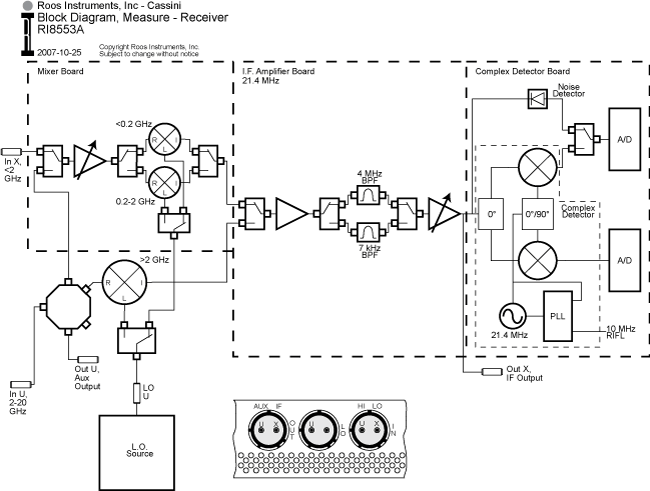

Receiver (RI8553A)
Receiver (RI8553A)

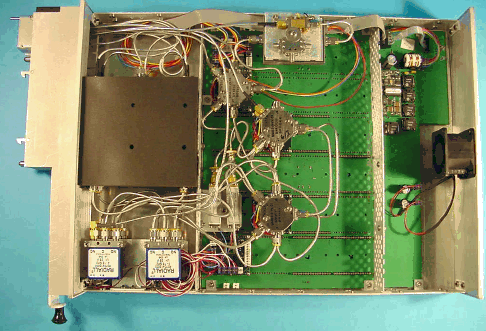

Source and Amp Attenuator Picture (RI8555A)

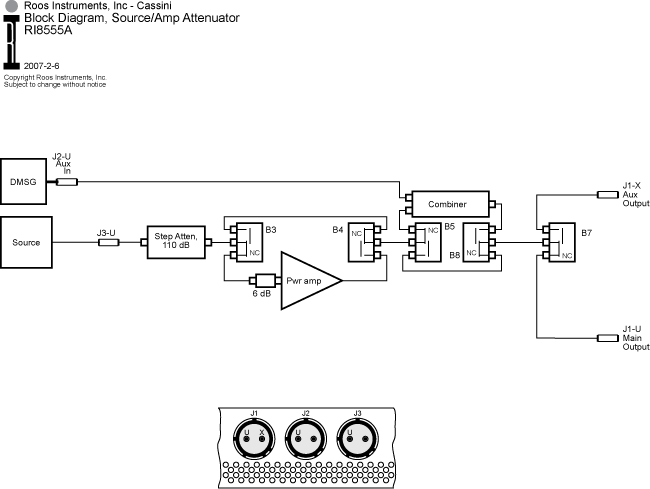

Source and Amp Attenuator Block Diagram (RI8555A)
