Every time a testplan is saved to Guru, it is accessible from the Cassini application "Show Test Objects" navigation window or from the Guru Browser.

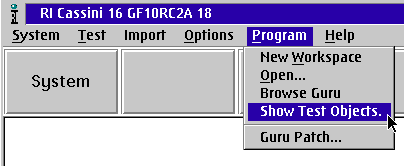

From a Cassini short cut window, Open a current or previous version of a testplan from the "Program" menu, select "Show Test Objects."

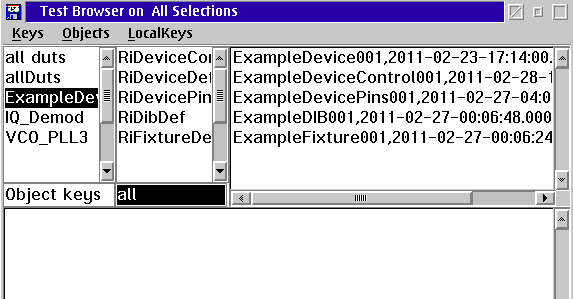

By default, it displays the available device families as shown below.

Select a device family and a list of all Guru Object classes which have any objects associated with the selected device family is displayed in the middle column. Select a Guru Object from the list and all the Guru objects are displayed on the right column.

Select a Guru object from the list on the right and RMB to activate the selected one.

Activate Latest: activates the latest version of the object.
Activate History: allows you to select previous version of the object.
