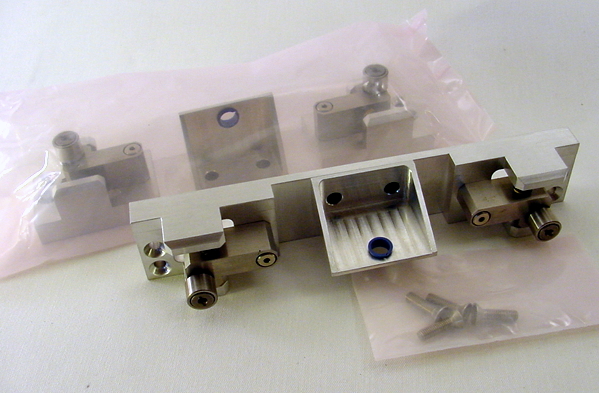

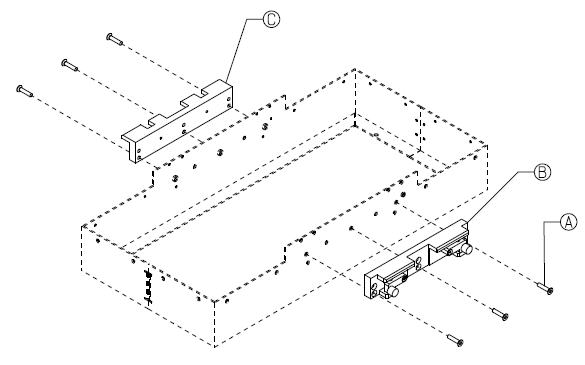

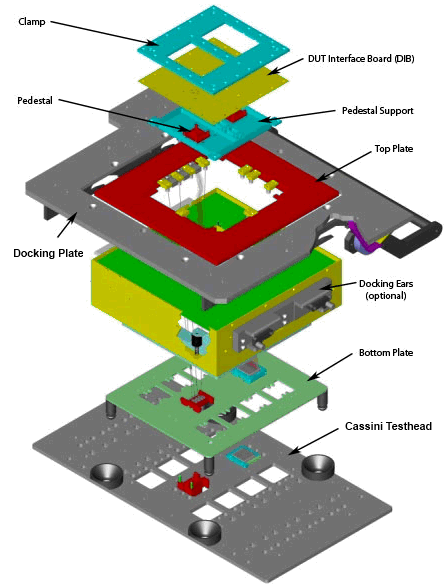

Attach these optional Docking Ears to any Fixture Side Plates to allow interfacing to the RI Standard or Large Handler Dock. Compatible with RI7100A and CASSINI (8 and 16 port) style fixture side plates (yellow area in picture below). You may have to remove the handles if they are already installed.



Related RI Kits

RIKDesciptionKit Type
Product Catalog
69ARI Standard Handler DockFixture Accessories
Product Catalog
70ARI Large Handler DockFixture Accessories
Product Catalog
96AFixture, Cassini, 20/30RFFixtures
Product Catalog
153BMatrix Fixture, Side Plates, Cassini 16Fixtures
Product Catalog
159AMatrix Fixture, Sides 8 Slot / 7100Fixtures
Product Catalog
164AFixture Side Covers and Filler Plates - Cass 16 - Large QuadFixture Accessories

Required Tools:
  • Allen wrench

RIK0068A - Standard Docking Ears


RIK0165A - Docking Ears - Intest Interface
