Pin out for Universal fixture plate. Pins are listed in clockwise order starting at pin 1.
Male connector | Female Connector | Male connector | Female Connector | ||||
Pin# | Resource | Pin# | Resource | Pin# | Resource | Pin# | Resource |
1 | 1 | GND | 25 | DB11 | 25 | DP10 | |
2 | 2 | V5S | 24 | GND | 24 | DP9 | |
3 | 3 | V8F | 23 | NC | 23 | DP6 | |
4 | 4 | V8S | 22 | S/N | 22 | DP5 | |
5 | +12V | 5 | DP3 | 21 | -12V | 21 | GND |
6 | NC | 6 | DP4 | 20 | 20 | GRD | |
7 | NC | 7 | GND | 19 | 19 | V6S | |
8 | DB9 | 8 | GRD | 18 | 18 | V6F | |
9 | DB12 | 9 | DP13 | 34 | 34 | V5F | |
10 | DB15 | 10 | DP14 | 35 | 35 | V7F | |
11 | GND | 11 | VM1 | 36 | 36 | V7S | |
12 | DB3 | 12 | VM1N | 37 | VI RTN | 37 | DP1 |
13 | DB6 | 13 | VM4 | 38 | +28V | 38 | DP2 |
14 | DB8 | 14 | VM4N | 39 | NC | 39 | DP7 |
15 | VI3S | 15 | 40 | NC | 40 | DP8 | |
16 | VI2S | 16 | 41 | DB10 | 41 | DP11 | |
17 | VI3 | 17 | -5V | 42 | DB13 | 42 | DP12 |
33 | RS (VI RS) | 33 | 43 | DB16 | 43 | GREF | |
32 | VI RTN | 32 | 44 | DB1 | 44 | GRD | |
31 | VI1 | 31 | 45 | DB4 | 45 | VM3 | |
30 | GND | 30 | GND | 46 | DB7 | 46 | VM3N |
29 | DB5 | 29 | VM2N | 47 | VI1 | 47 | |
28 | DB2 | 28 | VM2 | 48 | VI RTN | 48 | |
27 | GND | 27 | DP16 | 49 | VI2 | 49 | |
26 | DB14 | 26 | DP15 | 50 | VI1S | 50 | 5V |
Intentionally shorted pins (listed in bold)
- VI RTN - Pins 32, 37, 48
- VI 1 - Pins 31 and 47
To retrofit the -5V and +5V
- Locate unattached wires closest to pin 50. There should be 10 connected and tie-wrapped together.
- Cut the tie wrap and separate the black and white wires from the rest.
- Route the black and white wires over to the SPDT side of the fixture.
- Attach the black wire to the +5V (pin 7) of the switch connector (not header) by using the special amps tool.
- Attach the white wire in the same manner to pin 2 of the connector. This will attach it to -5V.
To retrofit to older tester configurations (Gen I and II)
- If the tester has an I_Drive capability (older tester) and the fixture is of new vintage then the I_Drive pin is grounded by the fixture. Clip Pin#32 on header#1 on the fixture bottom board.

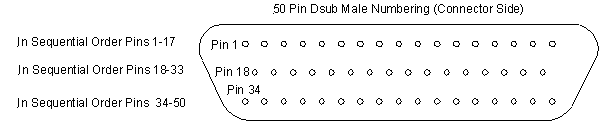

50 Pin Dsub Connector Mapping:
