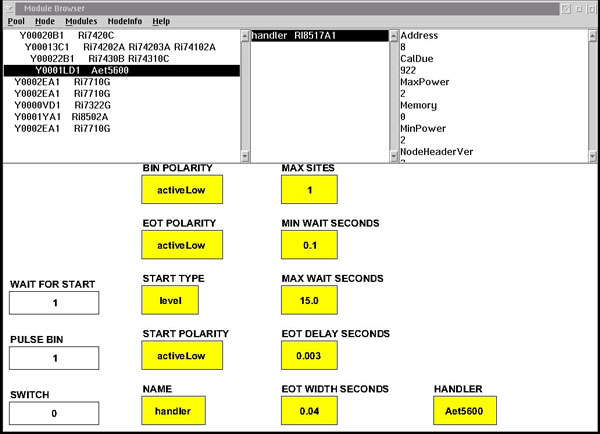

This configuration control panel represents those settings needed to drive the Aetrium 5600
handler. Switches 1&2 set in the ON state and switches 3 through 6 are set in the OFF state.
 | | | |
| RI8517A1 to Aetrium 5600 Pin coordination | |||
| Interface Switches = SW1 & 2 ON, 3-6 OFF | |||
RI8517A1 | AET 5600 | ||
25 DSUB | 25 DSUB | Function | |
Pin# | Pin# | RI8517A1/AE5600 | |
1 | 2 | Bin1/Category 1 | |
2 | 3 | Bin2/Category 2 | |
3 | 4 | Bin3/Category 3 | |
4 | 5 | Bin4/Category 4 | |
5 | 6 | Bin5/Category 5 | |
6 | 7 | Bin6/Category 6 | |
7 | 8 | Bin7/Category 7 | |
8 | 9 | Bin8/Category 8 | |
9 | NC | ||
10 | 22 | Start Test/SOT | |
11 | Attach to +V pod pin# 13 | ||
12 | 25 | Tester Gnd / Handler Gnd | |
13 | +5V/NC | ||
14 | 24 | +5V/power | |
15 | NC | ||
16 | NC | ||
17 | NC | ||
18 | NC | ||
19 | NC | ||
20 | NC | ||
21 | NC | ||
22 | 10 | Bin9 | |
23 | 11 | Bin10 | |
24 | 12 | Bin11 | |
25 | 23 | EOT/EOT | |
