Cassini 5G Covered

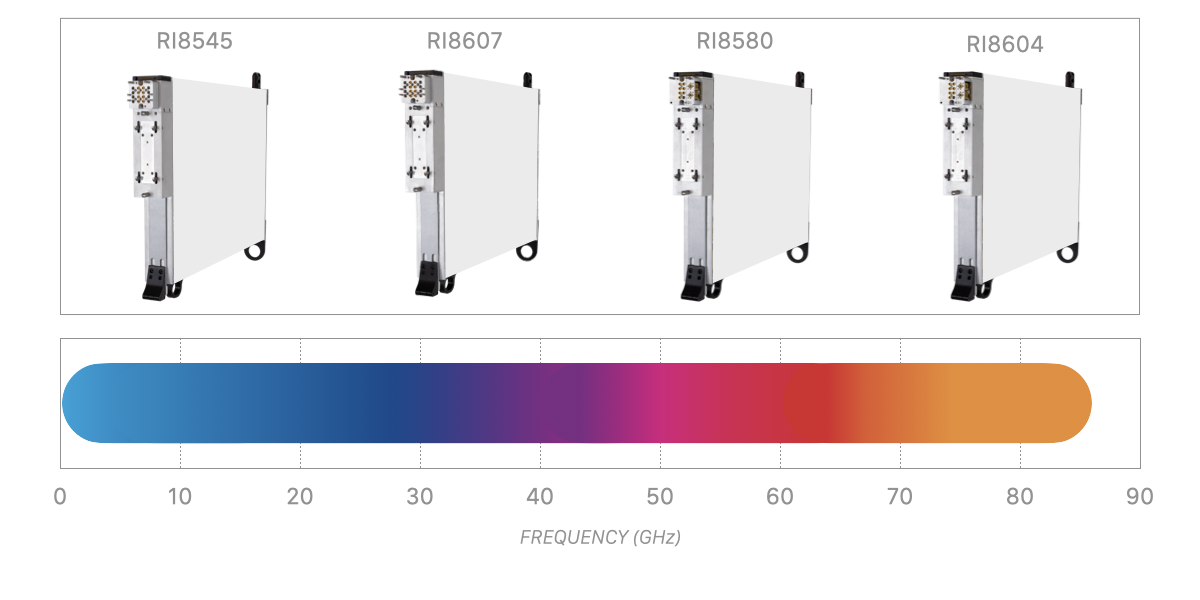

Cassini is the only fully integrated ATE solution for high frequency markets above 6 GHz and is 5G ready today. 5G technology rapidly changes, the Cassini 16 slot ATE platform allows for flexibility by progressively adding higher frequency capability.

Full 5G Spectrum Coverage

Starting 5G Spectrum Coverage

Partial 5G Spectrum Coverage

Mid 5G Spectrum Coverage

RI8545: 100kHz to 20 GHz

Perform High Performance Full 4 Port S-Parameter Testing of all the traditional telecom devices at baseband and the most prevalent channel frequencies for CDMA, WCDMA, LTE, 4G, 5G,and 6G. Enables engineering lab accurate error corrected measurements in a production proven module for Gain, Phase, Absolute Power, Noise Figure, Return Loss, and Spectral Purity. Massive MIMO and Beam Forming high port count devices are supported through Active port expansion in Cassini's mixing and matching of multiple TIMs for up to 16 independent measurement ports plus Test Fixture based port multiplication for support of nearly unlimited number of device ports.

Signal Sourcing

Three input source options that access all four bi-directional measurement ports. One dedicated especially for low-loss, high linearity measurments to support harmonic and intermodulation measurement sourcing.

Noise Sourcing

Calibrated internal noise source available at all four measurement ports for hot/cold noise testing.

S-Parameters

Vector-error corrected 4-Port S-parameter measurements that use bilateral, 12-term error correction model or high-speed unilateral, 8-term error correction.

Direct Receive

Low-loss signal path routing option for maximum dynamic range measurements available at all four measurement ports.

Load Conditions

Precision RF short and 50 ohm termination loads available to all four measurement ports.

Noise Figure

Example noise figure measurement combining calibrated noise sourcing, low-loss direct receive path, and maximum source/measure port isolation.

Return Loss

Vector error corrected S₁₁ measurement, capturing the incident a₁ wave and reflected b₁ wave on a single measurement port.

Gain

Vector error corrected S₂₁ measurement capturing the a₁ incident wave and b₁ output wave from the device under test across two measurement ports with maximum port isolation.

RI8607: 2 GHz to 50 GHz

Scalable High Performance 2 Port S-Parameter Testing optimized for frequency translation telecom as well as back haul devices at all the channel frequencies for 5G and upcoming 6G standards. Enables engineering lab accurate error corrected measurements in a production proven module for Gain, Phase, Absolute Power, Noise Figure, Return Loss, Two Tone, Itermod and Spectral Purity. Active port expansion through Cassini's support of mixing and matching multiple TIMs for up to 24 independent measurement ports plus Test Fixture based port multiplication for support of nearly unlimited number of device ports.

S-Parameters

Vector-error corrected S-parameter measurements using Cassini's unique port independent high-speed unilateral, 8-term error correction. Mix and match measurements across additional ports even at different frequencies or mix scalar and vector measurement types.

Two-Tone Intermodulation

Precision microwave combiners enable two-tone signal delivery for high performance intermodulation and linearity test setups on both ports.

Return Loss

Vector error corrected S₁₁ measurement, capturing the incident a₁ wave and reflected b₁ wave on a single measurement port.

Gain

Scalar error corrected S₂₁ measurement capturing the a₁ incident wave and b₁ output wave from the device under test across two measurement ports.

RI8580: 50 GHz to 67 GHz

Scalable High Performance 2 Port S-Parameter Testing optimized for frequency translation back haul plus WiGig and wirelessHD devices at all the 802.11ad channel frequencies. Enables engineering lab accurate error corrected measurements in a production proven module for Gain, Phase, Absolute Power, Noise Figure, Return Loss, and Spectral Purity. Active port expansion through Cassini's support of mixing and matching multiple TIMs up to 12 independent measurement ports plus Test Fixture based Patented low loss waveguide port multiplication for support of nearly unlimited number of device ports.

S-Parameters

Vector-error corrected S-parameter measurements optimized for low loss using patented waveguide port connection technology for high density multi-port support at these high frequencies. Cassini's unique port independent highspeed unilateral, 8-term error correction is also supported which allows engineers to mix and match measurements across additional ports even at different frequencies or mix scalar and vector measurement types.

Direct Receive

Direct down conversion, scalar receive path for maximum dynamic range measurements.

Return Loss

Vector error corrected S₁₁ measurement, capturing the incident a₁ wave and reflected b₁ wave on a single measurement port.

Gain

Scalar error corrected S₂₁ measurement capturing the a₁ incident wave and b₁ output wave from the device under test across two measurement ports.

RI8604: 71GHz to 86 GHz

Scalable High Performance 2 Port S-Parameter Testing optimized for frequency translation Automotive Radar plus up and down link devices at all the channel frequencies. Enables engineering lab accurate error corrected measurements in a production proven module for Gain, Phase, Absolute Power, Noise Figure, Return Loss, and Spectral Purity. Active port expansion through Cassini's support of mixing and matching multiple TIMs for up to 12 independent measurement ports plus Test Fixture based patented low loss waveguide port multiplication for support of nearly unlimited number of device ports.

S-Parameters

Vector-error corrected S-parameter measurements optimized for low loss using patented waveguide port connection technology for high density multi-port support at these high frequencies. Cassini's unique port independent highspeed unilateral, 8-term error correction is also supported which allows engineers to mix and match measurements across additional ports even at different frequencies or mix scalar and vector measurement types.

Direct Receive

Direct down conversion, scalar receive path for maximum dynamic range measurements.

2-Tone

Millimeter wave subharmonic mixers and a signal combiner provides dual tone generation from two upconverted 20 GHz microwave sources. Each signal path provides independent source level control.

Gain

Vector error corrected S₂₁ measurement capturing the a1 incident wave and b₁ output wave from the device under test across two measurement ports.

5G Device Interface

Low loss blind mate interfaces solve production challenges for 5G devices. We're taking modular to a whole new level.

Architect the Best Production Test »

High Power Base Station or Backhaul

Basestations require phase measurements that are possible with Cassini's calibrated high power signal paths.

Cassini ATE Configuration »

mmWave Mass Market Production

Cassini leverages a modular configuration focused on precise calibration, low loss device connections and high measurement accuracy with a small footprint and low capital expense.

View Article »
