Part # Connector A Connector B Photo Length (in.) Flexibility Max Freq. (GHz) In Stock Price Type Description Applications
RIK0007ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)8Flex00$830DC Wires (Jumper)DC Jumper Wires, 28AWG, 4"+8" (qty 20+20)Short DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts
RIK0007BDC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)12Flex011$640DC Wires (Jumper)DC Jumper Wires, 28AWG 4"+8"+12" (qty 20 ea)(8 TIM Starter) DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts
RIK0009ASMA (f) SSIS (m) SMA-SSIS0Rigid166$1,050AdaptersAdapter, SMA(f)-SSIS(m) (qty 5)Connects SMAM connector to SSISF. Join RF ports through Fixture. 7100 Cal Kit & Diag
RIK0072BMCX (f) 90°SMA (m) MCX-SMA5Flex66$370RFRF Cable, Flex, 90° MCX(f)-SMA(m), 5" (qty 6)Fixture Module (SMA) to Top Plate Adapter or Insert
RIK0073AMCX (f) 90°MCX (f) 90°MCX-MCX3Conform619$280RFRF Cable, Conform, 90° MCX(f)-90° MCX(f), 3" (qty 3)Module to Module routing
RIK0113ADIN (f) 90°MCX (m) DIN-MCX15Flex88$1,170WF Cables (DIN - MCX)WF Cable, Flex, DIN(f)-90° MCX (m), 15" (qty 5)RI7100A Waveform "WF" signal to DUT
RIK0128ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)18Flex00$670DC Wires (Jumper)DC Jumper Wires, 28AWG, 12"+18" (qty 30&30)(16 TIM Starter) DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts
RIK0148ACoax (pair) (f) Coax (pair) (f) Coax (pair)-Coax (pair)16Flex04$210Digital (Coax)Digital Coax Cables, 1x2 , (qty 5)Digital Module to DIB Launch DC Insert
RIK0157ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)18Flex05$470DC Wires (Jumper)DC Jumper Wires, 28AWG 18" (40 pieces)(Extra Long) DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts
RIK0169BPKZ #12 (f) PKZ #12 (f) PKZ #12-PKZ #128Conform4024$170RFRF Cable, Conform, PKZ#12(f)-PKZ#12(f), 8"RF Block interconnects, typical
RIK0171AK 2.9 (m) MMPX (m) K 2.9-MMPX14Conform401$270RFRF Cable, Conform, 2.9K(m)-90° MMPX(m), 14"Modules or Components to DIB Launch (MMPX)
RIK0172APKZ #12 (f) K 2.9 (m) 12Semi-Rigid4040$290RFRF Cable, Semi-Rigid, PKZ#12(f)-K(m), 12"RF Blocks or Modules, SMA 2.9mm for frequencies over 18 GHz and below 40 GHz
RIK0179APKZ #12(Special) (f) SMA .086 (m) PKZ #12(Special)-SMA .0868Conform201$440RFRF Cable, Conform, .086, Special PKZ#12(f)-SMA(m), 8"Temporary Connections from RF TIM Block to Modules/DIB for Diag/Cal
RIK0181APKZ #12 (f) MMPX (m) 90°PKZ #12-MMPX16Conform4022$230RFRF Cable, Conform, PKZ#12(f)-90° MMPX(m), 16"High Frequency Launch to DIB - 40 GHz
RIK0183ASSIS (m) MCX (m) 90°SSIS-MCX15Flex1217$180RFRF Cable, Flex, SSIS(m)-90° MCX(m), 15"RI7100A Test Head to Fixture Modules or DIB
RIK0184AMCX (m) DIN (f) MCX-DIN15Flex610$110RFRF Cable, Flex, MCX(m)-DIN(f), 15"Ri7100A Testhead to a Fixture Module or Insert (connecting to the DIB)
RIK0185AMCX (m) SMA (f) MCX-SMA0Rigid622$60AdaptersAdapter, MCX(m)-SMA(f)Adapt MXC(f) cables to Fixture Modules with SMA(m) connectors
RIK0189ACoax (1x3) (f) Coax (1x3) (f) Coax (1x3)-Coax (1x3)16Flex02$300OthersAC Coax Cables, 1x3 Shielded, Twisted Pair, 16" (qty 2)DIB Launch DC Inserts to Diff I/O Fixture Module
RIK0190ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)4Flex04$160DC Wires (Jumper)DC Jumper Wires, 28AWG, 4" (qty 10)(Short, Daisy Chain) DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts

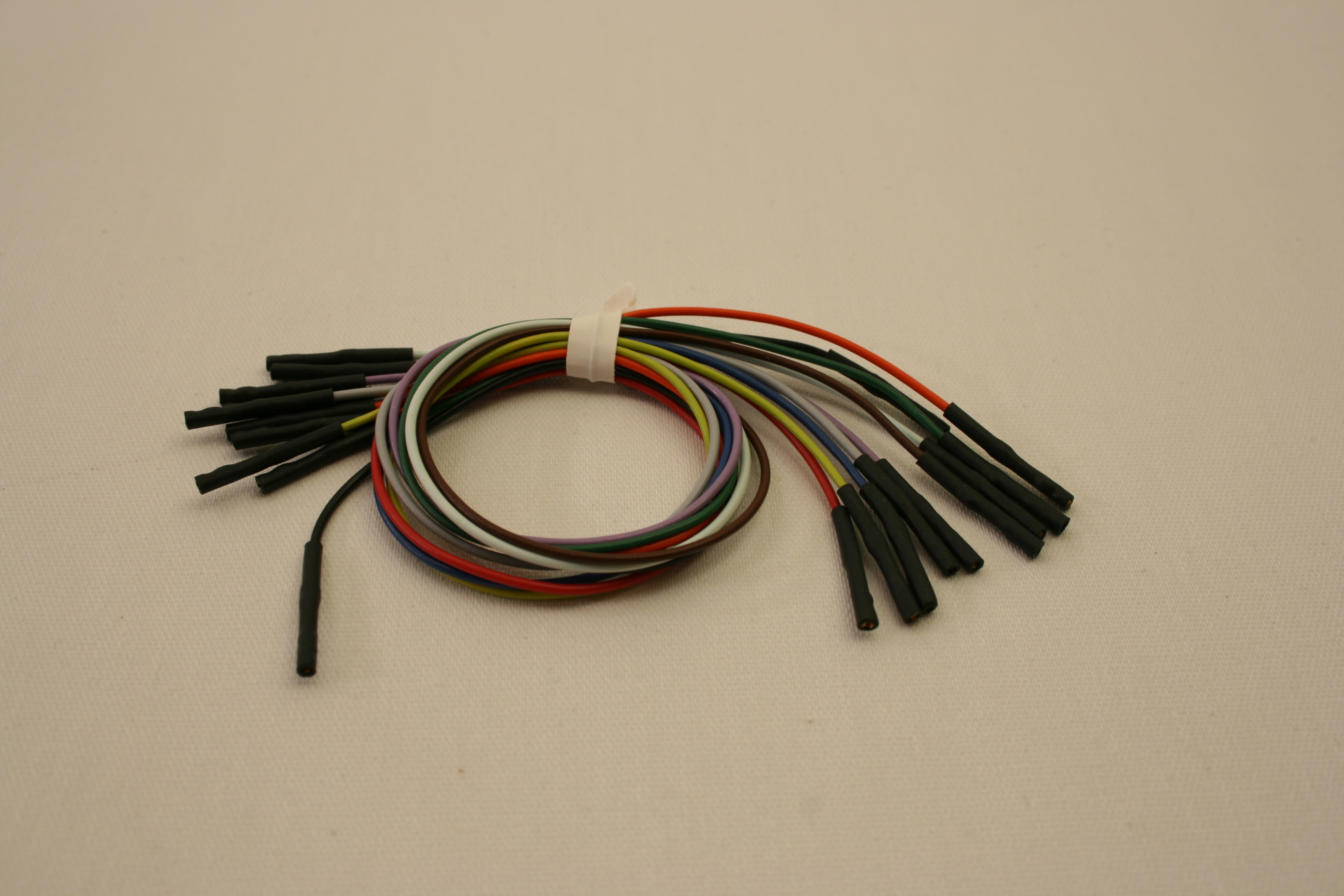

RIK0191ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)8Flex04$160DC Wires (Jumper)DC Jumper Wires, 28AWG, 8" (qty 10) (Medium Length) DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts
RIK0192ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)12Flex00$160DC Wires (Jumper)DC Jumper Wires, 28AWG, 12" (qty 10) (Long, Standard TIM Block to Launch) DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts
RIK0193AMCX (f) MCX (f) 7Flex610$140RFRF Cable, Flex, MCX(f)-MCX(f), 7"Modules to Inserts
RIK0194AMCX (f) 90°MCX (f) 90°MCX-MCX7Flex623$120RFRF Cable, Flex, 90° MCX(f)-90° MCX(f), 7"Modules to Module or DIB Launch MCX Insert
RIK0195ASMA (m) MCX (f) 7Flex1235$90RFRF Cable, Flex, SMA(m)- MCX(f), 7"Modules to Inserts
RIK0196APKZ #12 (f) SMA (m) PKZ #12-SMA18Conform205$280RFRF Cable, Conform, PKZ #12(f)-SMA(m), 18"RF Blocks to 20 GHz Modules or Inserts, Cassini16
RIK0197APKZ #12 (f) SMA (m) PKZ #12-SMA11Conform206$170RFRF Cable, Conform, PKZ#12(f)-.085 SMA(m), 11"RF Blocks to 20 GHz Modules or Inserts, Cassini
RIK0199ADC (Jumper) (f) DC (Jumper) (f) DC (Jumper)-DC (Jumper)2Flex00$260OthersFixture SN Chip (ESN) with 4-wire Harness (2 ea)DUT Interface Boards & Fixtures without Carriers
RIK0206AMCX (m) MCX (m) MCX-MCX13Flex613$90RFRF Cable, Flex, MCX(m)-90° MCX(m), 13"Insert to Modules
RIK0208ASSMP(GPPO) (f) SMA .086 (m) SSMP(GPPO)-SMA .0867Conform2021$400RFRF Cable, Conform, .086, SSMP(f)-SMA(m), 7"Connect SSMP connectorized modules to top plate SMA RF inserts
RIK0209ASSMP(GPPO) (f) 90°SMA (m) SSMP(GPPO)-SMA9Conform2022$340RFRF Cable, Conform, .086, 90° SSMP(GPPO)(f)-SMA(m), 9"Connect SSMP connectorized modules to top plate SMA RF inserts
RIK0210APKZ #12 (f) SMA (m) PKZ #12-SMA8Conform2010$90RFRF Cable, Conform, PKZ#12(f)-SMA(m), 8"RF Blocks to Modules or Inserts, Cassini8
RIK0230AK 2.9 (m) MMPX (m) 90°K 2.9-MMPX40Conform4012$240RFRF Cable, Conform, 2.9K(m)-90° MMPX(m), 16"Modules or Components to 40GHz DIB interface
RIK0231ASSMP(GPPO) (f) 90°SSMP(GPPO) (f) 90°SSMP(GPPO)-SSMP(GPPO)5Conform2010$220RFRF Cable, Conform, 90° SSMP(f)-90° SSMP(f), 5"Fixture Module or Component to 40GHz DIB interface
RIK0232ASMA (f) SMA (f) SMA-SMARigid2423$40AdaptersAdapter, FR Softdock, SMA(f)-(f) BulkheadSoft Dock, 1 SMA Bulkhead
RIK0237BPKZ #12 (f) K 2.9 (m) PKZ #12-K 2.92Conform408$310RFRF Cable, Conform, PKZ#12(f)-K(m), 2"Module or Component to TIM RF Block, 40 GHz
RIK0238AMCX (m) 90°MCX (m) 90°MCX-MCX12Flex612$100RFRF Cable, Flex, 90° MCX(m)-90° MCX(m), 12"Fixture Modules to Modules
RIK0243APKZ #12 (f) PKZ #12 (f) PKZ #12-PKZ #1216Conform405$220RFRF Cable, Conform, PKZ#12(f)-PKZ#12(f), 16"(Interconnects, RF System) RF TIM Block to RF TIM Block
RIK0246APKZ #12 (f) MCX (m) PKZ #12-MCX12Conform6100$140RFRF Cable, Conform, PKZ#12(f)-MCX(m), 12"RF TIM Block to Modules or DIB Lauch MCX Inserts
RIK0247ASSIS (m) SMA (m) SSIS-SMA11Flex1630$220RFRF Cable, Flex, SSIS(m)-SMA(m), 11"RI7100A bottom plate to Top Plate or Fixture Module
RIK0248ASSIS (m) SMA (m) SSIS-SMA3.4Conform1616$170RFRF Cable, Conform, SSIS(m)-SMA(f), 3.4"RI7100A Bottom plate to 20 RF Top Plate Launch
RIK0258APKZ #12 (f) SMA (m) PKZ #12-SMA12Flex2043$150RFRF Cable, Flex, PKZ #12(f)-SMA(m), 12"(Flexible) RF TIM Blocks to DIB Launch RF Inserts
RIK0272ASMA (f) N (m) SMA-N0Rigid115$350AdaptersAdapter, SMA(f)-N(f)Adapt Top Plate Cables to Fixture Modules
RIK0280ASMA (m) MCX (m) 14Flex618$130RFRF Cable, Flex, SMA(m)- MCX(m), 14"Module to Module (far apart)
RIK0284ASMA (m) SMA (m) SMA-SMA11Conform2023$70RFRF Cable, Conform, SMA(m)-SMA(m), 11"Modules to Modules/Inserts
RIK0298APKZ #12 (f) MCX (m) PKZ #12-MCX20Flex1218$110RFRF Cable, Flex, PKZ #12(f)-MCX(m), 20"RF Blocks to MCX Modules (up to 12GHz)
