LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
View RIKs with Limited Availability for a complete list.

Aditional replacements may be found by searching for RIK0075 (change the REV letter) or Fixture, Bench-Top Single Site.

Out of Stock: Ships Contact Factory ARO

Fixture, Bench-Top Single Site

RI7100A Engineering Top Plate

Part Number: RIK0075A

In Stock: 0

Estimated Restocking Time: Contact Factory

$3,710

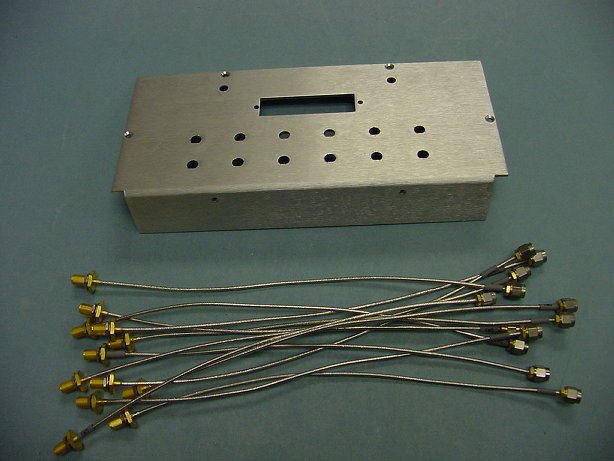

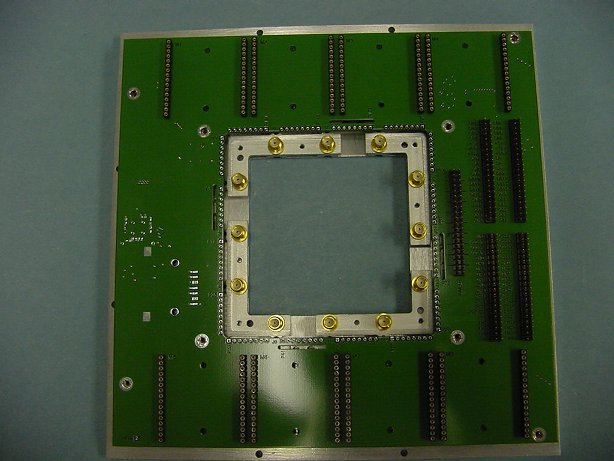

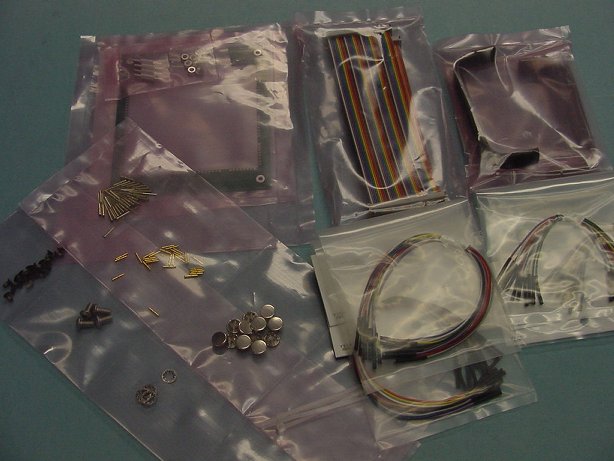

First image assembled. Second image shipped as parts.

Kit includes the following:


* DC Jumper Wires
* DC 40 Pin Cables
* Fixture Handles
* Pogo Pins and Receptacles (qty 30 ea).
* Pogo Alignment Tool
* Fixture Top Plate
* Fixture Carrier
* RF Cables
* DUT Board Clamp
* Side Covers

Note: Full assembly is required. Additional Pogo pins are available using RIK0071A.

Related Documents:

User account required Create new account
Product Docs
Pictures for the Generic Bench Top Fixture

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1G8UWZ32A2Jumper Wire Set 4" (10 pcs.) 28AWG multi-colorCblMsc
2M5YFXT1A2HANDLE 4" BLACKMchCmp
3M5YM5V1A12LOCKWASHER, M6, SSHrdwr
4M673SZ1A20SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
5M673YF1A4SCREW, BUTTON HEAD, 10-32 X 3/8", SSHrdwr
6M6GVJT1B12ADAPTER, SMAF-SMAF,BULKHEADCoax
7M6J2JS1A8SCREW, SEMS, 4-40 X 1/4" SSHrdwr
8M6JGN21A4WASHER, LOCK, #10 INTERNAL TOOTHHrdwr
9M6MJ8T1A30RECEPTACLE,POGO PIN (DUT Pogo)PcbCnnct
10M6MJ8Y1A30PROBE,POGO PIN (DUT Pogo)PcbCnnct
11M7VBFN2A2Jumper Wire Set 8" (10pcs.) 28AWGCblMsc
12M93E3R1A5Cable tie, 4", naturalMchCmp
13M9PLE91A2Cable Assy Ribbon 40cond 18inRbbn
14MBPYNY1A12Hole Plug, finishing, 1/4" nickle pltd steelMchCmp
15MCWLKC1A1Top plate with .213 SMA*MscAssy
16RIK0030A1Pogo Alignment Tool, Fixture*CstmrKt
17W1MFBJRB12COAX,CONFRM,SMAM-SMAF,10.0"Coax
18W1MFCKJB2Cover Bench Fix SQR 12 D holeMchFb
19Y0004VB21FIXTURE CARRIER, Passive*PcbFb
BOM Refreshed:05/11/2020 06:21 PM
