LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 12/08/2014. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0178A

Expiration Reason: Cassini 8 Limited Availablility, not compatible with Spyder

Aditional replacements may be found by searching for RIK0177 (change the REV letter) or Fixture Bottom Plate, Cassini 8 slot, Basic Assembly .

2 In Stock No New Designs

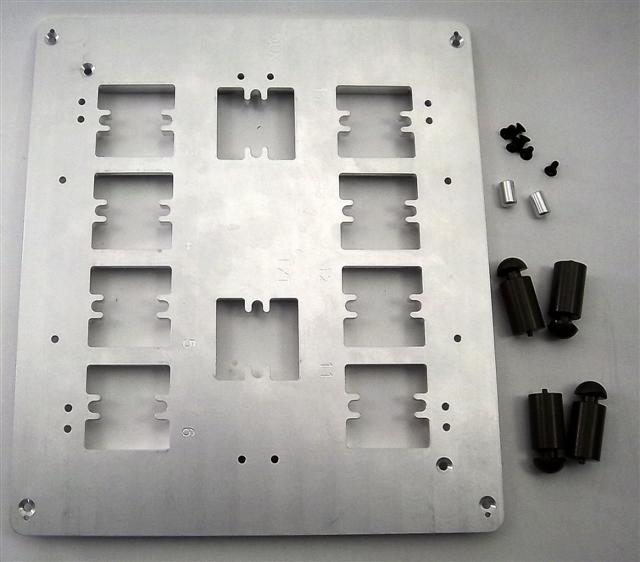

Fixture Bottom Plate, Cassini 8 slot, Basic Assembly

Cassini 8, Hard Dock, Standard 8 TIMs, Cal & Characterization

Part Number: RIK0177A

Estimated Restocking Time: 12+ weeks (limited)

$820
DO NOT use this for new Designs.

Suggested Replacement: RIK0178A


Basic Bottom Plate Assembly for Cassini 8 slot infrastructure. Does not include RF, DC, Digital blocks, or cabling.

DOES NOT SUPPORT CASSINI SPYDER.

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1IMK3VSY1A6SCREW FLAT PHIL 6-32 x 5/16, 100°, ssHrdwr
2FMMKECE1A1Labels, TIM Fixture Interface PlateMchCmp
3MRY2Z71A1Packaging Box, 12.5" X 12.5" Multi Depth .5" and 1"Sppls
4W1MFCBZP1MOD FIX BOT, 8 SLOTMchFb
5BW1MFCXGE4FOOT, FIXTURE MFIX*MchFb
6CW1MFECGA2Actuator Fixture Switch, Cassini*MchFb
BOM Refreshed:05/11/2020 06:23 PM
