This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 09/08/2023.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0178C
Expiration Reason: Made thicker to
Aditional replacements may be found by searching for RIK0178 (change the REV letter) or Fixture Bottom Plate, Cassini 16 slot, Basic Assembly .
.JPG!OpenElement)
.JPG!OpenElement)
.JPG!OpenElement)
.JPG!OpenElement)
Fixture Bottom Plate, Cassini 16 slot, Basic Assembly
Hard Dock Fixtures, Diag, Cal & Characterization
Part Number: RIK0178B
In Stock: 0
Estimated Restocking Time: 12+ weeks (limited)

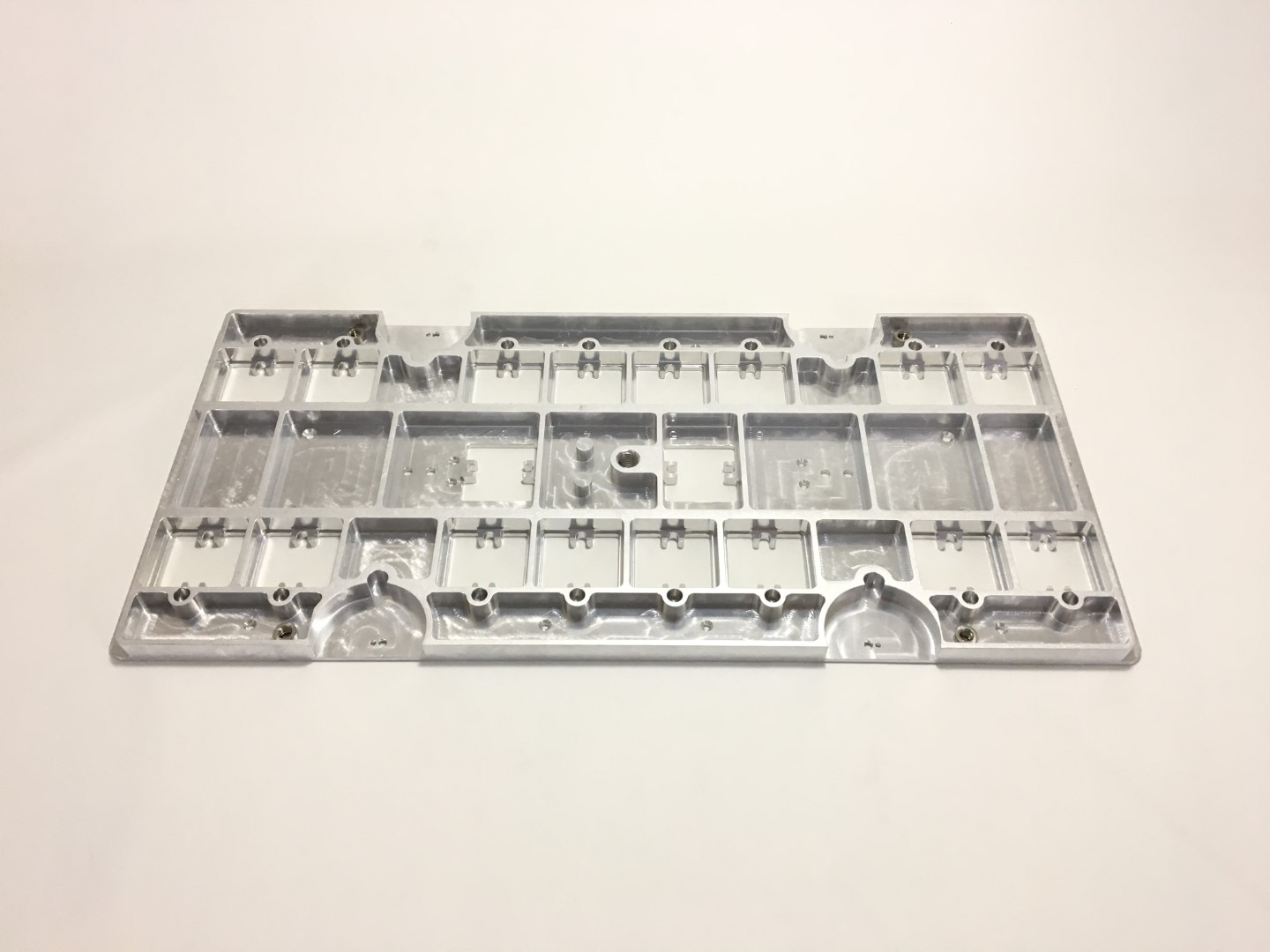

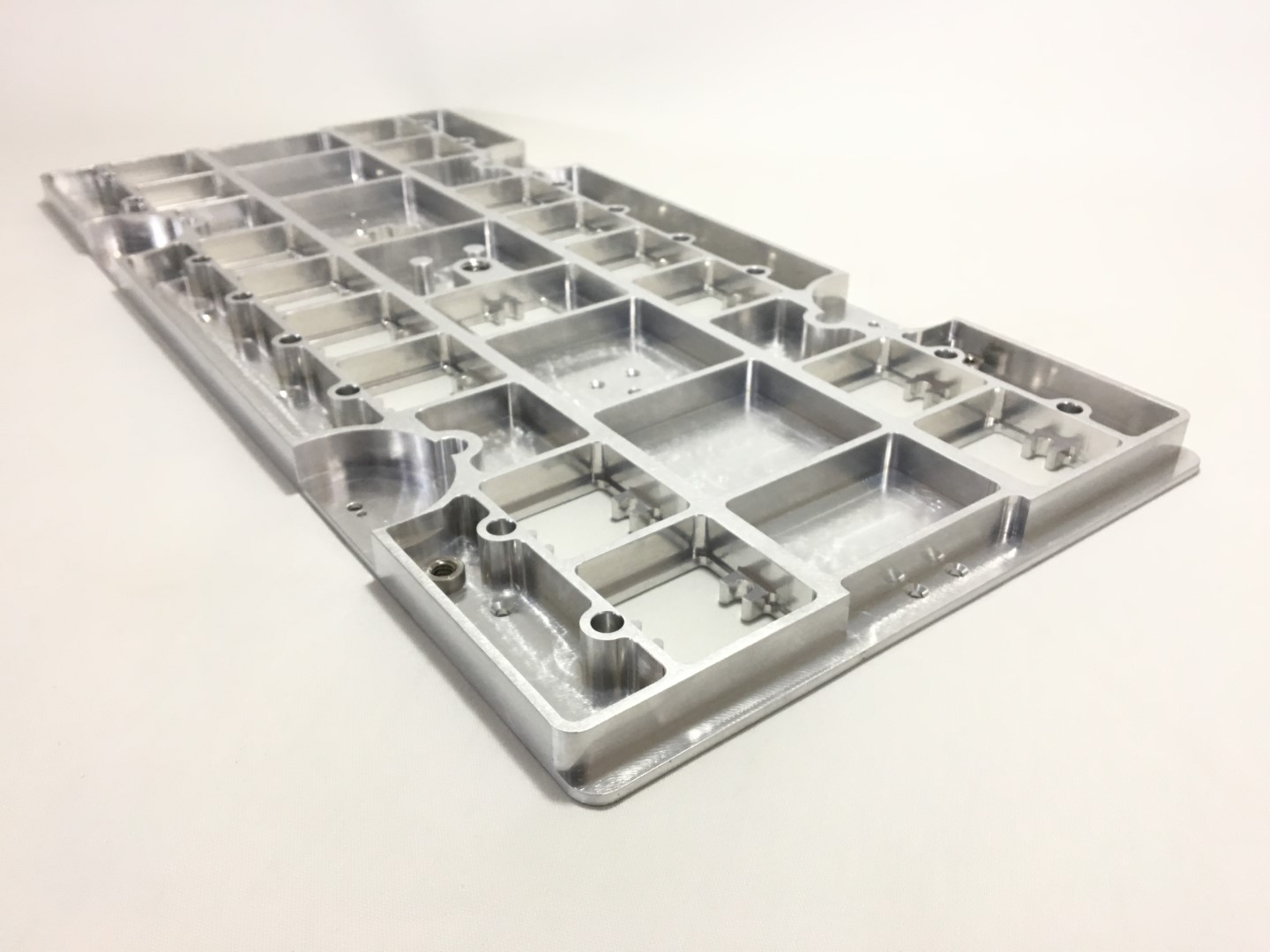

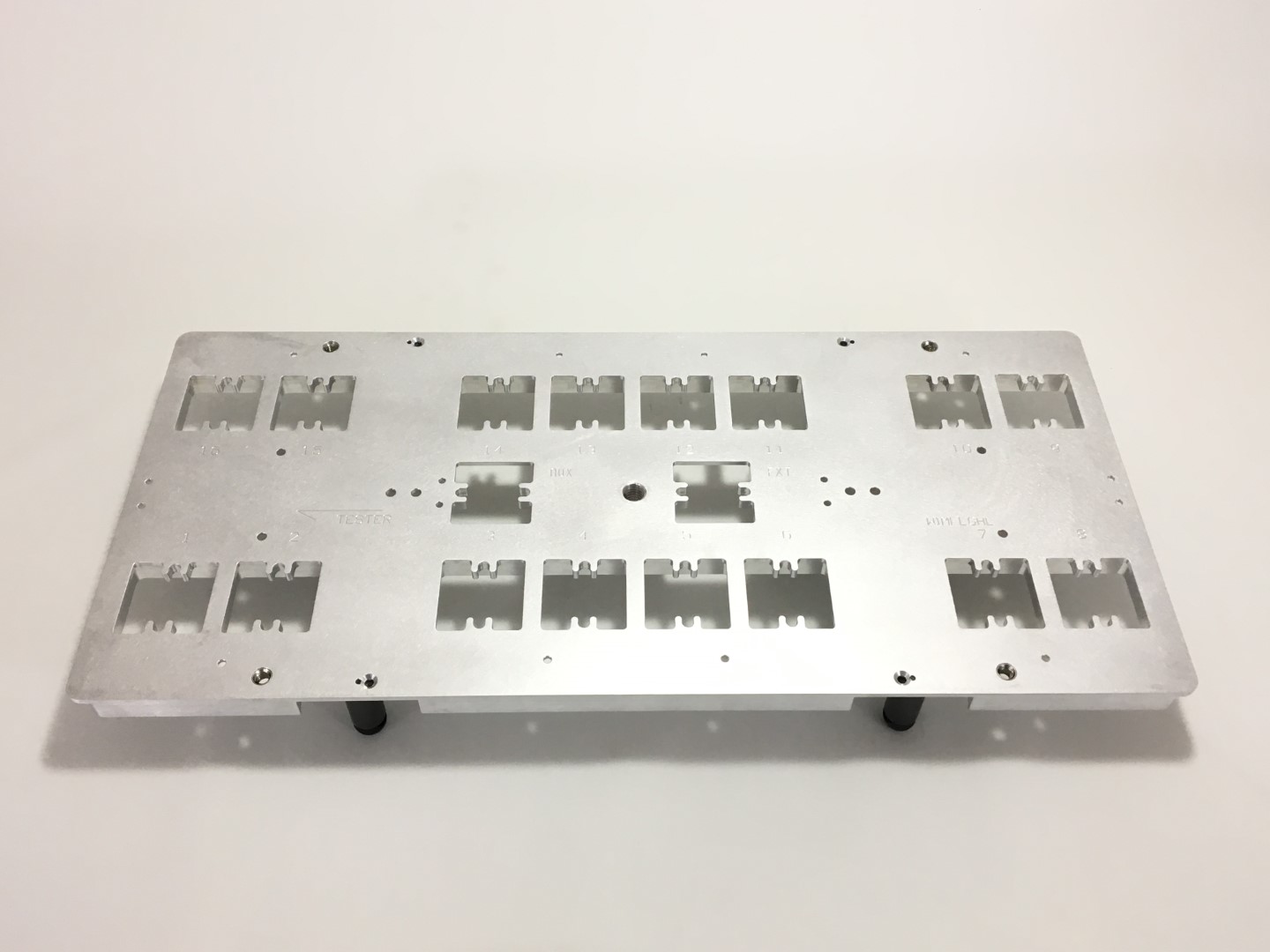

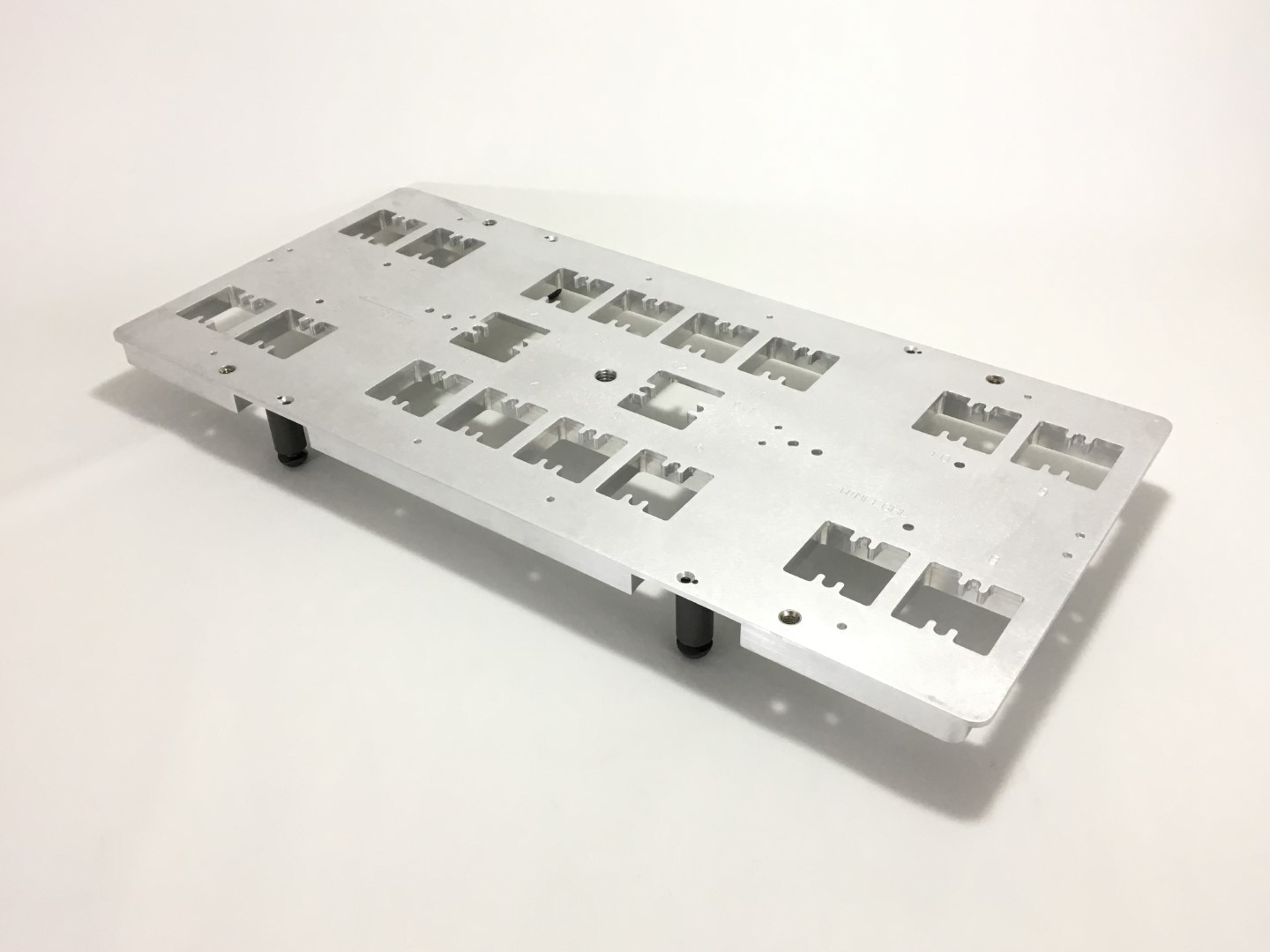

Standard bottom plate assembly used on the Cassini 16 Test Head. This Bottom plate can be used as a Soft-dock solution with TIM blocks to connect Evaluation Boards or it can be used with Sides and a Top Plate, Carrier boards, etc. to form a complete Hard-dock fixture.
Related Documents:
Fixture Assembly Steps - Cassini 16 with InTest Top Plate (RIK0178A, RIK0152B, RIK0164A)
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | S1 | MK3VSY1A | 4 | SCREW FLAT PHIL 6-32 x 5/16, 100°, ss | Hrdwr | |
| 2 | D | MN46RU6B | 1 | ASSY document for RIK0178B | Dcmnt | |
| 3 | A | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | |
| 4 | C | W1MFCXGE | 4 | FOOT, FIXTURE MFIX* | MchFb | |
| 5 | C | W1MFEGHM | 1 | MOD FIX BOT 16 | MchFb |
