LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
View RIKs with Limited Availability for a complete list.
Aditional replacements may be found by searching for RIK0075 (change the REV letter) or Fixture, Bench-Top Single Site.
Fixture, Bench-Top Single Site
RI7100A Engineering Top Plate
Part Number: RIK0075A
In Stock: 0
Estimated Restocking Time: Contact Factory

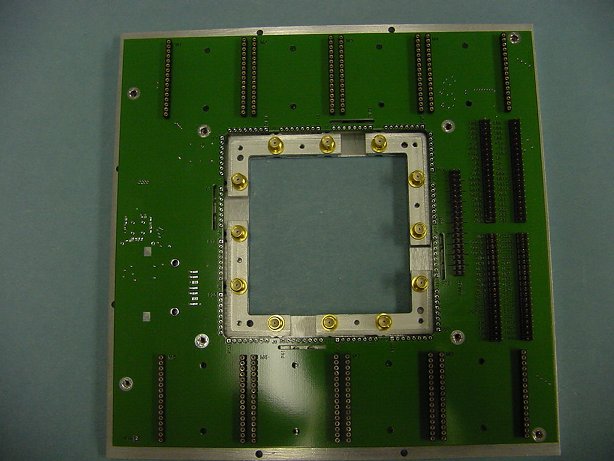

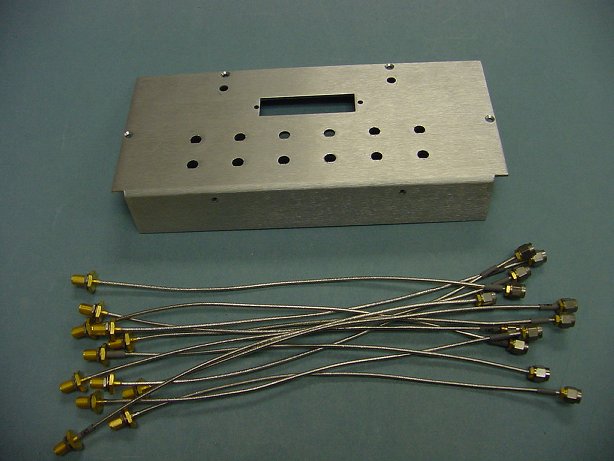

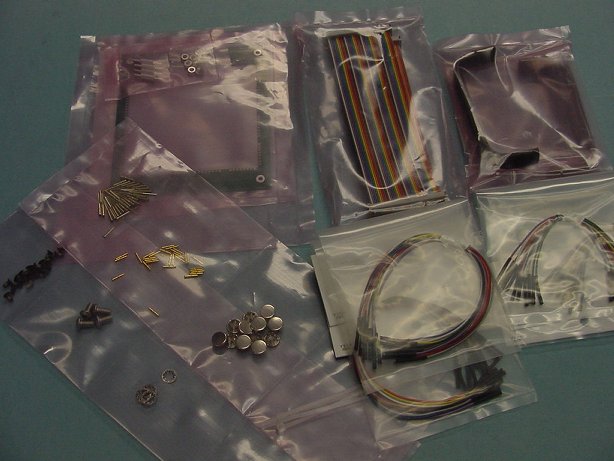

First image assembled. Second image shipped as parts.
Kit includes the following:
* DC Jumper Wires
* DC 40 Pin Cables
* Fixture Handles
* Pogo Pins and Receptacles (qty 30 ea).
* Pogo Alignment Tool
* Fixture Top Plate
* Fixture Carrier
* RF Cables
* DUT Board Clamp
* Side Covers
Note: Full assembly is required. Additional Pogo pins are available using RIK0071A.
Related Documents:
 | Pictures for the Generic Bench Top Fixture |
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | G8UWZ32A | 2 | Jumper Wire Set 4" (10 pcs.) 28AWG multi-color | CblMsc | ||
| 2 | M5YFXT1A | 2 | HANDLE 4" BLACK | MchCmp | ||
| 3 | M5YM5V1A | 12 | LOCKWASHER, M6, SS | Hrdwr | ||
| 4 | M673SZ1A | 20 | SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCK | Hrdwr | ||
| 5 | M673YF1A | 4 | SCREW, BUTTON HEAD, 10-32 X 3/8", SS | Hrdwr | ||
| 6 | M6GVJT1B | 12 | ADAPTER, SMAF-SMAF,BULKHEAD | Coax | ||
| 7 | M6J2JS1A | 8 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 8 | M6JGN21A | 4 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | ||
| 9 | M6MJ8T1A | 30 | RECEPTACLE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 10 | M6MJ8Y1A | 30 | PROBE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 11 | M7VBFN2A | 2 | Jumper Wire Set 8" (10pcs.) 28AWG | CblMsc | ||
| 12 | M93E3R1A | 5 | Cable tie, 4", natural | MchCmp | ||
| 13 | M9PLE91A | 2 | Cable Assy Ribbon 40cond 18in | Rbbn | ||
| 14 | MBPYNY1A | 12 | Hole Plug, finishing, 1/4" nickle pltd steel | MchCmp | ||
| 15 | MCWLKC1A | 1 | Top plate with .213 SMA* | MscAssy | ||
| 16 | RIK0030A | 1 | Pogo Alignment Tool, Fixture* | CstmrKt | ||
| 17 | W1MFBJRB | 12 | COAX,CONFRM,SMAM-SMAF,10.0" | Coax | ||
| 18 | W1MFCKJB | 2 | Cover Bench Fix SQR 12 D hole | MchFb | ||
| 19 | Y0004VB2 | 1 | FIXTURE CARRIER, Passive* | PcbFb |
