Quad Site, V Band Pedestal Support

Cassini Quad Site, Intest Compatible

Part Number: WIMFGMYA

In Stock: 0

Estimated Restocking Time: 12+ weeks (Limited)

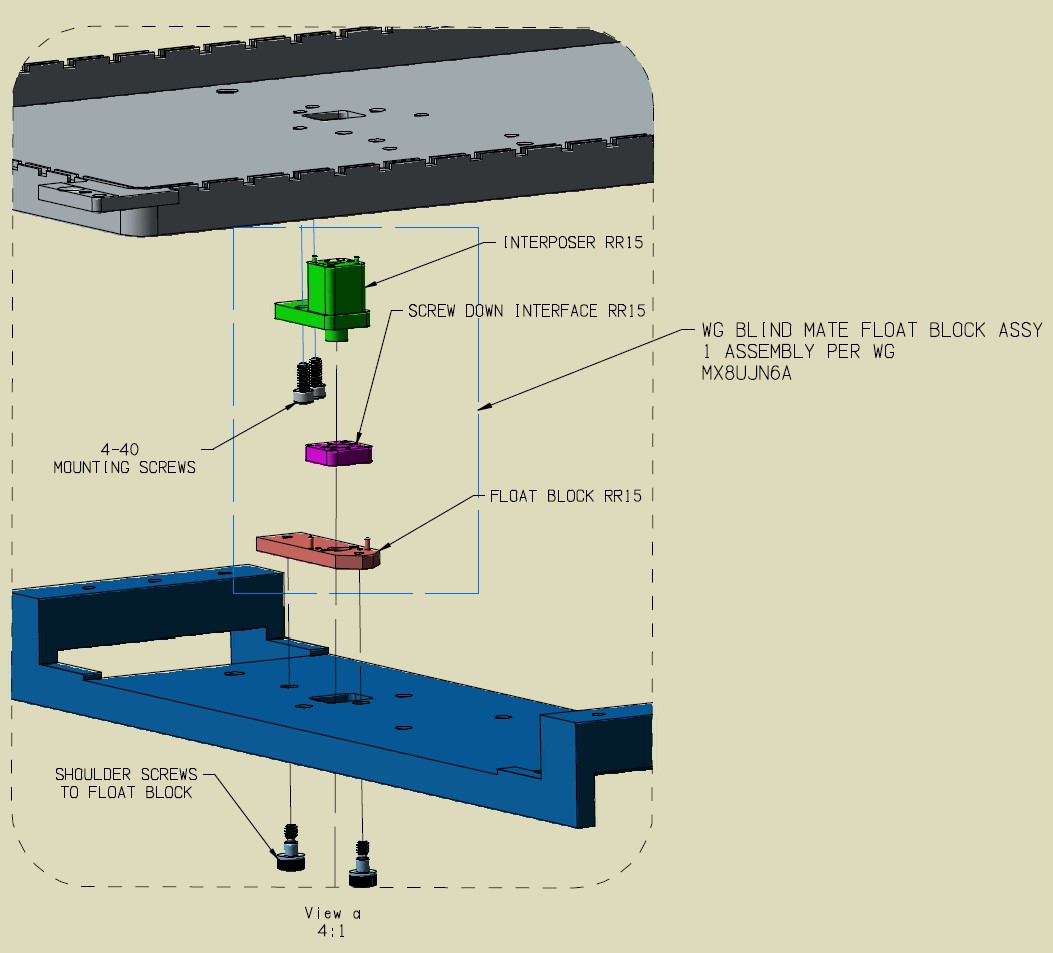

Supports the V-Band Launches to the DIB via a blind mate mount.
Requires WIMFGMZA V Band Float Launch Support Bar
Requires Open Pod Fixture and Large DIB Fixture Top Plate Assembly, Compatible with Intest Designs

MMWLSE6A.pdfMMWLSE6A.pdf


Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1S9M6JH3W1A30SCREW, FLAT PHIL , 4-40 X 3/8", 100° SSHrdwr
2EMA662W1A36Conductive Elastomer round .071Dia for FixturesMchCmp
3DMGZ88J1A1Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
4S3MH3FNL1A14SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr

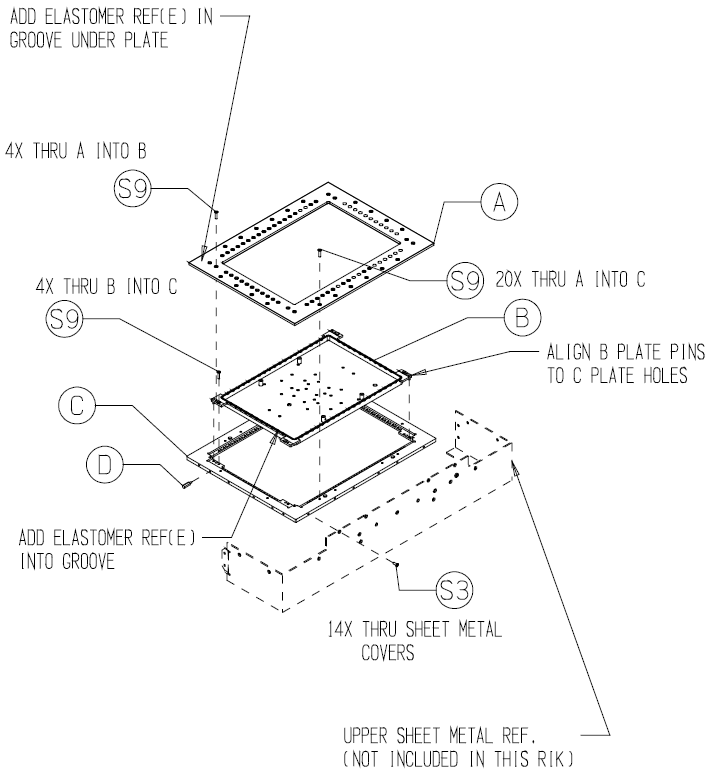

5-MMWLSE6A1ASSY INSTRUCTIONS RIK0152BDcmnt
6BW1MFEYGC1support insert QUAD 13.5X10.5*MchFb
7CW1MFEYHE1ALPHANUMERIC TOP FIX INSERT QUAD 13.5X10.5MchFb
8AW1MFFAKE1CLAMP INSERT THIN 13.5X10.5MchFb
BOM Refreshed:05/11/2020 06:23 PM
