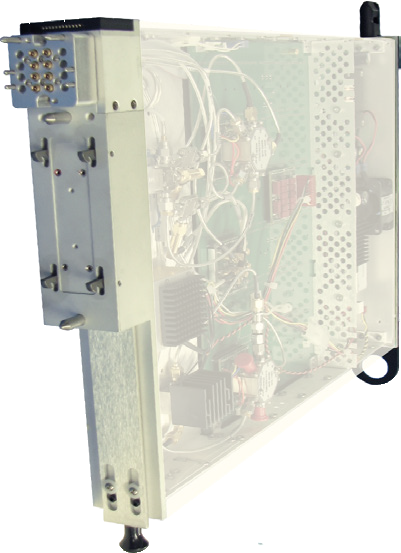

Test Set, 2-50 GHz, SSMP#12, 2 Port TIM

Q Band, 5G NR Devices

Part Number: RI8607A

Estimated Restocking Time: Contact Factory

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

50 GHz Extension for 25 GHz systems

The RI8607 2-50 GHz Test Instrument Module (TIM) is a single slot module that extends 25 GHz SRC and Receiver to 50 GHz. Each TIM provides two source/receive ports. The TIM requires two 25GHz sources (RF and LO) be configured in the same test system. Full access to 25 GHz resources is maintained via pass through paths provided in the TIM. Calibration is available at the TIM and Fixture level.

Requires

Product Catalog
RIK321ABlock, 4- 50 GHz RFFixture Blocks



RI8607A.pdfRI8607A.pdf
