LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/09/2021. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RI8535B

Expiration Reason: Assume 80 pin in base model (otherwise, specify -40 or -120)

Aditional replacements may be found by searching for RI8535B (change the REV letter) or 80 Pin FSPU Digital TIM.

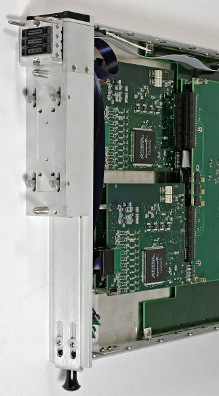

80 Pin FSPU Digital TIM

Multi-site digital testing

Part Number: RI8535B-80

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

2 each 3.4A/7V pulsed VI, Device Power Supplies,4 ea, 350ma 10v four quadrant Vis, 16 relay matrix ports, low current force and measure (1 na), 8 slow (2.5MHz) 10 v digital lines with SPI/I2C.


Related Documents:

User account required Create new account


Subject
Product Docs
Digital TIM Timing Diagrams
Product Docs
Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects

Product Docs
Cassini 120 Pin FSPU Digital TIM Product Description
