Matrix Fixture, Side Plate, Bench-top

Interface Cassini Top Plate with Bench Equipment for Engineering and Cal

Part Number: RIK0233A

In Stock: 0

Estimated Restocking Time: Contact Factory

$1,000
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

2nd image: Shown with Top Plate Installed (RIK0214B)

3rd image: Shown with OPTIONAL "Soft Dock Resource" Side and Rear Plates installed and populated. Opposite side plate is not installed.



4th image: Shown 90° orientation

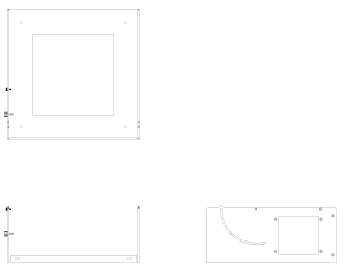

5th image: Top, Front, Side Views

Bench-top Sides for Matrix TOP Plate (RIK0214B).

Optional Soft Dock Resource Plates can be added to provide easy to reach bench connections to a standard Matrix TOP Plate (instead of connecting bench equipment directly to the Inserts).

This is NOT suitable for using CASSINI with Engineering Boards or Soft Dock Probers. Use the standard Fixture layers with Soft Dock Resource Plates instead.

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1MAZW9J1A2SCREW, SHOULDER, 4-40 X .125DIA X .125LGHrdwr
2MH3FNL1A2SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
3MP8M566A2washer brass #4 ID 9/32 OD .01-.04 thickHrdwr
4MP8M5C6A2thumb screw 3/8 hex head 4-40 x .5LMchCmp
5W1MFFHUA1BENCHTOP FIXTURE HOUSING PLATEMchFb
