LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/15/2011.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: Custom; contact factory.
Expiration Reason: Each TIM Configuration requires a custom Diag Kit, ask support for the Company Name and configuration type to get the correct model number.
Aditional replacements may be found by searching for RIK0151 (change the REV letter) or Cassini 16-Slot Diag/Cal Interface Kit.
Includes Transit Case plus Cassini 16 Bottom Plate and a 16" conformable RF cable. 4 RF Blocks, Fixture Block, and one DC Cal Block included. Additional blocks, cables may be necessary depending on the configuration of TIMs.
Customer must provide TIM model and slot number to describe block and cable locations.

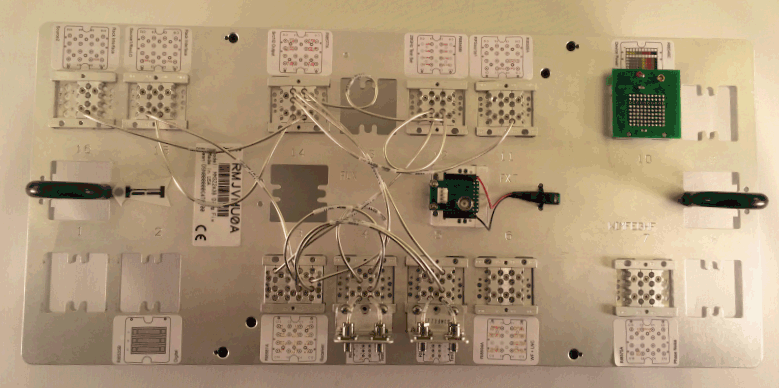

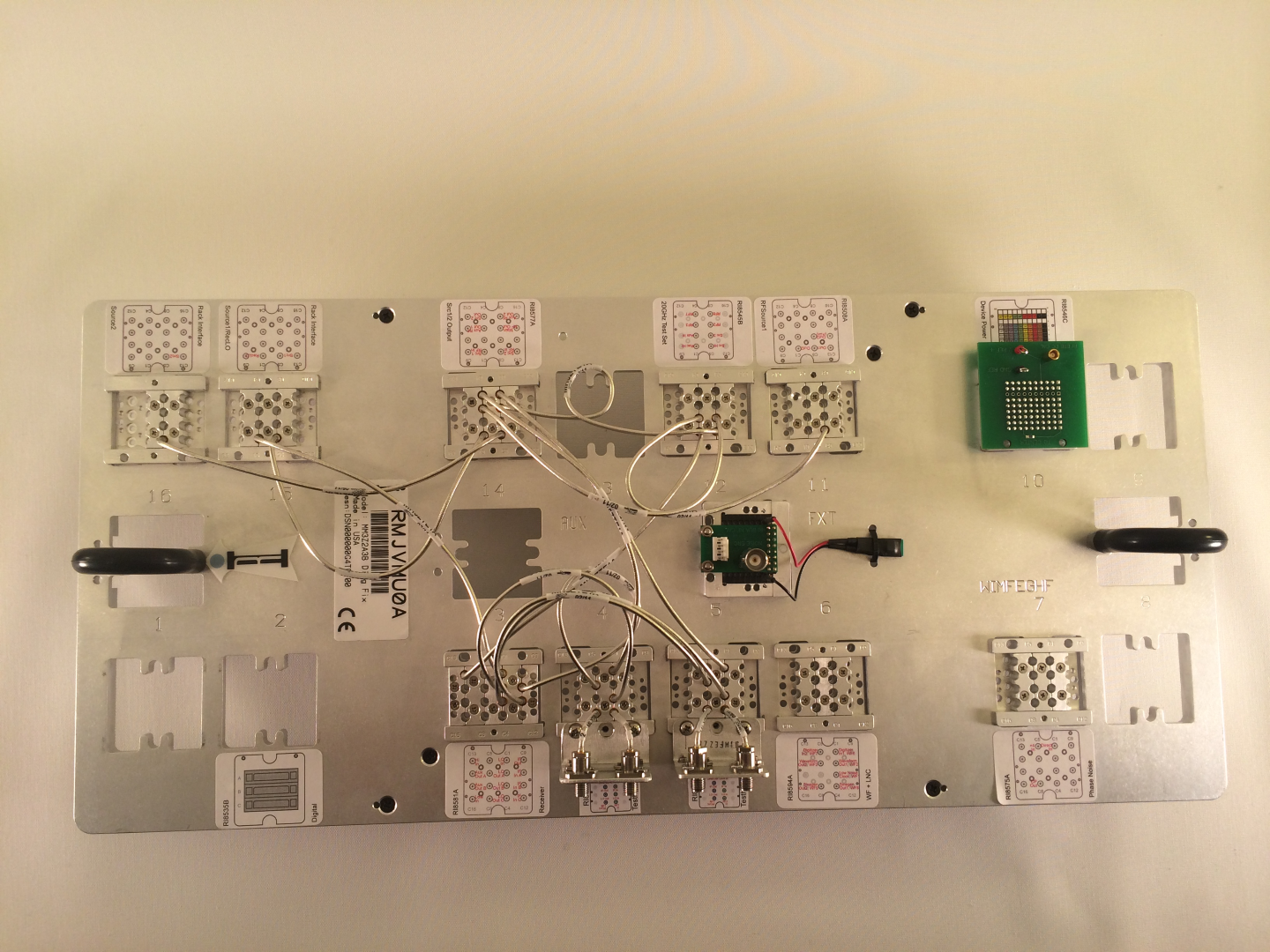

Fully Assembled (note: includes items not included in this kit)

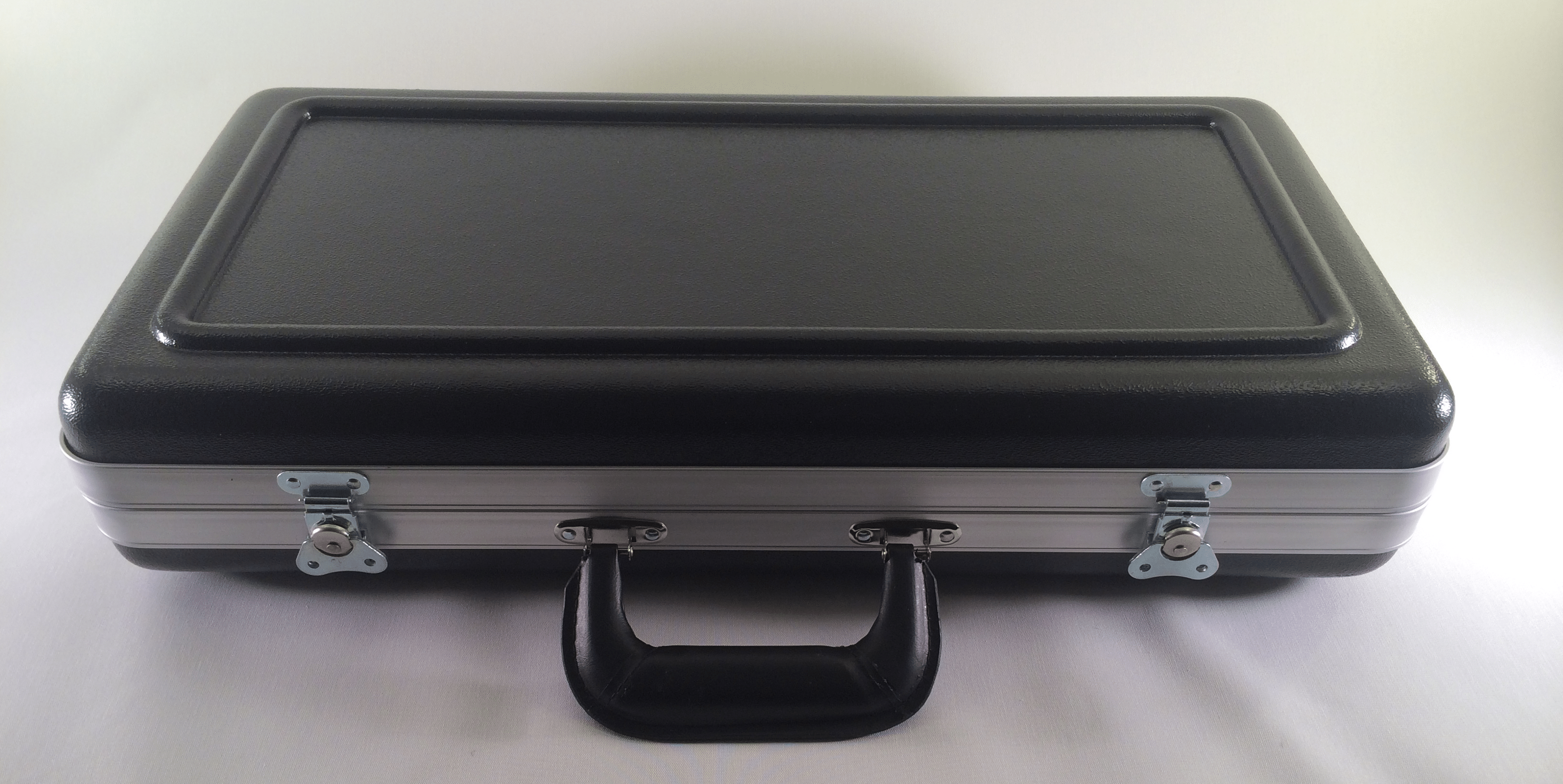

Transit Case
RIFL Block RIK0166A

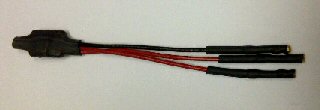

SerialID chip (ESN) - RIK0158A
Includes Transit Case plus Cassini 16 Bottom Plate and a 16" conformable RF cable
Related Documents:
Fixture Hardware Design Decision Tree | http://roos.com/docs/DFES-8DX2M2?Open |
Assembly Instructions for RIK0151A |
Full assembly required. See individual RIK assembly instructions. Place blocks in correct T-locations.
Contact Support for assembly instructions.
Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
---|---|---|---|---|---|---|
1 | M5PJFN1A | 1 | Coax,Confrm,SMAM-SMAM 5" | Coax | ||
2 | M5R1BE1A | 1 | TERMINATION, .5W,50 OHMS | RF | ||
3 | M6GSFV1A | 1 | ATTN,20dB,2W | RF | ||
4 | M6LPX11B | 2 | Vial W/Cap, 20ml | MchCmp | ||
5 | J | M6ZXSJ1A | 40 | SCREW, FLAT PHIL, 2-56 X 3/8", SS | Hrdwr | |
6 | 'RI DIAG KIT' | M75VBJ1A | 1 | LABEL RI LOGO 2 X 2.8 | MchFb | |
7 | M8YFF61A | 4 | SCREW, FLAT PHIL, M4 x 8 SS | Hrdwr | ||
8 | M93E3R1A | 1 | Cable tie, 4", natural | MchCmp | ||
9 | MBH0VH1B | 4 | Adapter,#12F-SMAF Custom | Coax | ||
10 | D | MC7SVE1B | 18 | SCREW, TRUSS PHIL, 4-40 X 3/16" SS W/PATCHLOCK | Hrdwr | |
11 | MG3ZCK1A | 2 | MISUMI RUBBER HANDLE 53mm Wide Mounting | MchCmp | ||
12 | MH5ZTE1C | 6 | Coax,Confrm,#12F-#12F 8" Coax Cable Assy Longer PKZ* | Coax | ||
13 | MHL8MH1A | 1 | Adhesive, Loctite, 222MS Single pack, 0.5ml | MchCmp | ||
14 | MJUMNF4B | 1 | Matrix Fixture, Serial Number (SN) Harness, 4 wire* | CblMsc | ||
15 | I | MK3VSY1A | 6 | SCREW FLAT PHIL 6-32 x 5/16, 100°, ss | Hrdwr | |
16 | MM00VJ6B | 1 | Case transit diagnostic cassini 16 | MscPrAss | ||
17 | MMKECE1A | 1 | Labels, TIM Fixture Interface Plate | MchCmp | ||
18 | MMXT225A | 1 | Diagnostic Fixture Connector Block* | MscAssy | ||
19 | E | RIK0249A | 1 | RI8546 DC Cal/Diag Block* | CstmrKt | |
20 | F | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | |
21 | B | W1MFCXGE | 4 | FOOT, FIXTURE MFIX* | MchFb | |
22 | C | W1MFECGA | 2 | Actuator Fixture Switch, Cassini* | MchFb | |
23 | H | W1MFEGHK | 1 | MOD FIX BOT 16 | MchFb | |
24 | W1MFEJWB | 2 | Coax,Confrm,085,#12F special-#12F special 8"* | Coax | ||
25 | W1MFEJXE | 2 | Coax,Confrm,.085,#12F special-SMAM 8"* | Coax | ||
26 | A | W1MFEZAG | 4 | S3 MODIFIED CAL w/ Screw Holes hyp mfix | MchFb | |
27 | M | W1MFEZBA | 4 | BLOCK CENTER S3 CAL | MchFb | |
28 | N | W1MFEZCA | 8 | BLOCK MID S3 CAL | MchFb | |
29 | O | W1MFEZEA | 8 | BLOCK SIDE S3 CAL | MchFb |
