This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/24/2015.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RI8535A
Expiration Reason: TIM provides better performance
Aditional replacements may be found by searching for RIK0127 (change the REV letter) or High Speed Digital Scan Module Kit.
High Speed Digital Scan Module Kit
80 Mbit/sec digital signal to DUT, Does not work with RIFL based Carriers (Cassini 8 or RI7100A only).
Part Number: RIK0127A
In Stock: 0
Estimated Restocking Time: 12+ weeks (limited)
Improved physical interfaces for easier integration than RIK0017A. Adds Scan and 16 Mega Vector memory depth.
Provides High Speed Digital signal to the DUT from the fixture.

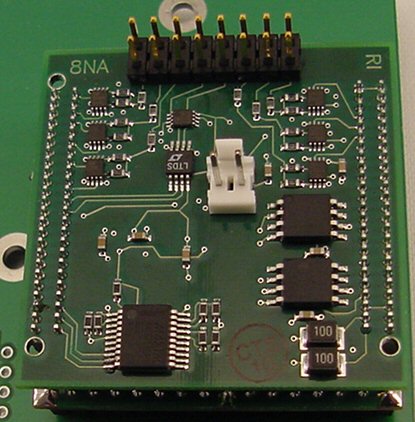

High Speed Scan Module Kit (1 Module)
2 Sets of 4 I/O Pins: DB 1 to 4 and DB 5 to 8
Von and Voff Set Range: 0 to 4V
Vcompare: 0 to 4V
Serial Control Supports: Data Read, Data Write, Clock, Strobe
Serial Write: Up to 80 Mbits/sec.
Scan Support: Yes
Parametric Measure: Yes

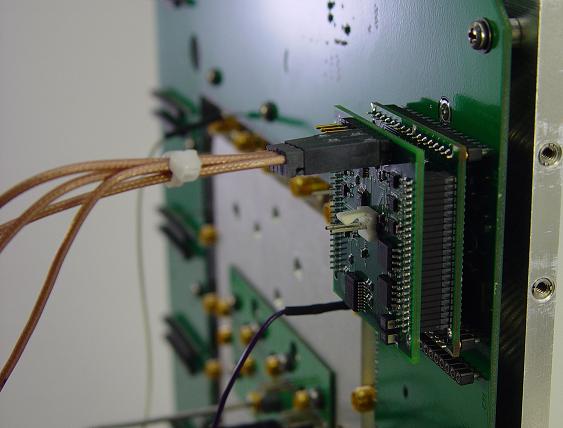

Must be installed in "M1" or "M5" Active Carrier module location.
Does not work with RIFL based Carriers on Cassin 16, Use only with Cassini 8 (RIK0160A) or RI7100A (RIK0084A) "active" carrier only.
Related Documents:
See also...
 | Subject | Topic(s) | Categories | Last Modified |
 | RIK0127A - High Speed Digital Scan Module | Fixture | Fixtures,Presentations,Digital | 07/02 |
| Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | ANJ9ST5A | 1 | QUALITY ASSURANCE PROCESS - Search Product Docs by "Fixture Module Test" RIK P# for Instructions | Dcmnt | ||
| 2 | G8XYWG2A | 1 | Box antistatic, 7x5x2.5 | Sppls | ||

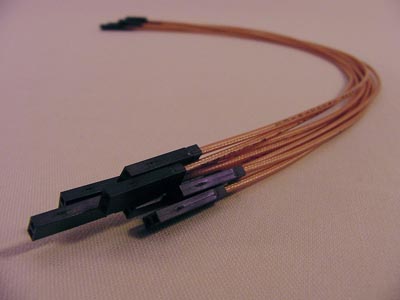

| 3 | MGY3681A | 8 | Coax, Flex, RG178, 2 Pin MTA-2 Pin MTA, 16" | Coax | ||
| 4 | Y2000H1A | 1 | Fixture Digital 100MTs* | MdlGrp |
